A 7-inch Basic Panel with touch and key operation, 800 × 480 color display and PROFIBUS communication.

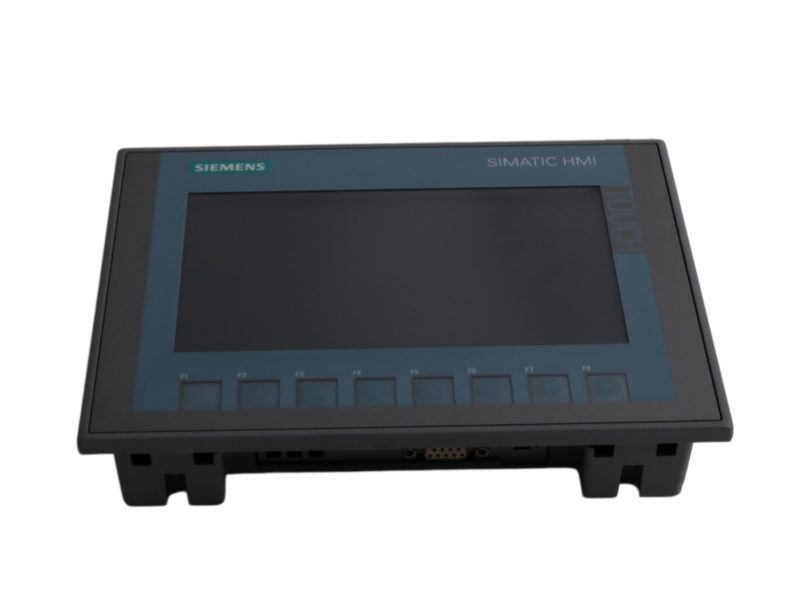

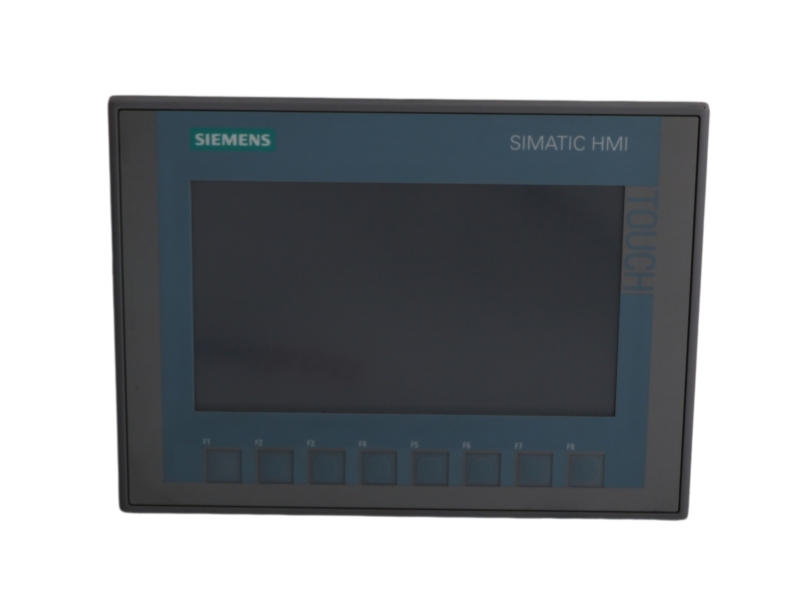

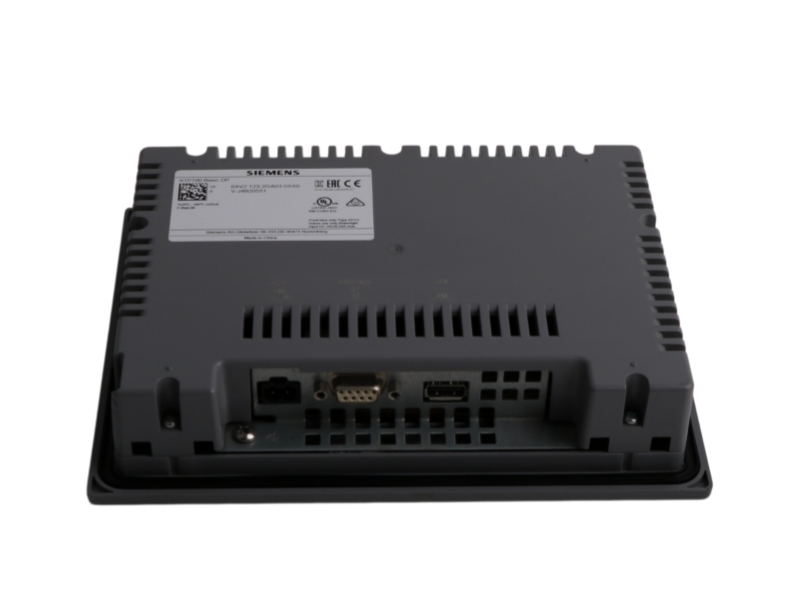

Siemens 6AV2123-2GA03-0AX0 is a SIMATIC HMI KTP700 Basic DP operator panel for machine-level visualization and control. Its 7-inch widescreen TFT combines analog-resistive touch input with physical keys and displays 65,536 colors at 800 × 480 pixels.
The panel communicates through PROFIBUS and is engineered with WinCC Basic V13 or STEP 7 Basic V13. It is suited to compact operator stations where alarms, process values and machine commands must be available from a dedicated local interface.
| Manufacturer | Siemens |
| Product family | SIMATIC HMI Basic Panels, 2nd Generation |
| Lifecycle | PM300: Active Product |
| Country of origin | Germany |
| Parameter | Official specification |
| Article number | 6AV2123-2GA03-0AX0 |
| Product designation | KTP700 Basic DP |
| Display | 7-inch TFT widescreen |
| Resolution | 800 × 480 pixels |
| Colors | 65,536 |
| Operator input | Analog-resistive touch screen and keys |
| Communication | PROFIBUS |
| Engineering software | WinCC Basic V13 / STEP 7 Basic V13 |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 to 28.8 V DC |
| Rated current | 230 mA |
| Backlight | LED; MTBF 20,000 h at 25 °C; dimmable |
| Mounting orientation | Landscape or portrait |
| Maximum inclination | 35° |
| Net weight | 0.988 kg |
| Package dimensions | 20.5 × 27.9 × 7.5 cm |
Provide local start, stop, setpoint and status interaction for compact machines and production cells.
Display process values, alarms and operator guidance through a dedicated 7-inch interface.
Support exact-code maintenance of PROFIBUS-based KTP700 Basic installations after project and cutout checks.
Siemens lists 6AV2123-2GA03-0AX0 as PM300: Active Product. Availability should still be confirmed for the required quantity, destination and project timing.
It is a Siemens SIMATIC HMI KTP700 Basic DP operator panel with a 7-inch touch-and-key interface.
The 7-inch widescreen display has 800 × 480 pixel resolution and supports 65,536 colors.
This model communicates through PROFIBUS.
Siemens specifies WinCC Basic V13 or STEP 7 Basic V13 for engineering.
Back up the HMI project, recipes and machine-specific data, then confirm power, cutout and PROFIBUS settings.
Send the exact model, quantity, hardware status and destination for stock verification and an application-focused compatibility check.
Our service team supports identification, compatibility review, sourcing coordination, inspection planning and global delivery for automation maintenance projects.
We compare the complete Siemens article number, installed HMI context, hardware status, PROFIBUS network, WinCC project requirement and application notes supplied with the inquiry. This reduces the risk of receiving a visually similar but electrically or functionally different module.
Before shipment, the order scope can be aligned around module condition, label evidence, connector areas, packaging and included accessories. Photo or nameplate evidence may be requested when it materially helps confirm the exact unit.
Our commercial team coordinates destination, quantity, transport preference and documentation needs for worldwide deliveries. Packing arrangements are selected to protect sensitive automation hardware through warehouse handling and international transit.
Customers receive a clear request for the technical information needed to evaluate fit, rather than a generic model-only response. This supports maintenance teams that must compare installed hardware, engineering records and plant shutdown schedules.
| Stage | How it helps your order |
|---|---|
| 1. Inquiry | Send 6AV2123-2GA03-0AX0, quantity, destination and available nameplate or installed-system details. |
| 2. Review | We check the exact MLFB, requested condition, KTP700 Basic DP fit, panel cutout, 24 V supply and PROFIBUS project needs. |
| 3. Confirmation | Availability, lead time, inspection scope, warranty terms and delivery plan are confirmed before order processing. |
| 4. Dispatch | Protective packing and shipment documents are coordinated for the destination and chosen transport method. |
Share the exact quantity, installed HMI, PROFIBUS and engineering configuration and delivery destination for an availability and compatibility review.
