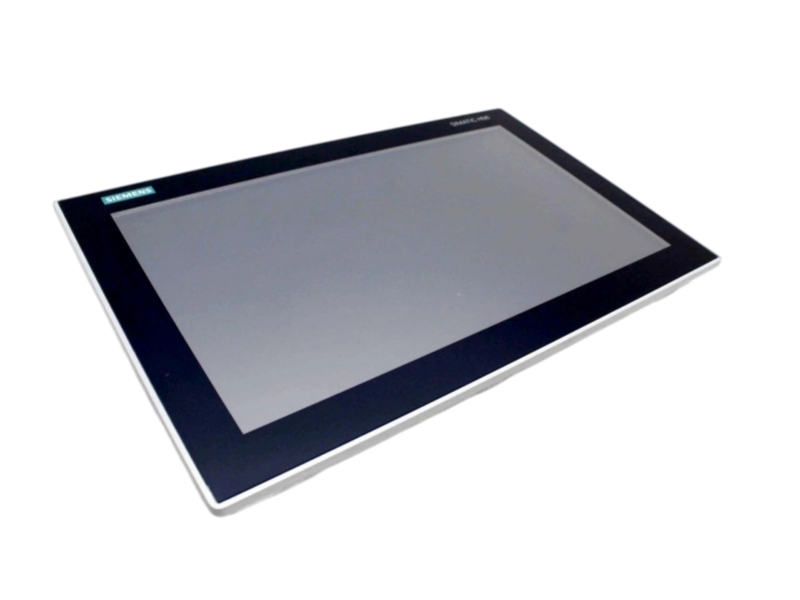

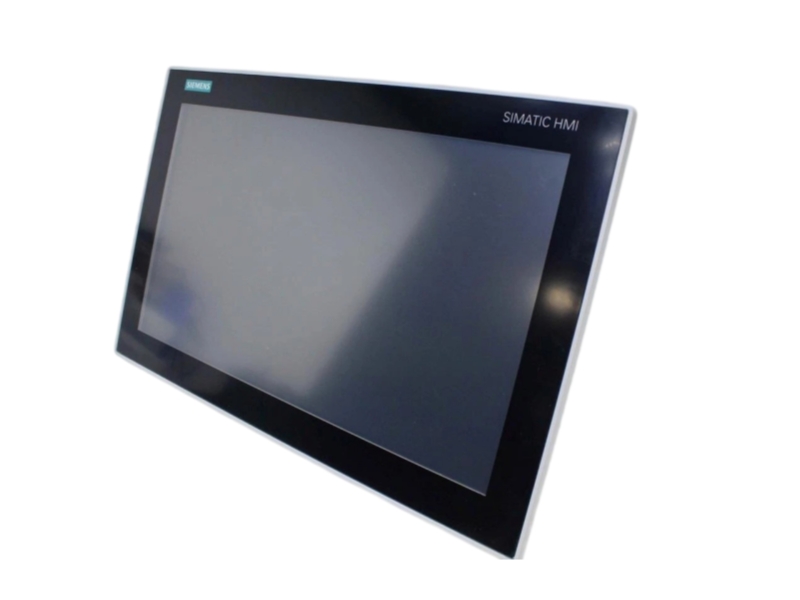

Siemens 6AV7230-0DA20-0BA0 is a SIMATIC IPC377E 15-inch touch panel PC designed for built-in industrial operator and computing applications. The official product record identifies a Celeron N3160 processor, 4 GB RAM, a 1 TB hard disk and a 24 V DC supply. Its connections include DisplayPort, VGA, two Gigabit Ethernet ports, USB 3.0 and USB 2.0 ports, four serial COM interfaces, mPCIe and mSATA expansion. The listed configuration is supplied without an operating system. For replacement, verify the complete suffix, panel cutout, storage image, software licensing, interface allocation, power connection and application migration requirements.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | Product Cancellation |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6AV7230-0DA20-0BA0 |
| Manufacturer Order Code | 6AV7230-0DA20-0BA0 |
| Product Type | SIMATIC IPC377E Panel PC |
| Display | 15-inch touch display |
| Processor | Intel Celeron N3160, 4 cores / 4 threads |
| Memory | 4 GB RAM |
| Storage | 1 TB HDD |
| Display Interfaces | DisplayPort and VGA |
| Network | 2 × Gigabit Ethernet RJ45 |
| USB | 2 × USB 3.0 and 2 × USB 2.0 |
| Serial Interfaces | 4 × COM |
| Expansion | 1 × mPCIe and 1 × mSATA |
| Operating System | No operating system |
| Supply Voltage | 24 V DC |
| Mounting | Built-in |
| Net Weight | 6.68 kg |
| Country of Origin | GERMANY |
| System fit | Industrial panel-PC applications requiring a 15-inch touch interface |
| Typical applications | Machine visualization, local data handling and built-in operator stations |
| Software context | Customer-installed operating system and application image must match the machine project |
| Replacement use | Maintenance replacement after cutout, interface, storage and software review |
Siemens lists 6AV7230-0DA20-0BA0 with Product Cancellation and identifies a SIMATIC IPC377G successor family. A successor is not automatically a drop-in replacement; cutout, interfaces, software and project migration must be reviewed.
It is a Siemens SIMATIC IPC377E built-in panel PC with a 15-inch touch display.
The official record identifies an Intel Celeron N3160 processor and 4 GB RAM.
No. The official configuration is listed without an operating system.

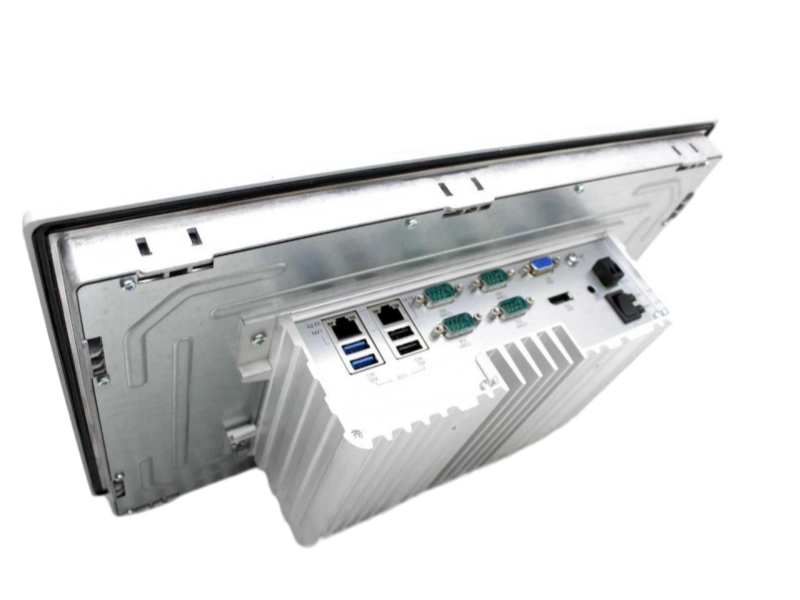

Review DisplayPort, VGA, two Gigabit Ethernet ports, USB ports, four COM interfaces and installed expansion.
Siemens lists the product with Product Cancellation and points to the IPC377G successor family.
Not necessarily. Mechanical fit, interfaces, storage image, operating system and application migration must be checked.
