Siemens 6AV6545-0AG10-0AX0 is a SIMATIC MP 270B Touch multi panel for operator control and visualization in machine and plant automation. Official Siemens documentation for the 10-inch touch variant identifies a 10.4-inch TFT display with VGA resolution, touch operation, Windows CE and integrated communication options for SIMATIC environments. The panel supports project storage and communication through serial, MPI/PROFIBUS DP, Ethernet and USB interfaces. For replacement work, buyers should verify the complete suffix, panel cutout, project backup, ProTool or WinCC flexible project compatibility, communication wiring and the condition of the front membrane and display.
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6AV6545-0AG10-0AX0 |
| Manufacturer Order Code | 6AV6545-0AG10-0AX0 |
| Product Type | SIMATIC MP 270B Touch Multi Panel |
| Display | 10.4-inch TFT touch display |
| Resolution | 640 × 480 pixels (VGA) |
| Colors | 256 |
| Operating System | Windows CE |
| Configuration Memory | 4 MB |
| Interfaces | RS232; RS422/RS485; MPI/PROFIBUS DP; Ethernet 10/100; USB |
| Country of Origin | GERMANY |
| System fit | SIMATIC HMI operator-control and visualization applications |
| Typical applications | Machine operation, process monitoring, alarm display and operator input |
| Engineering context | Projects created for the MP 270B platform using the supported Siemens engineering environment |
| Replacement use | Maintenance replacement after project, cutout and interface verification |
An exact current lifecycle phrase for 6AV6545-0AG10-0AX0 was not presented in the official material reviewed, so no lifecycle status is assigned on this page. Procurement should be based on the complete order code and the installed project and hardware configuration.

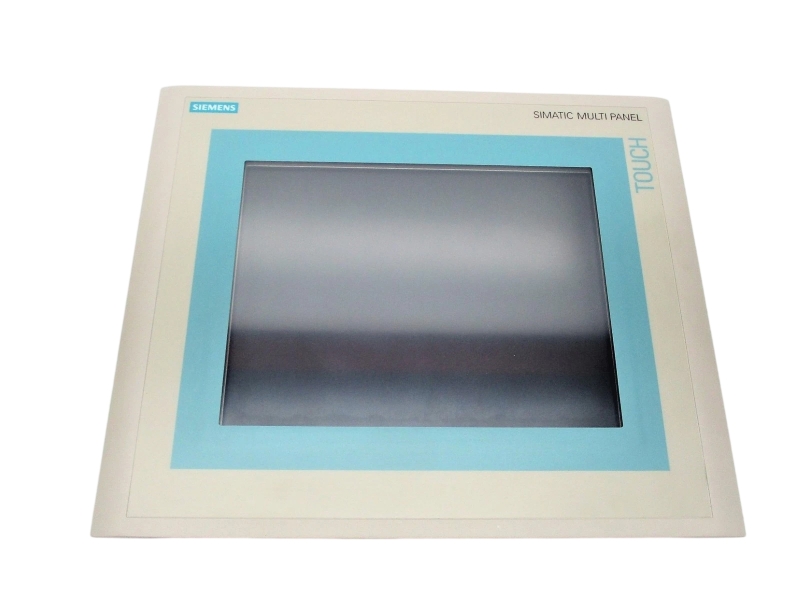

It is a Siemens SIMATIC MP 270B Touch multi panel with a 10.4-inch touch display for operator control and visualization.
Official documentation for this variant identifies a 10.4-inch TFT display with 640 × 480 VGA resolution and 256 colors.

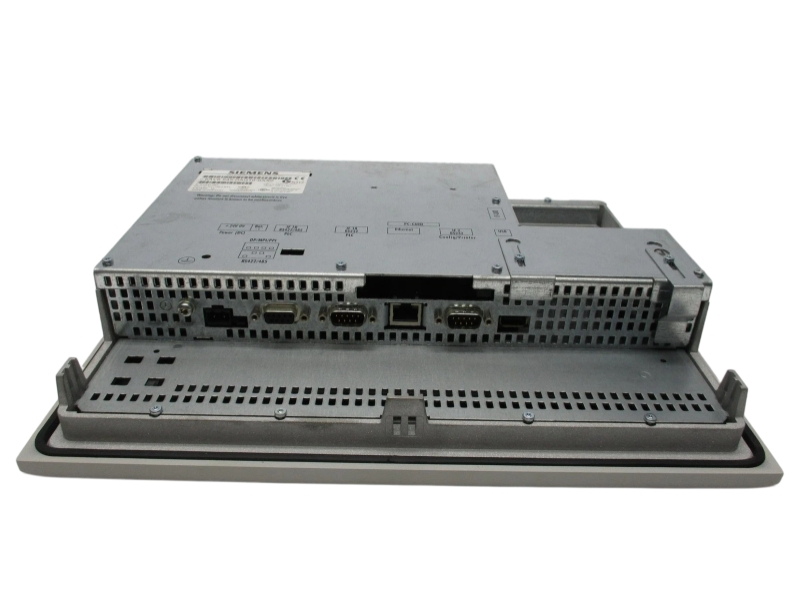

Verify the serial, MPI/PROFIBUS DP, Ethernet and USB connections used by the installed application.
Check the full suffix, panel cutout, mounting, 24 V DC supply, project backup and engineering-software compatibility.
No lifecycle statement is made here because an exact current manufacturer lifecycle phrase was not available in the reviewed official material.
Yes. Front-panel, rear-label, connector and packaging photos can be reviewed before shipment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A documented workflow for identification, inspection, packaging, logistics and after-sales communication.
| Stage | What We Review | Buyer Evidence |
|---|---|---|
| 1. Model verification | Complete model, suffix and manufacturer order code. | Inquiry record and label comparison. |
| 2. Condition confirmation | Requested condition, packaging and visible state. | Product and packaging photographs when available. |
| 3. Compatibility review | Interfaces, electrical requirements, firmware and system context. | Written checklist for engineering review. |
| 4. Photo confirmation | Full unit, nameplate, connectors and accessories. | Product and label photo confirmation. |
| 5. Protective packaging | Anti-static, cushioning and enclosure protection as applicable. | Packing method coordinated for the shipment. |
| 6. Worldwide shipping | Destination, carrier options and handling requirements. | Shipping option review without an unconfirmed delivery promise. |
| 7. Shipment tracking | Dispatch information and tracking availability. | Tracking details after carrier acceptance. |
| 8. Customs documentation | Commercial documents and destination requirements. | Prepared shipping documentation. |
| 9. Warranty terms | Scope, duration and claim conditions. | Written warranty terms. |
| 10. Return authorization | Reported issue, documentation and return eligibility. | Return authorization process before shipment back. |
| 11. After-sales response | Installation feedback, logistics questions and documented claims. | Coordinated after-sales communication. |
The team compares the complete order code and suffix with the inquiry, reviews visible condition and coordinates readable label and connector photographs when available.
Protective materials, handling requirements, carrier options, shipment tracking and customs documents are coordinated for the confirmed destination.
Written warranty terms, return authorization steps and after-sales response provide a defined communication path for procurement and engineering teams.
Check whether the supplier preserves the complete part number, distinguishes commercial claims from manufacturer facts and provides clear inspection, warranty, shipping and return terms.
Request condition evidence, readable label photos, a written quotation, warranty terms, shipping scope and confirmation that the offered order code exactly matches the inquiry.
Review interfaces, supply, connectors, firmware, configuration, approvals and the installed-system context. Similar appearance does not prove compatibility.
Risk signals include shortened model numbers, reused photos without readable labels, unsupported compatibility promises, unclear condition, missing warranty language and pressure to accept an unverified substitute.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
