A model-specific panel-computer profile for installed 12-inch touch applications and maintenance replacement planning.
Verify the complete suffix, processor, memory, storage, display, ports, operating-system plan, cutout and readable product label.

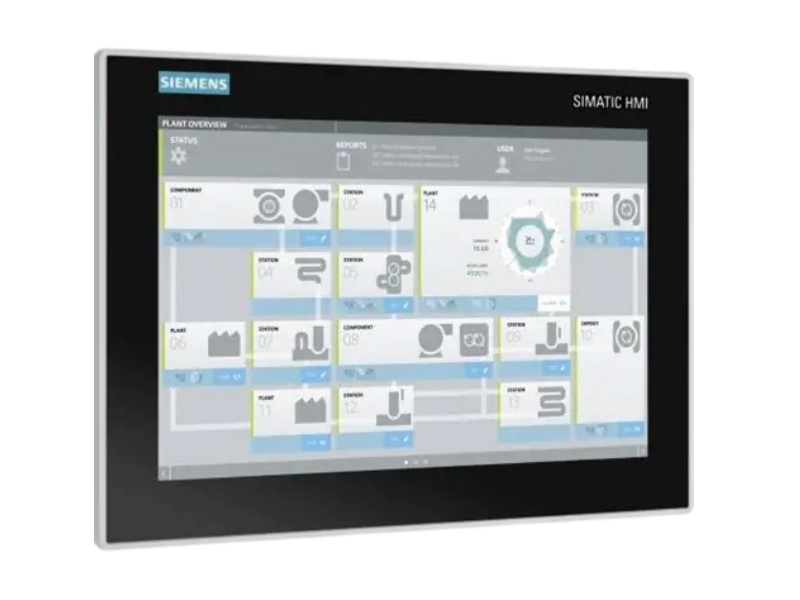

Siemens 6AV7230-0CA20-0BA0 is a SIMATIC IPC377E basic panel PC with a 12-inch touch display. Siemens Industry Mall identifies a Celeron N3160 processor, 4 GB RAM, 1 TB hard disk, DisplayPort, VGA, dual Gigabit Ethernet, USB and serial COM interfaces. The configured article is supplied without an operating system and uses 24 V DC power for built-in installation. Procurement teams should verify the full suffix, panel cutout, processor and storage configuration, interface count, software image, license requirements, mounting depth, power wiring and peripheral compatibility before approving a replacement.
| Commercial Item | Status |
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; cancelled since 2022-04-25 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
| Manufacturer | Siemens |
| Complete Part Number | 6AV7230-0CA20-0BA0 |
| Product Type | SIMATIC IPC377E basic panel PC |
| Display | 12-inch touch |
| Processor | Celeron N3160, 4 cores / 4 threads |
| Memory | 4 GB RAM |
| Storage | 1 TB HDD |
| Display Interfaces | 1 DisplayPort and 1 VGA |
| Ethernet | 2 × 10/100/1000 Mbit/s RJ45 |
| USB | 2 × USB 3.0 and 2 × USB 2.0 |
| Serial Interfaces | 4 × COM |
| Expansion | 1 × mPCIe and 1 × mSATA |
| Operating System | Without operating system |
| Supply Voltage | 24 V DC |
| Mounting | Built-in unit |
| Net Weight | 5.360 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
| Installed operator workstation | Match the panel cutout, mounting depth, touch operation and software image. |
| Industrial visualization terminal | Review graphics interfaces, Ethernet, USB, serial peripherals and licenses. |
| Maintenance panel-PC replacement | Confirm processor, memory, storage, operating-system plan and project backup. |
| Machine or line supervision | Verify 24 V DC wiring, environmental conditions and connected devices. |
Siemens Industry Mall lists 6AV7230-0CA20-0BA0 as PM410: Product cancellation, cancelled since 2022-04-25, and identifies the article as a spare part.
It identifies the Siemens SIMATIC IPC377E 12-inch touch panel PC configuration.
Siemens lists a Celeron N3160 processor, 4 GB RAM and a 1 TB hard disk for this complete order code.
No. Siemens Industry Mall lists this configured article without an operating system.
Siemens Industry Mall lists PM410: Product cancellation and a cancellation date of 2022-04-25.
Verify the suffix, cutout, interfaces, computing configuration, operating-system image, licenses, power and label evidence.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A documented handoff from panel-PC identity and software review to protected shipment and transaction follow-up.
The complete suffix, label details and visible condition are checked against the inquiry.
Compare panel dimensions, computing configuration, interfaces, 24 V DC power and operating-system requirements.
Protective packaging, shipping documents and tracking are coordinated after order review.
| Checkpoint | How It Is Handled |
| Model and suffix verification | Match 6AV7230-0CA20-0BA0 against the inquiry, product label and packaging. |
| Condition confirmation | Review housing, interfaces, contacts, markings and visible condition. |
| Technical compatibility review | Compare panel dimensions, computing configuration, interfaces, 24 V DC power and operating-system requirements. |
| Product and label photo confirmation | Request readable front, side, interface, nameplate and packaging photographs. |
| Protective packaging | Protect connectors, housing and electronic assemblies against impact, moisture and contamination. |
| Worldwide shipping | Coordinate available options after destination, quantity and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance. |
| Customs documentation | Prepare transaction documents for the confirmed destination and shipment. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before goods are sent back. |
| After-sales response | Use order records, shipment data, technical evidence and photographs to coordinate follow-up. |
Check whether the supplier preserves the complete part number, requests readable label evidence, separates commercial statements from manufacturer data and supplies written transaction terms.
Risk signals include shortened order codes, parameters copied from another suffix, unsupported interchangeability claims, unclear condition statements and reluctance to provide product or packaging evidence.
Align the exact product identity, technical compatibility, inspection scope, packaging, shipping documents, written warranty and return authorization process.
