A procurement profile for documented display, memory, engineering software and cancelled-product replacement checks.

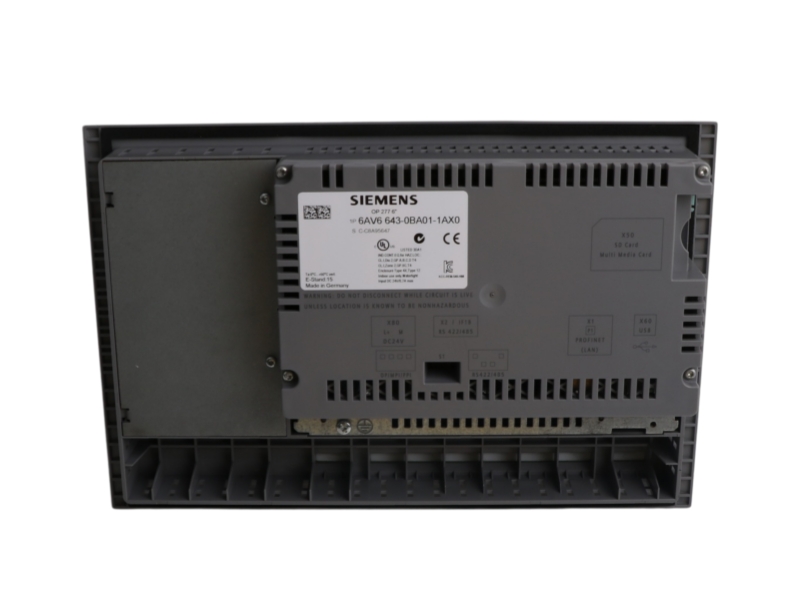

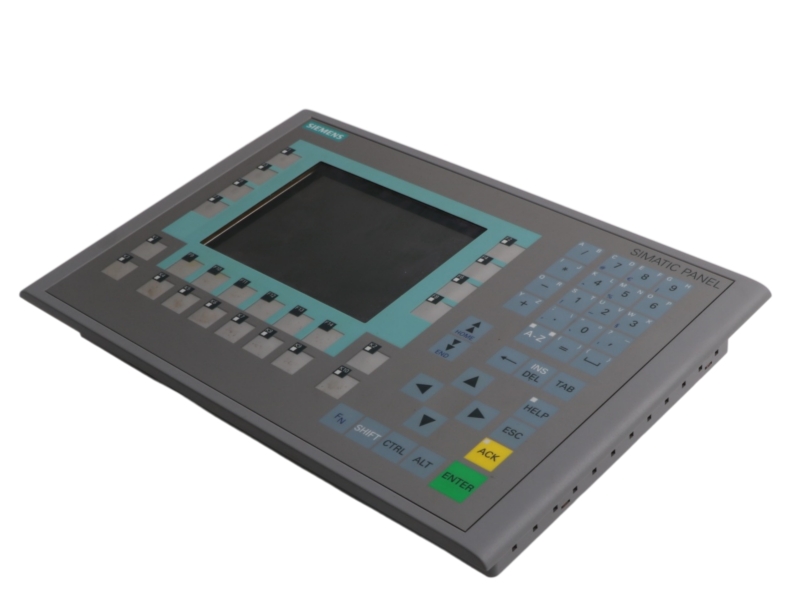

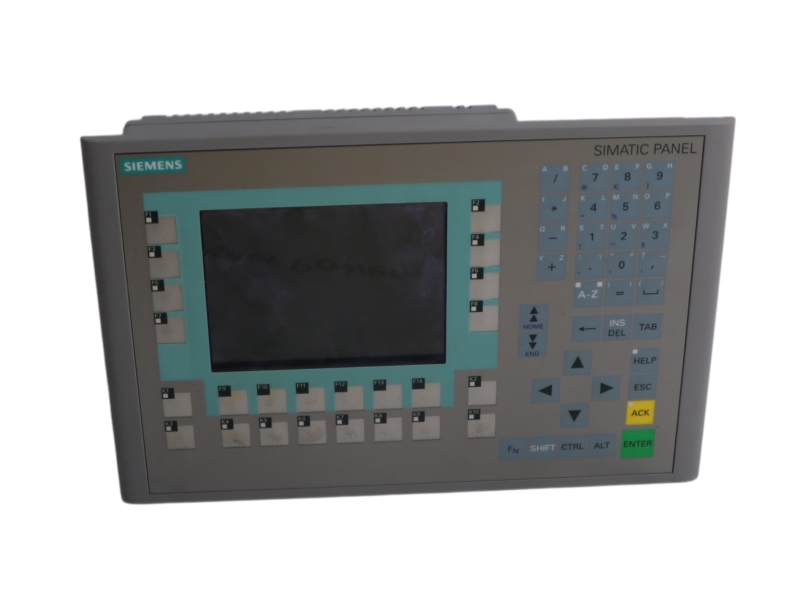

Siemens 6AV6643-0BA01-1AX0 is a SIMATIC OP 277 6-inch operator panel with a 5.7-inch TFT display and 4 MB configuration memory. Siemens identifies the unit as a spare part and specifies configuration with WinCC flexible 2005 Standard SP1. The official lifecycle entry is PM410: Product cancellation, cancelled since October 1, 2021. Replacement planning should verify the complete suffix, hardware version, saved HMI project, engineering-software compatibility, connected controller, communication interfaces, power supply, panel cutout and readable product labels. Similar OP 277 variants should not be assumed interchangeable solely from the front-panel appearance.
| Commercial Item | Status |
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; cancelled since 2021-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
| Manufacturer | Siemens |
| Complete Part Number | 6AV6643-0BA01-1AX0 |
| Product Type | SIMATIC OP 277 6-inch operator panel |
| Display | 5.7-inch TFT |
| Configuration Memory | 4 MB |
| Engineering Software | WinCC flexible 2005 Standard SP1 |
| Official Supply Role | Spare part |
| Net Weight | 1.899 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
| Machine operator interface | Match the HMI project, controller connection, alarms and operating workflow. |
| Installed OP 277 replacement | Confirm hardware, software, cutout, interfaces and power before exchange. |
| Visualization maintenance | Preserve project backups, recipes, user settings and communication parameters. |
| Cancelled-product procurement | Use complete suffix and readable label evidence to avoid another OP 277 variant. |
Siemens states PM410: Product cancellation for 6AV6643-0BA01-1AX0 and records cancellation since October 1, 2021. This wording is retained without presenting the article as Active or assigning a different lifecycle term.
It identifies a Siemens SIMATIC OP 277 6-inch operator panel with a 5.7-inch TFT display.
Siemens specifies 4 MB of configuration memory for the exact article.
The Siemens entry specifies WinCC flexible 2005 Standard SP1.
Siemens uses the lifecycle wording PM410: Product cancellation and records cancellation since October 1, 2021.
Verify the suffix, hardware, project backup, WinCC flexible compatibility, controller interfaces, supply, cutout and label evidence.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A controlled handoff from identity and compatibility checks to shipment documentation and after-sales follow-up.
| Checkpoint | How It Is Handled |
| Model and suffix verification | Match 6AV6643-0BA01-1AX0 against the inquiry, unit label and packaging. |
| Condition confirmation | Review display surface, keys, enclosure, connectors, mounting hardware, markings and visible condition. |
| Technical compatibility review | Compare hardware, WinCC flexible project, controller interfaces, power, panel cutout and commissioning requirements. |
| Product and label photo confirmation | Request readable front, rear, terminal, nameplate and packaging photographs. |
| Protective packaging | Protect the display, keys, connectors and electronic assemblies against impact, moisture and contamination. |
| Worldwide shipping | Coordinate available options after destination, quantity and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance. |
| Customs documentation | Prepare transaction documents for the confirmed destination and shipment. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before goods are sent back. |
| After-sales response | Use order records, shipment data, technical evidence and photographs to coordinate follow-up. |
Check whether the vendor preserves the complete part number, requests readable label evidence, separates commercial statements from manufacturer data and provides written transaction terms.
Risk signals include shortened order codes, parameters copied from another suffix, unsupported interchangeability claims, unclear condition statements and reluctance to provide product or packaging evidence.
Align the exact unit identity, project compatibility, AS-i and MPI requirements, inspection scope, packaging, shipping documents, written warranty and return authorization process.
