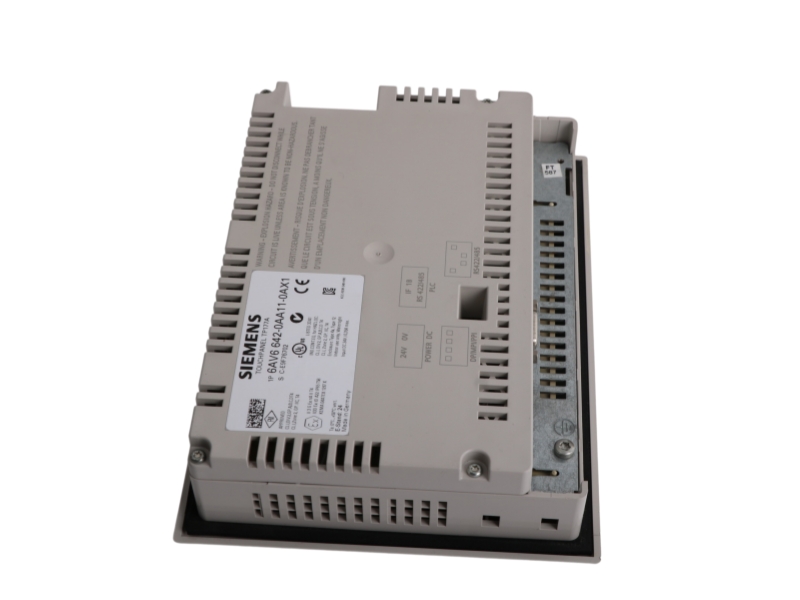

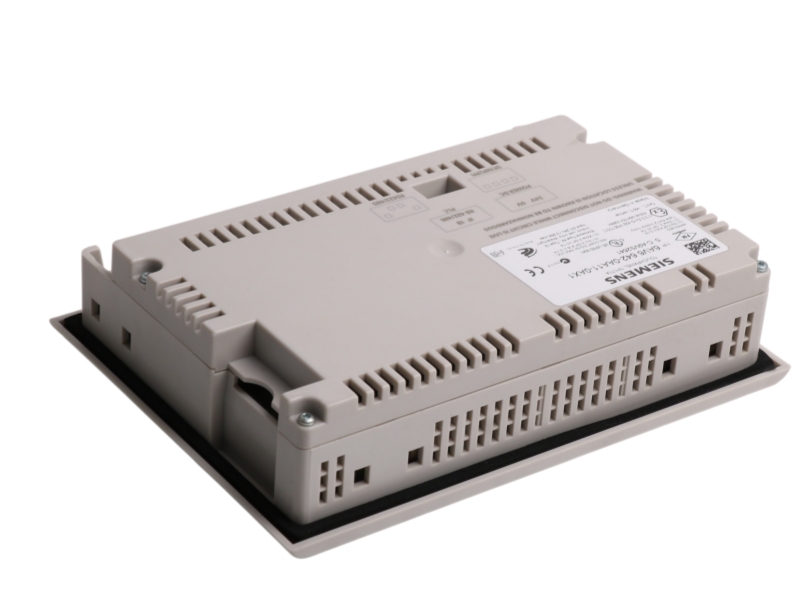

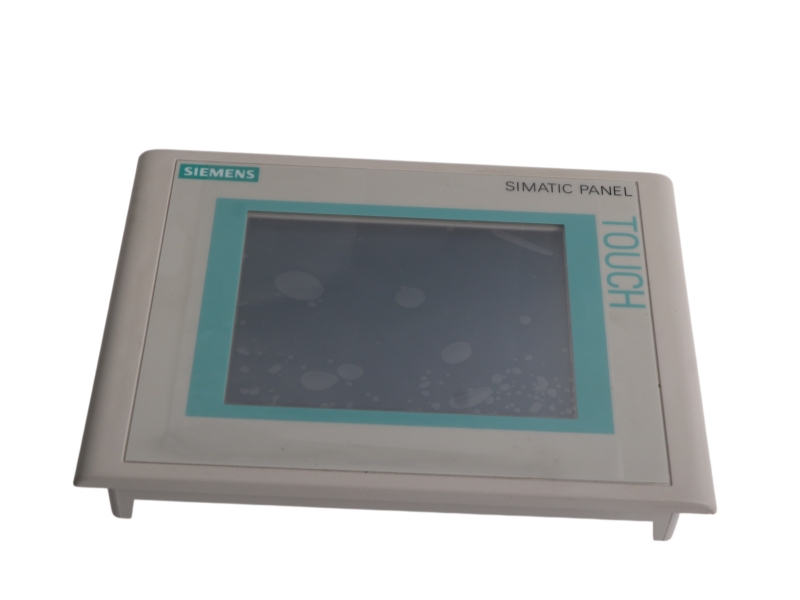

TP 177A 5.7-inch Blue-Mode Touch Panel
The Siemens 6AV6642-0AA11-0AX1 is a SIMATIC TP 177A touch panel designed for local machine visualization and operator interaction in installed automation systems. Its 5.7-inch blue-mode STN display provides touch-based access to process screens, alarms and operating functions, while the MPI/PROFIBUS DP interface supports communication with compatible SIMATIC controllers. Siemens specifies configuration from WinCC flexible 2004 Compact HSP. For replacement work, purchasers should verify the complete suffix, panel cutout, 24 V DC supply, bus settings, project source files and software migration requirements. The device is an installed-base spare part and is not described by Siemens as a universal drop-in replacement.
| Commercial Item | Current Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM500: Discontinued Product or end of PLM & Support; effective 2023-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Technical Field | Verified Value |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV6642-0AA11-0AX1 |
| Product Type | SIMATIC TP 177A Touch Panel |
| Display | 5.7-inch blue-mode STN display |
| Operator Input | Touch screen |
| Communication Interface | MPI / PROFIBUS DP |
| Configuration Software | Configurable from WinCC flexible 2004 Compact HSP |
| Rated Supply | 24 V DC; permitted range 20.4 to 28.8 V DC |
| Degree of Protection | Front IP65 when mounted; rear IP20 |
| Net Weight | 0.988 kg |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Fit | Installed SIMATIC visualization stations using MPI or PROFIBUS DP communications. |
| Typical Uses | Machine operation, process status display, alarm acknowledgement and local maintenance access. |
| Replacement Work | Installed-base maintenance where the existing project, panel opening and bus architecture have been documented. |
| Migration Direction | Siemens migration guidance lists KTP700 Basic and KTP700 Basic DP families for review; project conversion and hardware checks remain necessary. |
Before ordering or replacing this HMI, verify the complete part number and suffix, hardware revision, 24 V DC supply, MPI/PROFIBUS DP connector and bus parameters, engineering software version, original project availability, mounting cutout, environmental rating and cable routing.
A migration to a newer panel can change screen format, communication setup and project engineering. Review the panel nameplate, rear connectors, current screen project and packaging photographs before approving the replacement.
Siemens identifies 6AV6642-0AA11-0AX1 as PM500: Discontinued Product or end of PLM & Support, effective 2023-10-01, and states that the product was deleted without replacement. Any modernization path should therefore be treated as an engineered migration rather than an automatic like-for-like substitution.
It identifies the Siemens SIMATIC TP 177A variant with a 5.7-inch blue-mode STN touch display and MPI/PROFIBUS DP interface.
Siemens lists PM500: Discontinued Product or end of PLM & Support, effective 2023-10-01.
The official product description specifies an MPI/PROFIBUS DP interface.
Siemens states that the panel is configurable from WinCC flexible 2004 Compact HSP. Confirm the actual project version and source files before replacement.
Not automatically. Siemens migration guidance lists KTP700 Basic options for review, but interface, cutout, project and screen-format differences must be engineered.
Yes. Request full-product, nameplate, connector, packaging and condition photographs for order-code and condition review.
Send the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured checks for identification, compatibility evidence, condition and international dispatch.
Complete order codes, suffixes, engineering software, communication method and replacement objectives are reviewed before compatibility decisions.
Available units can be checked for readable nameplate data, complete suffix, connector condition, enclosure condition and packaging evidence.
Protective packaging, shipping documents and tracking are coordinated after order review, with worldwide shipping options matched to destination requirements.
| Review Stage | What Our Team Checks |
|---|---|
| Identification | Brand, complete part number, suffix, revision and visible serial information. |
| Technical Alignment | Panel type, display, supply, communication interface, software baseline and installation context. |
| Commercial Review | Requested quantity, stated condition, warranty scope and destination-country requirements. |
| Dispatch Preparation | Protective packaging approach, shipment documentation, carrier options and tracking arrangement. |
Share photographs of the installed label, rear connectors, panel opening and project version so the review is based on the actual installation.
Photo evidence can document visible condition, order-code readability, packaging state and accessories before dispatch.
Destination, quantity and handling needs are reviewed before shipping options are prepared; no unconfirmed delivery date is promised.
