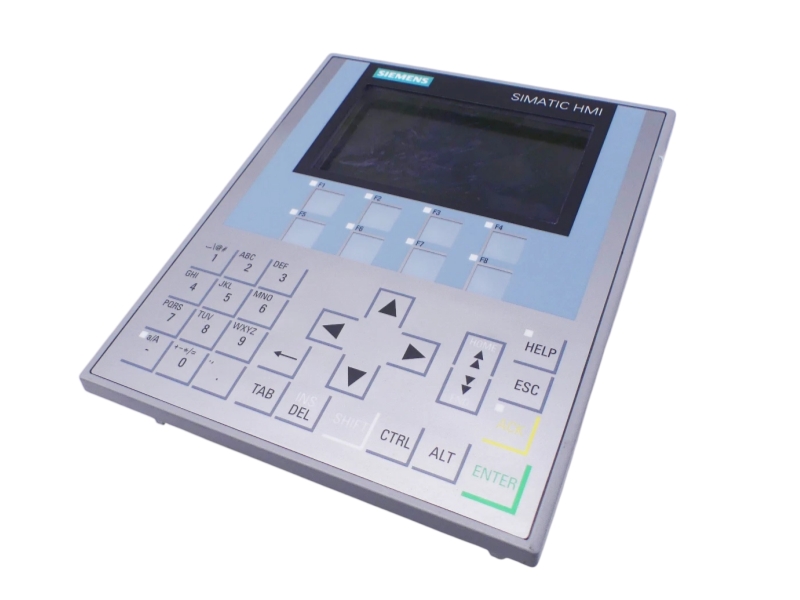

Key-operated 4.3-inch Comfort Panel for PROFINET and MPI/PROFIBUS DP visualization tasks
The Siemens 6AV2124-1DC01-0AX0 is a SIMATIC HMI KP400 Comfort Panel for key-operated machine and process visualization. Siemens identifies the exact order number with a 4.3-inch widescreen TFT display, 16,777,216 colors, eight LED-equipped function keys, a PROFINET interface and an MPI/PROFIBUS DP interface. The panel provides 4 MB of configuration memory, uses Windows CE 6.0 and is configurable from WinCC Comfort V11. Procurement and replacement planning should verify the complete suffix, installed project, engineering-software version, communication topology, cabinet cutout, supply wiring and readable nameplate.
| Condition | Original new |
| Availability | Stock and lead time confirmed on request |
| Warranty | With 1 year warranty |
| Shipping | Worldwide delivery options available from China |
| Siemens Lifecycle | PM300: Active Product |
| Brand | Siemens |
| Complete Part Number | 6AV2124-1DC01-0AX0 |
| Product Type | SIMATIC HMI KP400 Comfort Panel |
| HMI Family | SIMATIC Comfort Panels |
| Operation | Key-operated |
| Display | 4.3-inch widescreen TFT |
| Resolution | 480 × 272 pixels |
| Colors | 16,777,216 |
| Function Keys | 8; all 8 equipped with LEDs |
| Communication Interfaces | PROFINET; MPI/PROFIBUS DP |
| Configuration Memory | 4 MB |
| Operating System | Windows CE 6.0 |
| Engineering Software | Configurable from WinCC Comfort V11 |
| Front Dimensions | 152 × 188 mm |
| Mounting Cutout | 136 × 172 mm |
| Mounting Depth | 48 mm |
| Weight | Approximately 0.8 kg without packaging |
| Lifecycle | PM300: Active Product |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| Compact Machine Visualization | Provides key-operated local display, status visualization and operator interaction for compact machinery. |
| PROFINET HMI Station | Connects the panel to supported automation systems through its documented PROFINET interface. |
| MPI/PROFIBUS DP Modernization | Supports projects that require the documented MPI/PROFIBUS DP interface while preserving verified engineering data. |
The Siemens Industry Mall currently identifies the exact order number 6AV2124-1DC01-0AX0 as PM300: Active Product. This page preserves the manufacturer’s wording and does not infer a different lifecycle status.
It is a Siemens SIMATIC HMI KP400 Comfort Panel for key-operated machine and process visualization.
Siemens specifies a 4.3-inch widescreen TFT display with 480 × 272-pixel resolution and 16,777,216 colors.
The exact product description lists a PROFINET interface and an MPI/PROFIBUS DP interface.
Siemens states that the panel is configurable from WinCC Comfort V11; the installed project and software version should still be verified.
The Siemens Industry Mall identifies 6AV2124-1DC01-0AX0 as PM300: Active Product.
Verify the full suffix, project backup, firmware, network interface, supply wiring, cabinet cutout and readable nameplate.
Send the complete part number, quantity, destination country and product label photos. We will verify stock, condition, compatibility requirements, warranty and worldwide shipping options.
Practical support for identifying, inspecting, documenting and shipping Siemens 6AV2124-1DC01-0AX0 SIMATIC KP400 Comfort HMI hardware.
Our team reviews visible product identity, condition, packaging and order information before dispatch. The photographs below show representative engineering, inspection and handling activities.

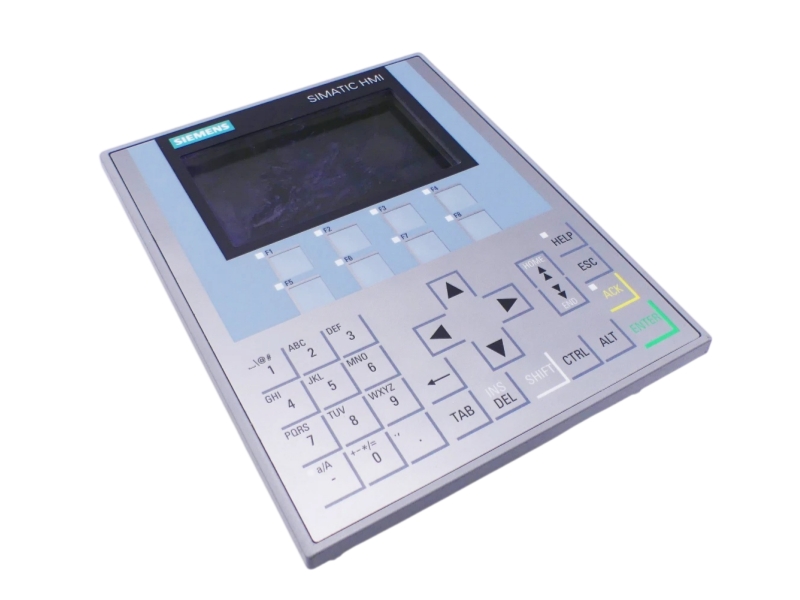

We compare the complete order code, suffix and readable label so another KP400 or Comfort Panel variant is not substituted.
Available inspection can cover the TFT display, eight function keys, housing and mounting points.

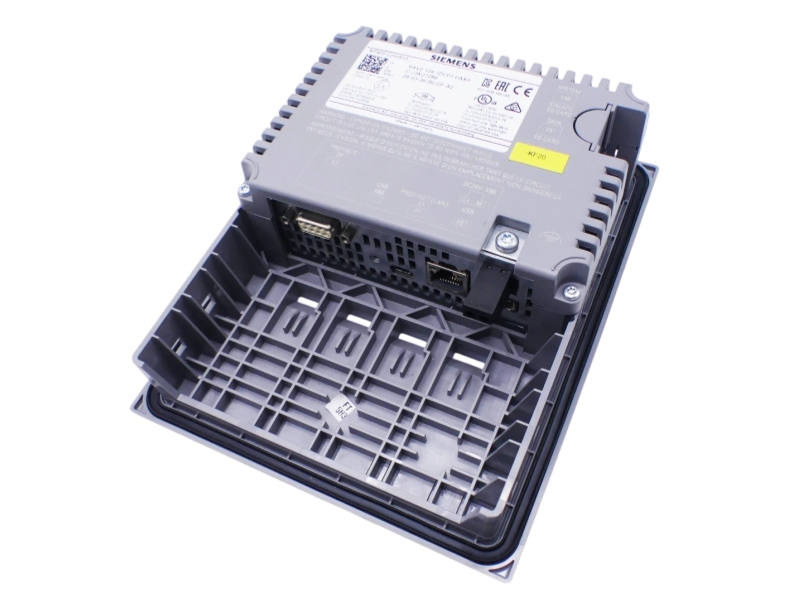

Rear connectors, cable positions and visible interface condition can be photographed for review.
Panel variant, project backup, WinCC Comfort version and communication configuration are reviewed as purchasing inputs, not as a universal replacement guarantee.
Industrial electronics are packed to reduce movement, impact and electrostatic exposure.
Shipping options are reviewed according to quantity, destination country, package requirements and available service level.
| Review Item | What Can Be Checked |
|---|---|
| Order code | Complete part number, suffix and readable Siemens label details. |
| Visible condition | Display, front membrane, keys, housing, rear panel and mounting points. |
| Interfaces | Rear connectors, cable positions, terminal condition and protective covers. |
| Project information | Available project backup, driver, transfer method and configuration software details. |
| Photo evidence | Full panel, label, display, keypad, interfaces, accessories, packaging and condition. |
| Dispatch records | Shipment details and available documentation for the selected logistics service. |
