Text-based Siemens HMI for documented legacy control-system applications

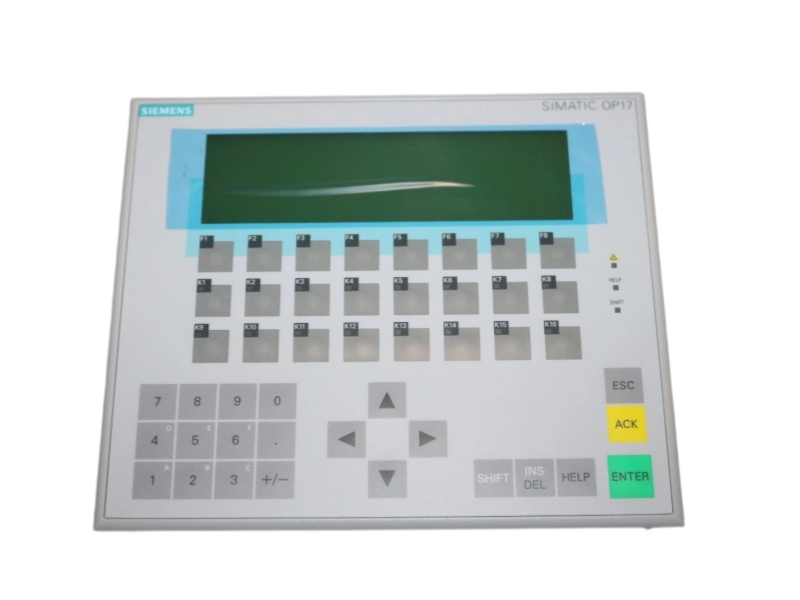

The Siemens 6AV3617-1JC00-0AX1 is a SIMATIC HMI OP17/PP operator panel designed for text-based machine and process operation. Siemens catalog data identifies the exact order number and specifies an adjustable LED-backlit LC display that can present 4 lines by 20 characters or 8 lines by 40 characters. The device uses an integrated membrane keypad and stores the operator project in onboard Flash memory, reducing controller memory requirements. It is associated with SIMATIC S5, 505 and native-driver applications. Replacement planning should compare the full suffix, interface assignment, installed project, ProTool version, supply wiring, panel cutout, battery condition and readable nameplate.
| Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide delivery options available from China |
| Siemens Product Wording | SPARE PART in the reviewed product data sheet; current PM code not stated |
| Brand | Siemens |
| Complete Part Number | 6AV3617-1JC00-0AX1 |
| Product Type | SIMATIC HMI OP17/PP operator panel |
| HMI Family | SIMATIC OP17 |
| Display | Adjustable LED-backlit LC display |
| Display Formats | 4 lines × 20 characters or 8 lines × 40 characters |
| Character Height | 8 mm in 4-line mode; 4.5 mm in 8-line mode |
| Operator Input | Integrated membrane keypad with function and system keys |
| Project Memory | 128 Kbyte Flash EPROM |
| Battery | Backup battery provided in the documented OP17 configuration |
| Interface Scope | Three built-in interface ports in the documented OP17 configuration |
| Control-System Context | SIMATIC S5, 505 and native-driver applications |
| Configuration Software | SIMATIC ProTool/Lite |
| Supply | 24 V DC |
| Front / Rear Protection | IP65 / IP20 |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| SIMATIC S5 Machine Operation | Provides text display, message handling and keypad input for documented SIMATIC S5 applications. |
| 505 and Native-Driver Applications | Supports legacy machine interfaces where the installed OP17/PP project and communication driver are preserved. |
| Like-for-Like Panel Replacement | Used when the complete order number, interface assignment, project backup and mechanical installation match. |
The reviewed Siemens product data sheet uses the exact wording SPARE PART for 6AV3617-1JC00-0AX1. It does not provide a current PM lifecycle code; therefore this page does not infer Active, Classic, Legacy, Obsolete or Discontinued.
It is a Siemens SIMATIC HMI OP17/PP text operator panel for legacy machine and process operation.
Siemens documents an adjustable LED-backlit LC display with 4 × 20 or 8 × 40 character presentation.
Not automatically. The complete suffix, communication interface, driver, project and wiring must be checked.
Siemens catalog documentation lists SIMATIC ProTool/Lite for configuring OP7 and OP17 operator panels.
A Siemens product data sheet labels the exact order number as SPARE PART, but it does not state a current PM lifecycle code.
Request full-panel, nameplate, display, keypad, rear-interface, packaging and condition photographs.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical support for identifying, inspecting, documenting and shipping Siemens 6AV3617-1JC00-0AX1 SIMATIC HMI hardware.
Our team reviews visible product identity, condition, packaging and order information before dispatch. The photographs below show representative engineering, inspection and handling activities.
We compare the complete order code, suffix and readable label so another OP17 variant is not substituted.

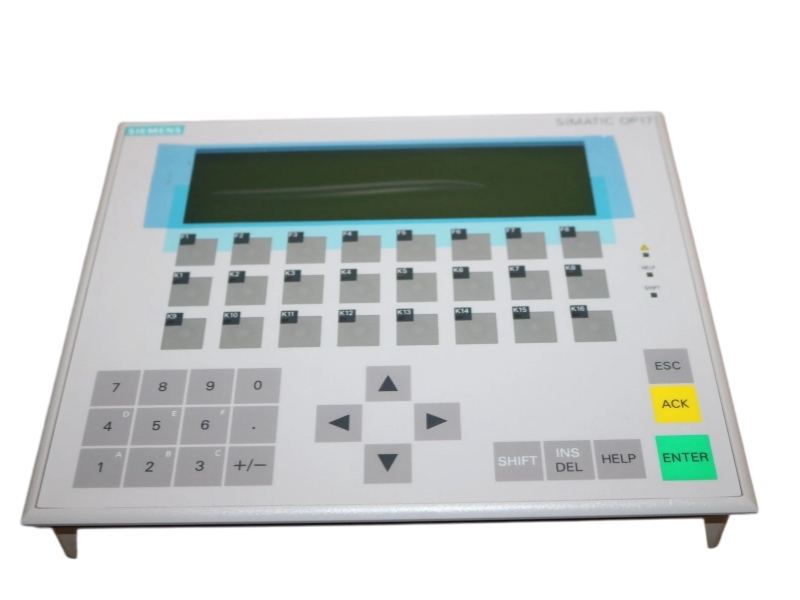

Available inspection can cover the LC display, membrane keypad, function keys, housing and mounting points.

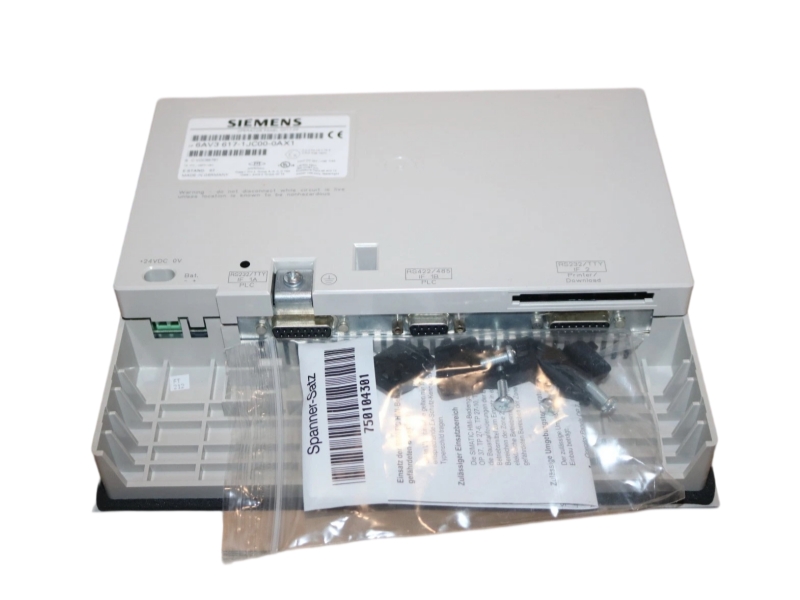

Rear connectors, cable positions and visible interface condition can be photographed for review.
Panel variant, project backup, ProTool version and controller driver are reviewed as purchasing inputs, not as a universal replacement guarantee.
Industrial electronics are packed to reduce movement, impact and electrostatic exposure.
Shipping options are reviewed according to quantity, destination country, package requirements and available service level.
| Review Item | What Can Be Checked |
|---|---|
| Order code | Complete part number, suffix and readable Siemens label details. |
| Visible condition | Display, front membrane, keys, housing, rear panel and mounting points. |
| Interfaces | Rear connectors, cable positions, terminal condition and protective covers. |
| Project information | Available project backup, driver, transfer method and configuration software details. |
| Photo evidence | Full panel, label, display, keypad, interfaces, accessories, packaging and condition. |
| Dispatch records | Shipment details and available documentation for the selected logistics service. |
