Exact Model Verification
We compare the complete order code, suffix and visible label so a different OP7 communication variant is not substituted.
Siemens industrial automation component verified by complete order number

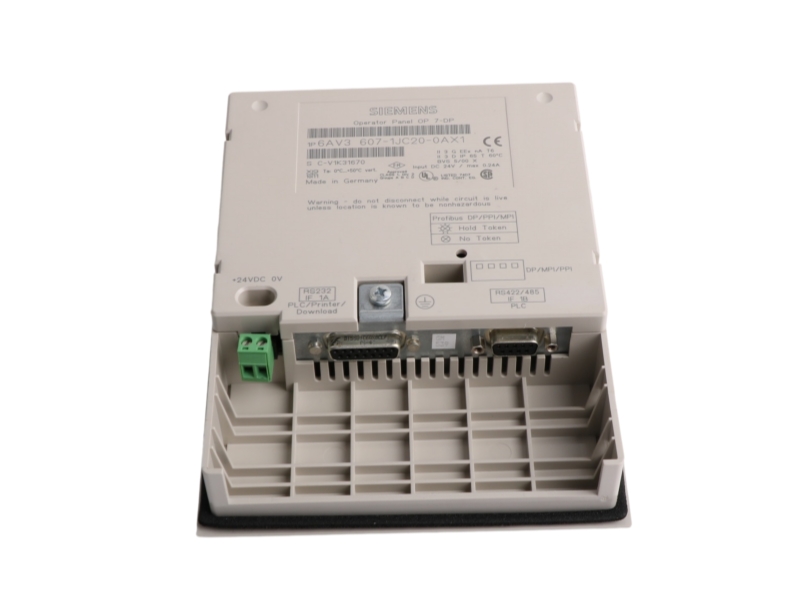

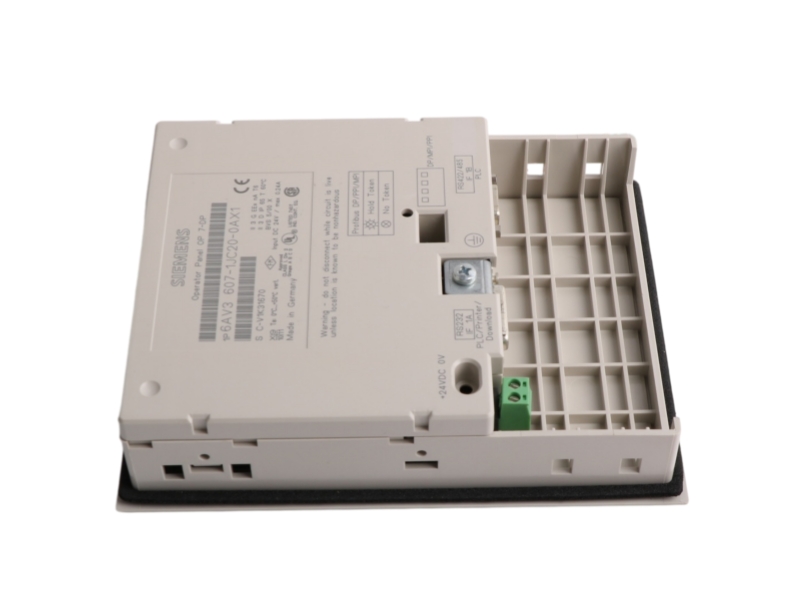

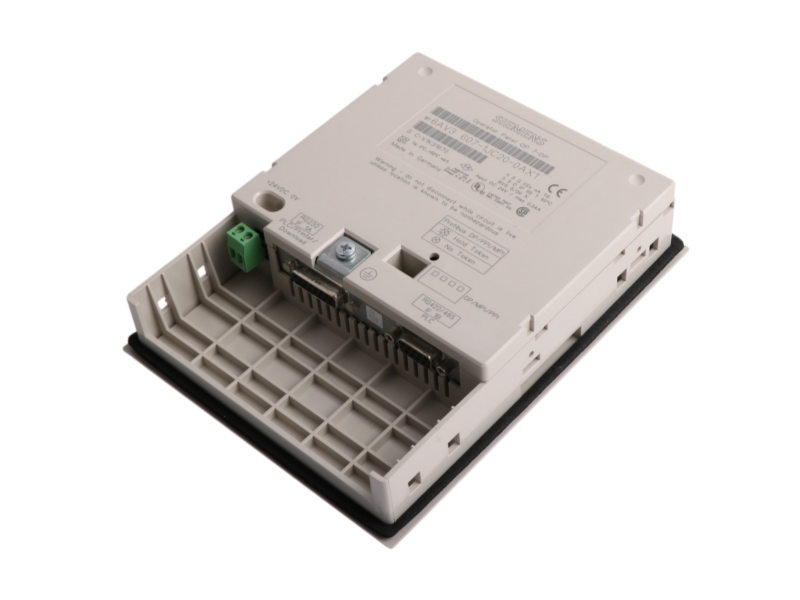

The Siemens 6AV3607-1JC20-0AX1 is a SIMATIC HMI OP7/DP text operator panel for machine and process operation. Siemens documentation describes the OP7 plastic enclosure, membrane front, display, function keys and system keypad. The DP variant supports SIMATIC S7 communication over MPI, PPI and PROFIBUS-DP, with up to four controller connections documented for TD/OP devices in this class. It is intended for panel-mounted operator tasks where status text and keyed commands are exchanged with the automation system. Procurement checks should cover the complete suffix, front layout, display condition, communication port, project backup, configuration software and cabinet cutout.
| Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide delivery options available from China |
| Brand | Siemens |
| Complete Part Number | 6AV3607-1JC20-0AX1 |
| Product Type | SIMATIC HMI OP7/DP operator panel |
| HMI Family | SIMATIC OP7 |
| Operator Interface | Text display with function and system keypad |
| Front Design | Membrane front |
| Enclosure | Plastic |
| Communication Variant | OP7/DP |
| SIMATIC S7 Interfaces | MPI, PPI and PROFIBUS-DP |
| Communication Protocol | S7 protocol |
| Controller Connections | Up to four documented for this TD/OP class |
| Installation | Panel-mounted; suitable for ungrounded installation |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| Machine Operator Interface | Displays process text and accepts keypad commands for compatible SIMATIC-controlled equipment. |
| Panel Replacement | Supports like-for-like service where the complete OP7/DP suffix, project and cabinet cutout match. |
| Legacy HMI Support | Useful for maintaining installed machines that retain an OP7 project and supported S7 communication path. |
The reviewed Siemens OP7 documentation and exact product entry confirm this order number and its product family. They do not state a current PLM code, so no lifecycle label is inferred.
It is a Siemens SIMATIC HMI OP7/DP text operator panel with a membrane keypad.
Siemens documents MPI, PPI and PROFIBUS-DP communication for the OP7/DP variant using the S7 protocol.
Do not assume so. Obtain and verify the correct OP7 project and configuration workflow before installation.
Only after checking the communication variant, front layout, connector arrangement, project and cabinet fit.
The reviewed Siemens material does not state a current PLM label for this exact order number.
Request the full front, readable nameplate, display, keypad, rear interfaces, packaging and condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical support for identifying, inspecting, documenting and shipping Siemens 6AV3607-1JC20-0AX1 SIMATIC HMI operator panel hardware.
Our team reviews visible product identity, condition, packaging and order information before dispatch. The photographs below show representative inspection and handling activities in our working environment.
We compare the complete order code, suffix and visible label so a different OP7 communication variant is not substituted.
Available inspection can cover the display, membrane keypad, communication interfaces, housing and mounting areas.
Project backup, controller protocol, communication ports and cabinet cutout are reviewed as purchasing inputs, not as a universal replacement guarantee.
Full-product, nameplate, connector, packaging and condition photographs can be prepared for identity and visual checks.
Industrial electronics are packed to reduce movement, impact and electrostatic exposure, with packaging selected for the order.
Shipping options are reviewed according to quantity, destination country, package requirements and available service level.
| Review Item | What Can Be Checked |
|---|---|
| Order code | Complete part number, suffix and readable nameplate details. |
| Visible condition | Housing, front panel, indicator area, terminal area and mounting points. |
| Interfaces | Display, membrane keypad, communication ports, power connector and visible condition. |
| Photo evidence | Product, label, connector, accessories, packaging and condition images. |
| Packing preparation | Protective materials, movement control and external package condition. |
| Dispatch records | Shipment details and available documentation for the selected logistics service. |
Complete part number and quantity: prevents selection of a different suffix or configuration.
Hardware and firmware details: supports comparison with the installed station and project.
Connector and label photos: helps review identity, interface and visible condition.
Destination country: allows suitable packing and shipping options to be reviewed.
