5.7 inch STN monochrome keypad HMI for legacy SIMATIC operator control

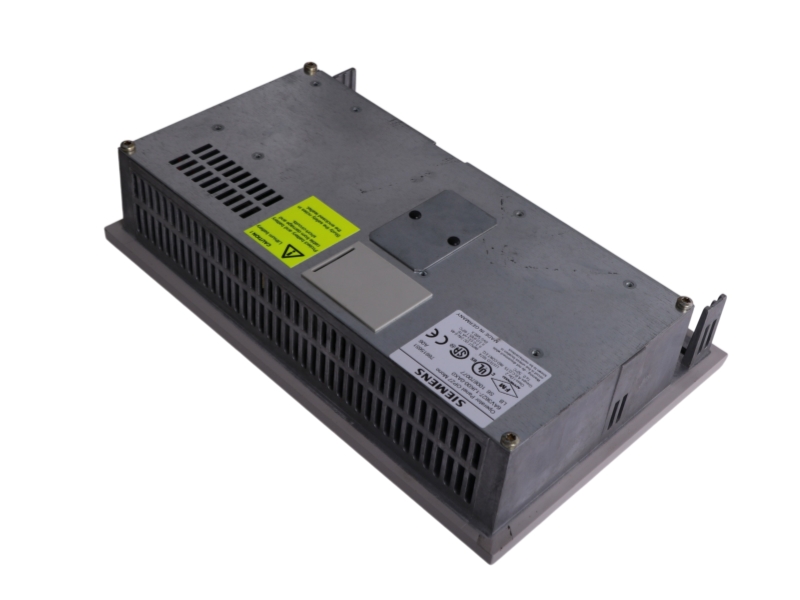

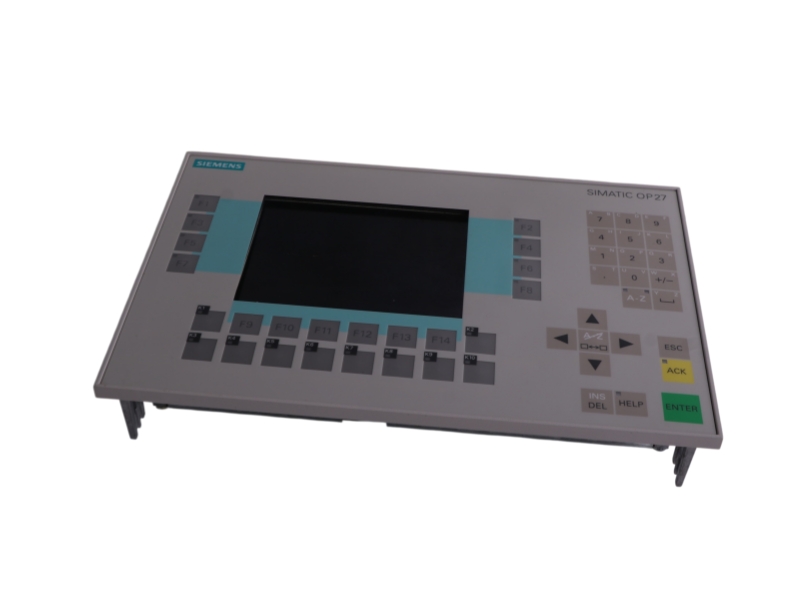

Siemens 6AV3627-1JK00-0AX0 is a SIMATIC OP27 operator panel with a 5.7-inch STN monochrome display and keypad-based operation. Siemens technical data identifies a 240 × 320 graphic display with eight gray scales, membrane keys, 24 function keys and 24 system keys. Serial connectivity includes TTY, two RS232 ports, RS422 and RS485, supporting legacy machine and process interfaces. The front is rated IP65 when correctly installed, while the rear is IP20. This exact spare-part article was deleted without replacement, so migration or like-for-like procurement should begin with project backup, interface and panel-cutout checks.
| Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Parameter | Specification |
|---|---|
| Product designation | SIMATIC OP27 operator panel; spare part |
| Display type | STN monochrome, 8 gray scales |
| Display size | 5.7 inch |
| Resolution | 240 × 320 pixels |
| Operation | Membrane keyboard; no touch screen |
| Function keys | 24, including 18 with LEDs |
| System keys | 24 |

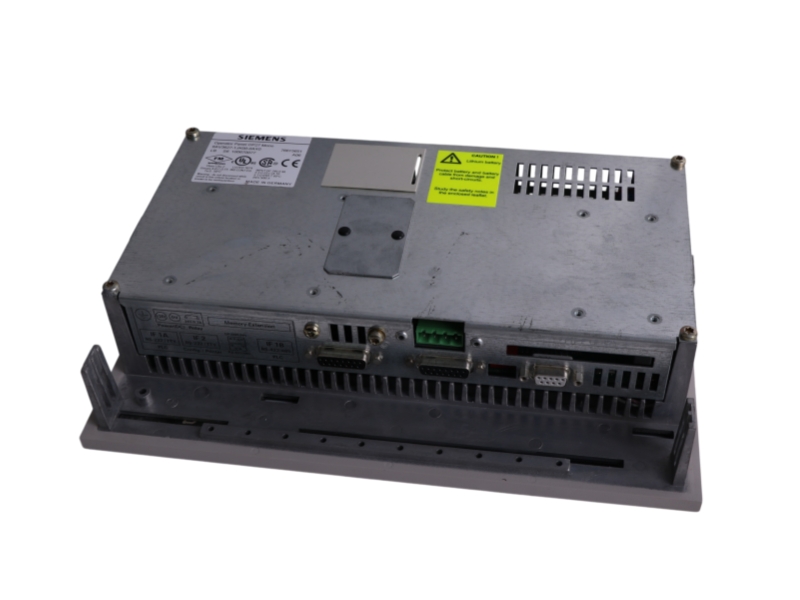

| Interfaces | 1 × TTY; 2 × RS232; 1 × RS422; 1 × RS485 |
| Maximum RS485 rate | 12 Mbit/s |
| Memory-card slot | 1 × PC card slot |
| Degree of protection | Front IP65; rear IP20 |
| Mounting position | Vertical; maximum permissible inclination 35° |
| Country of origin | Germany |
 |
 |
 |
The OP27 supports operator visualization and keypad input in installed legacy SIMATIC machine and process applications.
Match the complete 6AV3627-1JK00-0AX0 order number, panel cutout, serial interface, connector assignment, project backup and memory-card requirements. Confirm the existing PLC communication path and ensure that the original HMI project can be restored. A modern replacement may require engineering changes rather than direct hardware substitution.
Siemens archived product information states: Product was deleted without replacement. This wording is retained without converting it to a different lifecycle label.
It is a SIMATIC OP27 keypad operator panel with a 5.7-inch STN monochrome graphic display.
No. This configuration uses membrane keys, function keys and system keys.
Siemens lists TTY, two RS232 ports, RS422 and RS485 interfaces.
The front is rated IP65 when correctly installed; the rear is IP20.
Verify the complete suffix, panel cutout, project backup, serial interface, connector assignment and installed label.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
