5.7-inch STN monochrome keypad interface for documented SIMATIC machine visualization applications.

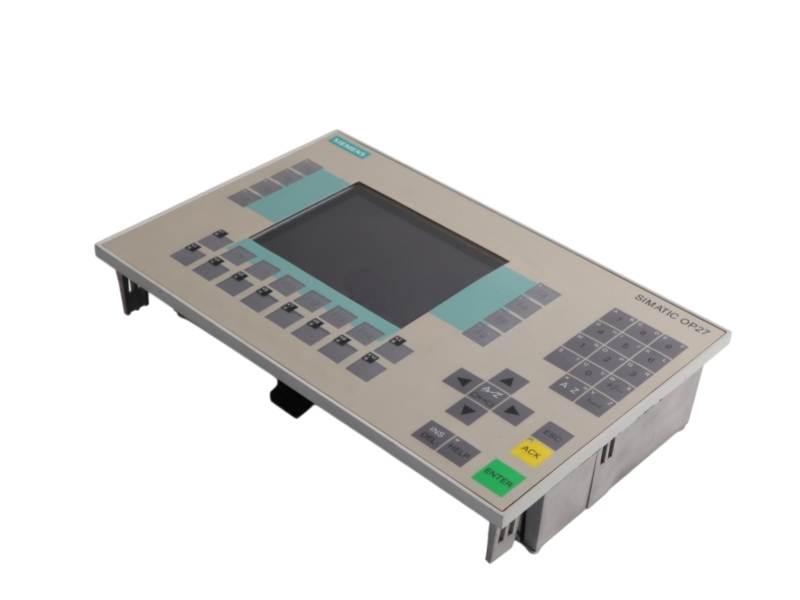

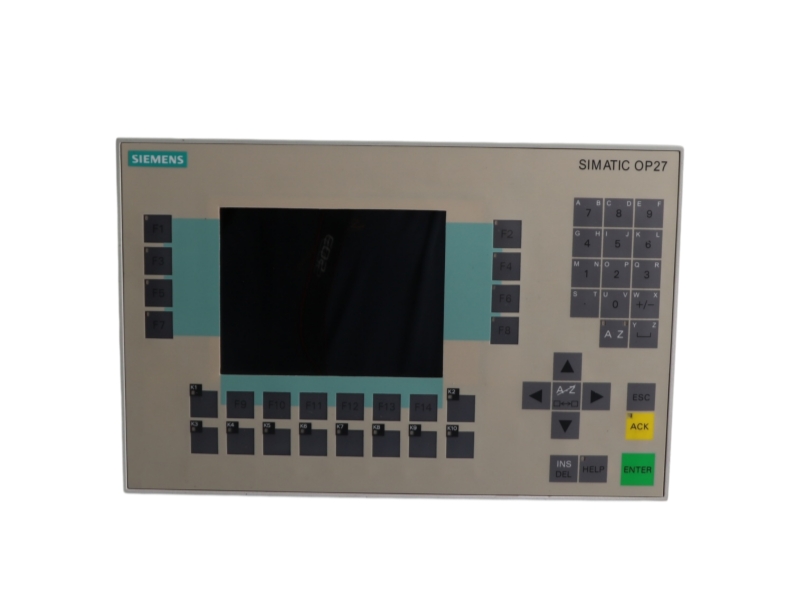

The Siemens 6AV3627-1JK00-0AX0 is a SIMATIC OP27 operator panel designed for keypad-based machine visualization and operation. Siemens documentation identifies a 5.7-inch STN monochrome display with eight gray scales, 240 × 320 resolution, membrane keys and 24 function keys, including 18 with LEDs. The panel uses a vertical mounting position and is documented for an 18 V DC supply. For maintenance or replacement, verify the complete suffix, panel cutout, supply arrangement, keyboard layout, communication wiring, project backup, engineering software, PC-card media and installed connectors. This spare-part article should be treated as a documented like-for-like replacement, not a universal HMI substitute.
| Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | Product was deleted without replacement |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV3627-1JK00-0AX0 |
| Product Type | OP27 operator panel |
| Product Family | SIMATIC HMI |
| Display | STN monochrome LC display, 8 gray scales |
| Screen Size | 5.7 inches |
| Resolution | 240 × 320 pixels |
| Graphics Capability | Enabled |
| Operator Input | Membrane keyboard; no touch operation |
| Function Keys | 24, including 18 with LEDs |
| System Keys | 24 |
| Keyboard Functions | Numeric, alphanumeric and hexadecimal input |
| Supply Type | 18 V DC |
| Rated Current | 0.3 A |
| Backlight MTBF | 50,000 hours |
| Mounting Position | Vertical; maximum 35° inclination without external ventilation |
| Country of Origin | GERMANY |
| Area | Application Guidance |
|---|---|
| System Fit | Documented SIMATIC HMI installations engineered for an OP27 keypad panel. |
| System Role | Local machine operation, process visualization, status display and operator input. |
| Typical Use | Maintenance of legacy production equipment, machine panels and installed operator stations. |
| Replacement Principle | Confirm like-for-like mechanical, electrical, communication and project requirements before installation. |
It identifies a Siemens SIMATIC OP27 operator panel with a 5.7-inch STN monochrome display and membrane keyboard.
No. Siemens documentation specifies membrane-key operation and states that touch operation is not provided.
The documented supply type is 18 V DC with a rated current of 0.3 A. Installed wiring must still be checked before replacement.
The Siemens archive states: Product was deleted without replacement.
Check the exact suffix, panel cutout, power wiring, connectors, keyboard layout, project backup, engineering software and storage media.
Yes. Product, label, connector and packaging photographs can be prepared for order review.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Practical order review for 6AV3627-1JK00-0AX0, from article verification through shipment follow-up.
| Service Stage | What We Review |
|---|---|
| Identification | Complete model and suffix, manufacturer label, revision details and visible configuration. |
| Condition | Product condition, enclosure, display, membrane keys, connectors, seals and packaging evidence. |
| Technical Review | Power arrangement, interface wiring, mounting fit, project data and replacement constraints. |
| Order Documentation | Commercial terms, written warranty terms, packing details and customs documentation. |
| Logistics | Protective packaging, worldwide shipping coordination and shipment tracking. |
| After-Sales | After-sales response, documented issue review and return authorization process. |
We compare the full order code, suffix and label information with the purchasing request.
Condition, technical data and product photographs are reviewed before compatibility decisions.
Protective packing, shipping documents, tracking and after-sales contacts are coordinated after order review.

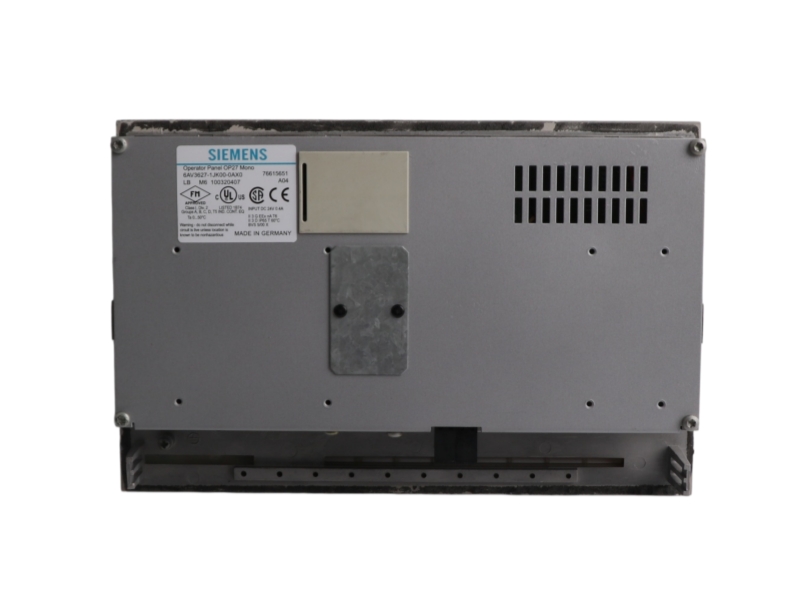

Product labels and visible identifiers are checked against the requested order code.
Technical documentation and installed cabinet details are compared during compatibility review.
Visible condition and packing readiness are reviewed before protective packaging is arranged.
Look for complete article-code verification, consistent technical descriptions, clear condition evidence, written commercial terms and a documented after-sales process.
Review the quotation, full part number, label photographs, condition statement, packing scope, warranty terms, shipping documents, customs information and return authorization rules.
Engineers should compare the complete suffix, hardware revision, power arrangement, interfaces, connectors, mounting, project backup, engineering software and installed network details.
Warning signs include an incomplete model, refusal to provide nameplate images, conflicting specifications, unclear condition, unsupported delivery promises or no stated return process.
