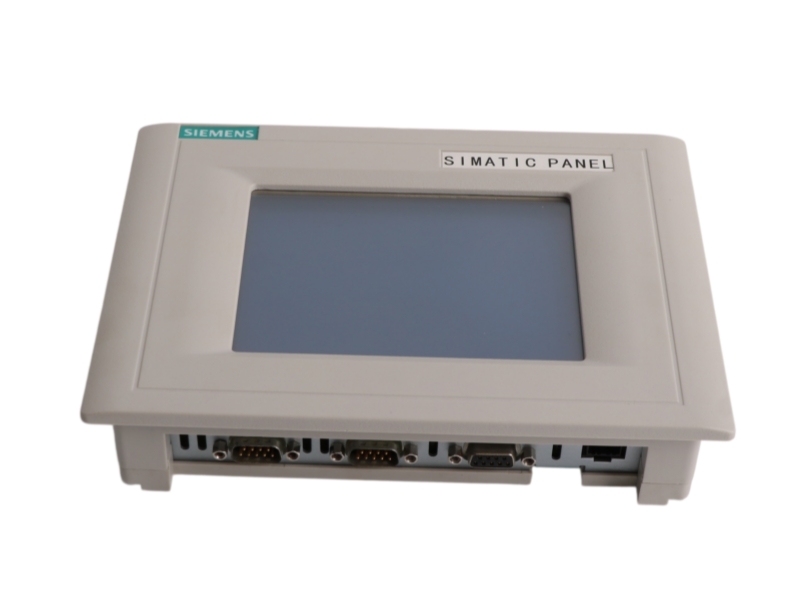

5.7-inch blue-mode touch panel with MPI/PROFIBUS DP connectivity
The Siemens 6AV6545-0BB15-2AX0 is a SIMATIC TP170B operator panel for touch-based machine visualization. Siemens documentation specifies a 5.7-inch STN display with four blue levels, 320 × 240 resolution, MPI/PROFIBUS DP communication, an RS232 printer interface and a CompactFlash card slot. The panel operates from a 24 V DC supply and supports projects created with the documented ProTool/Lite or WinCC flexible versions. For replacement, verify the complete suffix, panel cutout, supply range, bus connector and address, CompactFlash requirements, project source, engineering-software version and rear-interface arrangement. It is intended for documented like-for-like service, not universal HMI substitution.
| Commercial Item | Current Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Technical Field | Verified Value |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV6545-0BB15-2AX0 |
| Product Type | SIMATIC TP170B touch panel |
| Display | 5.7-inch STN, four blue levels |
| Resolution | 320 × 240 pixels |
| Operator Input | Analog resistive touch screen |
| Rated Supply | 24 V DC |
| Permissible Supply Range | 18–30 V DC |
| Rated Current | 0.25 A |
| Power Consumption | 6 W |
| Communication Interface | MPI/PROFIBUS DP |
| Additional Interface | RS232 printer interface |
| Removable Storage | CompactFlash card slot |
| User Memory | 768 KB |
| Engineering Software | ProTool/Lite V5.2 SP1 or later; WinCC flexible Compact 2004 or later |
| Backlight MTBF | 50,000 h |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Fit | SIMATIC machine-visualization installations documented for the TP170B panel and its project files. |
| Core Function | Local touch operation, status display, alarms and operator interaction for an automated machine. |
| Typical Applications | Machine panels, production equipment and maintenance replacement of an installed TP170B. |
| Engineering Context | Projects using the documented ProTool/Lite or WinCC flexible versions and matched communication settings. |
| Maintenance Use | Like-for-like service after panel cutout, wiring, bus address and project compatibility are checked. |

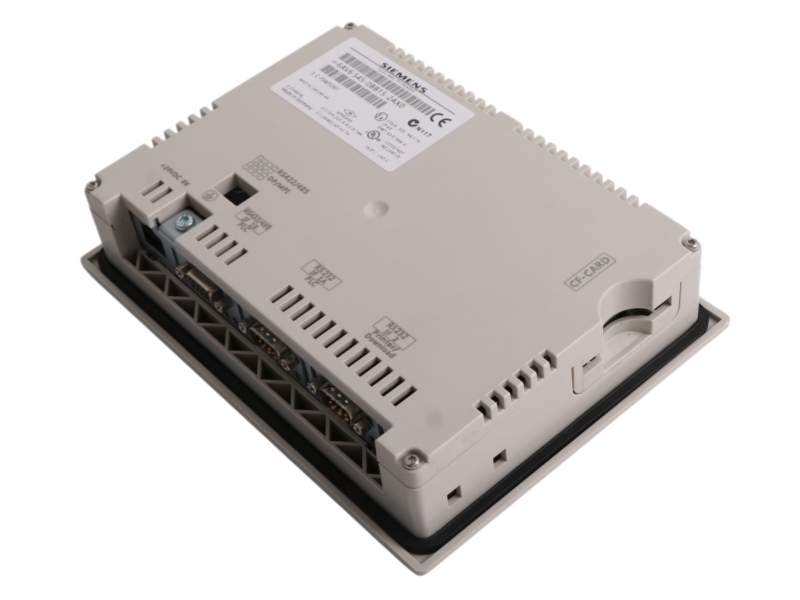

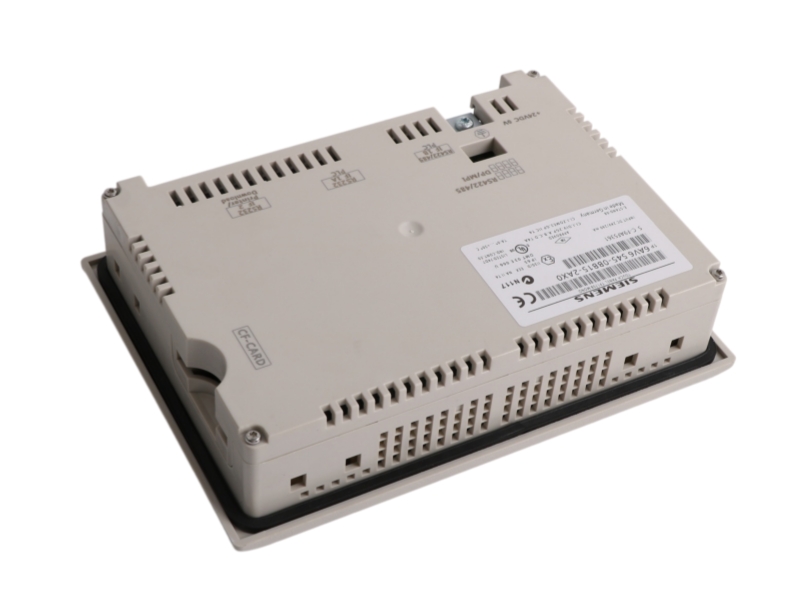

Verify the complete part number and suffix, readable nameplate, hardware revision, 24 V DC supply, MPI/PROFIBUS DP connector and address, RS232 use, CompactFlash card, rear connector layout, panel cutout, mounting hardware, engineering-software version, original project source and product-label photographs. Do not assume direct replacement for a different SIMATIC panel without confirming the mechanical and project requirements.
Siemens documentation identifies 6AV6545-0BB15-2AX0 as a spare-part article, but the available official data sheet does not state a current PLM lifecycle classification. No Active, Phase Out, Obsolete or Discontinued status is inferred here. Procurement should rely on the exact label and documented installation requirements.
It identifies the SIMATIC TP170B 5.7-inch blue-mode touch panel documented by Siemens.
The panel provides MPI/PROFIBUS DP communication and an RS232 printer interface.
Check the 24 V DC supply, permissible 18–30 V DC range and installed wiring before replacement.
Siemens documentation lists ProTool/Lite V5.2 SP1 or later and WinCC flexible Compact 2004 or later.
The available Siemens data sheet marks it as a spare part but does not provide a current PLM lifecycle classification.
Yes. Request front, rear-interface, nameplate, mounting, CompactFlash-area, packaging and condition photographs.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured sourcing support for 6AV6545-0BB15-2AX0, from exact identification through documented delivery and after-sales communication.
| Service Item | What We Review |
|---|---|
| Model and Suffix Verification | Complete 6AV6545-0BB15-2AX0 order code, suffix and readable product label. |
| Condition Confirmation | Visible housing, connectors, seals, accessories and supplied condition photographs. |
| Technical Compatibility Review | TP170B panel cutout, 24 V DC supply, MPI/PROFIBUS DP settings, rear interfaces, storage media and project-software compatibility. |
| Documentation Review | Available datasheets, project records, firmware or software notes and commercial terms. |
| Packaging and Logistics | Protective packaging, worldwide shipping coordination, customs documentation and shipment tracking. |
| Warranty and Returns | Written warranty terms, return authorization process and after-sales response route. |
Match the complete model, suffix, label and requested quantity before commercial review.
Compare interfaces, power, configuration, mounting and documented system requirements.
Review inspection evidence, accessories, protective packing and dispatch records.
Coordinate shipping, customs documents, tracking, written warranty and after-sales response.
Look for traceable company information, consistent technical answers, readable label photographs, written condition statements, clear warranty terms and a documented return process.
Review the quotation, exact order code, condition description, inspection photographs, packing scope, warranty period, shipping terms, customs documents and return authorization conditions.
Engineers should compare the complete suffix, hardware and firmware revisions, interfaces, connectors, power, project parameters, mounting position and system architecture with the installed documentation.
Incomplete model numbers, refusal to provide nameplate photographs, contradictory specifications, vague condition language and an undefined return process are common risk signals.
