SIMATIC HMI · COMFORT PANEL
Seven-inch key-operated HMI with PROFINET, MPI/PROFIBUS DP and 24 function keys.

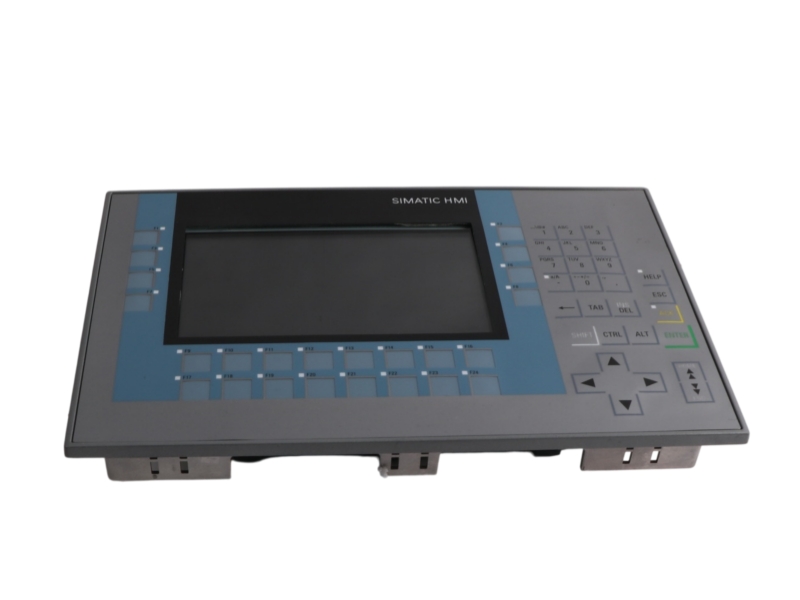

Siemens 6AV2124-1GC01-0AX0 is the SIMATIC HMI KP700 Comfort, a key-operated Comfort Panel with a 7-inch widescreen TFT display, 800 × 480 resolution and 24 function keys. Siemens specifies PROFINET through an Industrial Ethernet interface with an integrated two-port switch, plus a combined RS422/485 interface for MPI/PROFIBUS DP. The panel provides 12 MB of configuration/user memory, two USB 2.0 ports, USB Mini-B and two SD-card slots. Replacement planning should verify the full suffix, mounting cutout, 24 V DC supply, network addressing, project version, communication parameters, storage media and existing panel backup.
PM300: Active Product
Siemens lists the complete order code as PM300: Active Product. No different lifecycle wording is substituted.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV2124-1GC01-0AX0 |
| Product Family | SIMATIC HMI Comfort Panels |
| Product Type | KP700 Comfort key-operated panel |
| Display | 7-inch widescreen TFT, 16,777,216 colors |
| Resolution | 800 × 480 pixels |
| Function Keys | 24 |
| Ethernet / PROFINET | 1 Industrial Ethernet interface with integrated 2-port switch |
| Serial Interface | 1 combined RS422/485 interface for MPI/PROFIBUS DP |
| Configuration / User Memory | 12 MB |
| USB Interfaces | 2 × USB 2.0 and 1 × USB Mini-B |
| Memory Card Slots | 2 × SD card |
| Operating System | Windows CE 6.0 |
| Engineering Software | Configurable from WinCC Comfort V11 |
| Net Weight | 2.645 kg |
| Official Lifecycle | PM300: Active Product |
| Country of Origin | Germany |
| Application Area | How the Product Is Used |
|---|---|
| Machine operation | Provides key-operated visualization and operator input for compatible machine and process projects. |
| PROFINET HMI station | Connects through the integrated Industrial Ethernet two-port switch when network and project settings match. |
| MPI/PROFIBUS DP integration | Supports the combined RS422/485 interface for compatible legacy communication configurations. |
| Installed-panel maintenance | Supports like-for-like service after checking cutout, power, project version, addressing and peripheral connections. |
It identifies the Siemens SIMATIC HMI KP700 Comfort key-operated panel with a 7-inch widescreen display.
Siemens specifies Industrial Ethernet with an integrated two-port switch and a combined RS422/485 interface for MPI/PROFIBUS DP.
The official technical data specifies 24 function keys.
Siemens states that the panel is configurable from WinCC Comfort V11; the installed project and current engineering environment should still be verified.
Siemens lists the complete order code as PM300: Active Product.
Back up the HMI project, recipes, user data and relevant network and communication settings before removing the installed panel.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS SERVICE ROUTE
A documented service workflow for Siemens 6AV2124-1GC01-0AX0 procurement and KP700 Comfort HMI procurement and key-operated panel replacement planning.
Identity, suffix and visible condition are checked against the inquiry.
Display, cutout, 24 V DC power, PROFINET, MPI/PROFIBUS DP, project version, function keys and storage media are reviewed.
Technical records, packaging and delivery details are coordinated before dispatch.
We compare 6AV2124-1GC01-0AX0 with the inquiry, nameplate and available packaging labels.
Commercial condition is stated clearly and supported by available inspection evidence.
Display, cutout, 24 V DC power, PROFINET, MPI/PROFIBUS DP, project version, function keys and storage media are reviewed.
Full-unit, nameplate, display, connector, memory-card and packaging photos can be prepared before shipment.
Antistatic handling, screen protection, cushioning and outer-carton protection are selected for the Comfort Panel.
Shipping options are coordinated for the destination, package and customer instructions.
Tracking details are supplied after dispatch when supported by the selected carrier.
Commercial shipping documents are prepared for the declared shipment route.
Applicable Stockoems warranty terms are stated in writing with the offer.
Return requests follow a documented authorization process before shipment back.
The order code, inspection record and correspondence remain available for follow-up.
| Control Point | What We Review |
|---|---|
| Identity | Brand, full order code, suffix, hardware status and readable nameplate |
| Technical context | Display, cutout, power, PROFINET, RS422/485, project version, function keys and storage media |
| Visual inspection | Housing, front interfaces, connector area and visible handling condition |
| Packaging | Antistatic handling, cushioning and outer-carton protection |
| Logistics | Destination, carrier, tracking and customs paperwork |
| After-sales | Written warranty, order record and return authorization route |
Check whether the supplier records the complete part number, provides readable product and label photos, states condition and warranty terms in writing, and avoids unsupported compatibility claims.
Request the commercial offer, complete order code, condition statement, inspection photos, packaging plan, shipping method, warranty terms and return authorization procedure.
Review the 7-inch cutout, 24 V DC supply, PROFINET, MPI/PROFIBUS DP, WinCC project, function keys, SD media and backup.
Risk signals include incomplete suffixes, hidden nameplates, unsupported compatibility claims, unclear warranty wording and promises of unverified stock or delivery dates.

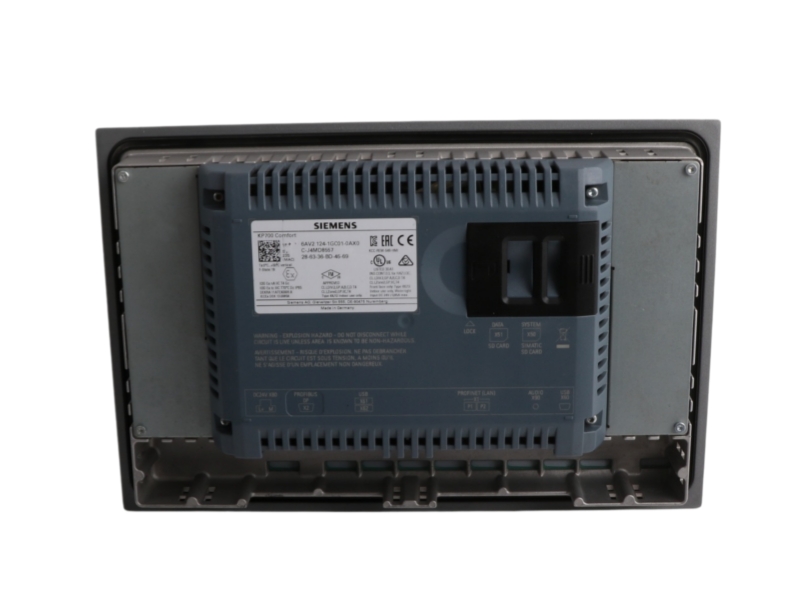

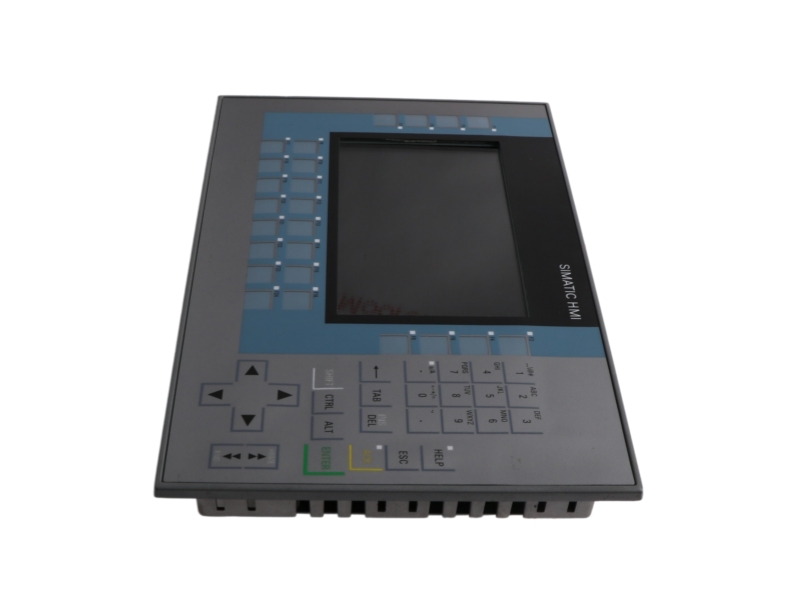

Yes. Available photos can cover the complete panel, readable label, display, function keys, rear connectors, memory-card area, packaging and visible accessories.
