SIPLUS S7-300 · ANALOG INPUT
Eight-channel current input module with conformal coating for extended environmental operation.

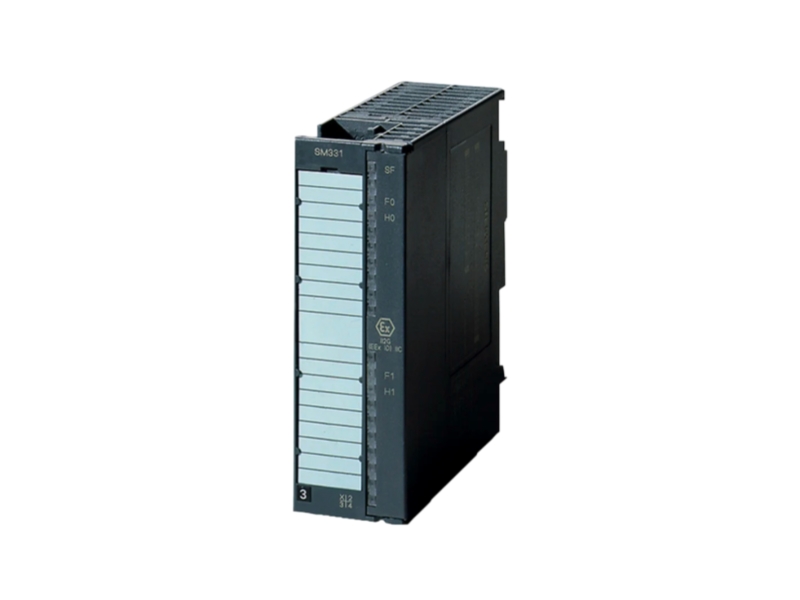

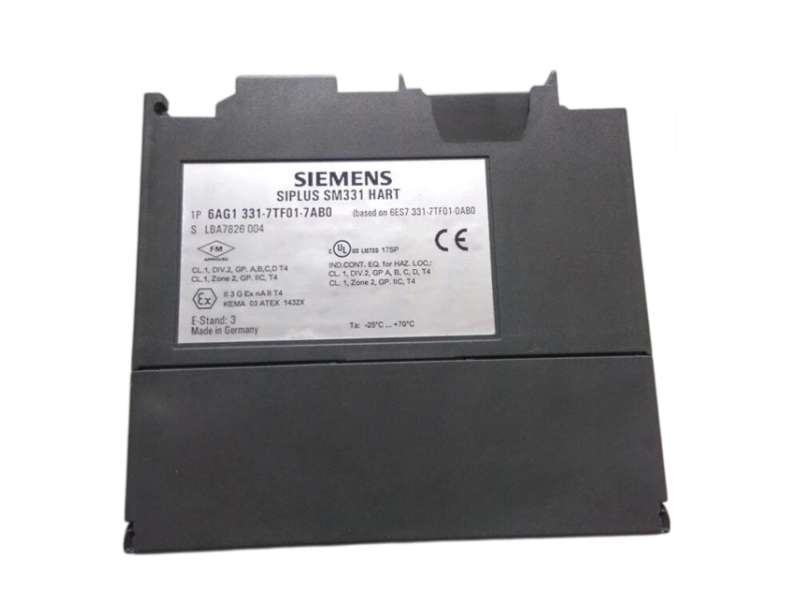

Siemens 6AG1331-7TF01-7AB0 is a SIPLUS S7-300 SM 331 analog input module based on 6ES7331-7TF01-0AB0 and protected by conformal coating. The official data specifies eight current inputs for 0/4 to 20 mA signals, 24 V DC supply, maximum 16-bit resolution including sign, 240 ohm input resistance and shielded cable lengths up to 800 m. Siemens rates operation from -25 to +70 °C. Replacement planning should verify the full SIPLUS suffix, front connector and wiring, current range, integration time, diagnostics, grounding, environmental qualification, rack position and STEP 7 hardware configuration.
PM410: Product cancellation
Siemens states that the product is cancelled since 2025-10-01. This exact PM410 wording is retained.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; product cancelled since 2025-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AG1331-7TF01-7AB0 |
| Product Family | SIPLUS S7-300 |
| Product Type | SM 331 analog input module |
| Based On | 6ES7331-7TF01-0AB0 |
| Environmental Protection | Conformal coating |
| Operating Temperature | -25 to +70 °C |
| Analog Inputs | 8 current inputs |
| Input Ranges | 0 to 20 mA and 4 to 20 mA |
| Resolution | Maximum 16 bit including sign |
| Rated Supply Voltage | 24 V DC |
| Input Resistance | 240 ohms for current measurement |
| Shielded Cable Length | Maximum 800 m |
| Backplane Bus Current | Maximum 120 mA |
| Load Voltage Input Current | Maximum 20 mA |
| Typical Power Loss | 1.5 W |
| Net Weight | 0.254 kg |
| Official Lifecycle | PM410: Product cancellation; product cancelled since 2025-10-01 |
| Country of Origin | Germany |
| Application Area | How the Product Is Used |
|---|---|
| Process current acquisition | Acquires eight 0/4 to 20 mA current signals in a compatible S7-300 station. |
| Harsh industrial environments | Conformal coating and the specified extended temperature range support qualified applications. |
| Analog module replacement | Supports like-for-like maintenance when the SIPLUS suffix, wiring, ranges and configuration match. |
| Instrumentation modernization | Can be assessed for installed loops after channel scaling, diagnostics and grounding are documented. |
It identifies the Siemens SIPLUS S7-300 SM 331 eight-channel analog current input module with conformal coating.
The official data specifies 0 to 20 mA and 4 to 20 mA current input ranges.
Siemens specifies eight analog current inputs.
Verify the SIPLUS suffix, connector and wiring, current ranges, integration time, diagnostics, grounding, rack slot and STEP 7 configuration.
Siemens lists PM410: Product cancellation and states that the product is cancelled since 2025-10-01.
The suffix identifies the environmental version, including conformal coating and the documented extended operating-temperature range.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS SERVICE ROUTE
A documented service workflow for Siemens 6AG1331-7TF01-7AB0 procurement and SIPLUS SM 331 analog input procurement and current-channel replacement planning.
Identity, suffix and visible condition are checked against the inquiry.
SIPLUS suffix, conformal coating, eight current inputs, ranges, wiring, connector, diagnostics, grounding and STEP 7 configuration are reviewed.
Technical records, packaging and delivery details are coordinated before dispatch.
We compare 6AG1331-7TF01-7AB0 with the inquiry, nameplate and available packaging labels.
Commercial condition is stated clearly and supported by available inspection evidence.
SIPLUS suffix, conformal coating, eight current inputs, ranges, wiring, connector, diagnostics, grounding and STEP 7 configuration are reviewed.
Full-unit, nameplate, connector, terminal, coating and packaging photos can be prepared before shipment.
Antistatic handling, terminal protection, cushioning and outer-carton protection are selected for the analog module.
Shipping options are coordinated for the destination, package and customer instructions.
Tracking details are supplied after dispatch when supported by the selected carrier.
Commercial shipping documents are prepared for the declared shipment route.
Applicable Stockoems warranty terms are stated in writing with the offer.
Return requests follow a documented authorization process before shipment back.
The order code, inspection record and correspondence remain available for follow-up.
| Control Point | What We Review |
|---|---|
| Identity | Brand, full order code, suffix, hardware status and readable nameplate |
| Technical context | SIPLUS suffix, coating, channels, current ranges, connector, wiring, diagnostics, grounding and STEP 7 configuration |
| Visual inspection | Housing, front interfaces, connector area and visible handling condition |
| Packaging | Antistatic handling, cushioning and outer-carton protection |
| Logistics | Destination, carrier, tracking and customs paperwork |
| After-sales | Written warranty, order record and return authorization route |
Check whether the supplier records the complete part number, provides readable product and label photos, states condition and warranty terms in writing, and avoids unsupported compatibility claims.
Request the commercial offer, complete order code, condition statement, inspection photos, packaging plan, shipping method, warranty terms and return authorization procedure.
Review the SIPLUS suffix, eight current loops, range selection, connector, wiring, integration time, diagnostics, grounding and rack configuration.
Risk signals include incomplete suffixes, hidden nameplates, unsupported compatibility claims, unclear warranty wording and promises of unverified stock or delivery dates.
Yes. Available photos can cover the complete module, readable label, front connector, terminal area, coating condition, packaging and visible accessories.
