Siemens 6AG4021-0AB11-1BA0 SIMATIC IPC127E Industrial PC
Compact four-core base Box PC for industrial automation and machine-level computing.
Product Overview
Siemens 6AG4021-0AB11-1BA0 is Configuration 6 of the SIMATIC IPC127E compact industrial Box PC family. The official catalog identifies a base enclosure with an Intel Atom E3940 1.6 GHz four-core processor, 4 GB DDR4 memory, a 64 GB SSD, and preinstalled Windows 10 Enterprise 2016 LTSB 64-bit MUI. Two independent Gigabit-capable RJ45 Industrial Ethernet interfaces, two USB 3.0 ports, and one DisplayPort support machine-level computing and connectivity. Before procurement, verify the full article number, operating-system image, storage contents, interfaces, mounting accessories, power arrangement, licenses, and project backup.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Warranty |
With 1 year warranty |
| Shipping |
Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Siemens |
| Complete Part Number |
6AG4021-0AB11-1BA0 |
| Product Type |
Industrial Box PC |
| Product Family |
SIMATIC IPC127E |
| Configuration |
Configuration 6 |
| Design |
Base Box PC, embedded unit |
| Processor |
Intel Atom E3940, 1.6 GHz, 4 cores |
| Memory |
4 GB DDR4 |
| Storage |
64 GB SSD |
| Operating System |
Windows 10 Enterprise 2016 LTSB, 64-bit, MUI |
| Supply Voltage |
24 V DC |
| Power-Failure Buffer |
5 ms |
| Industrial Ethernet |
2 independent RJ45 ports, 100/1000 Mbps |
| PROFINET Interfaces |
2 |
| USB |
2 × USB 3.0 |
| Display Interface |
1 × DisplayPort |
| Ethernet Protocol |
TCP/IP |
| Status LEDs |
1 power LED and 3 user LEDs |
| Monitoring |
Temperature monitoring and watchdog |
| Cooling |
Fanless |
| Operating Temperature |
0 °C to 55 °C |
| Relative Humidity |
5% to 85% at 30 °C, non-condensing |
| Dimensions |
85 × 85 × 41 mm |
| Approvals |
CE and UL |
| Mounting Accessories |
Not included; ordered separately |
| Country of Origin |
Germany |

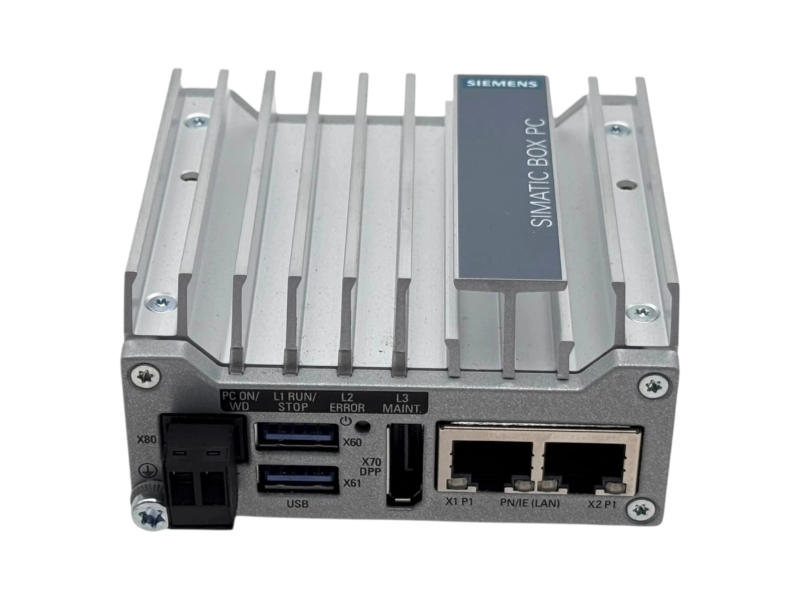

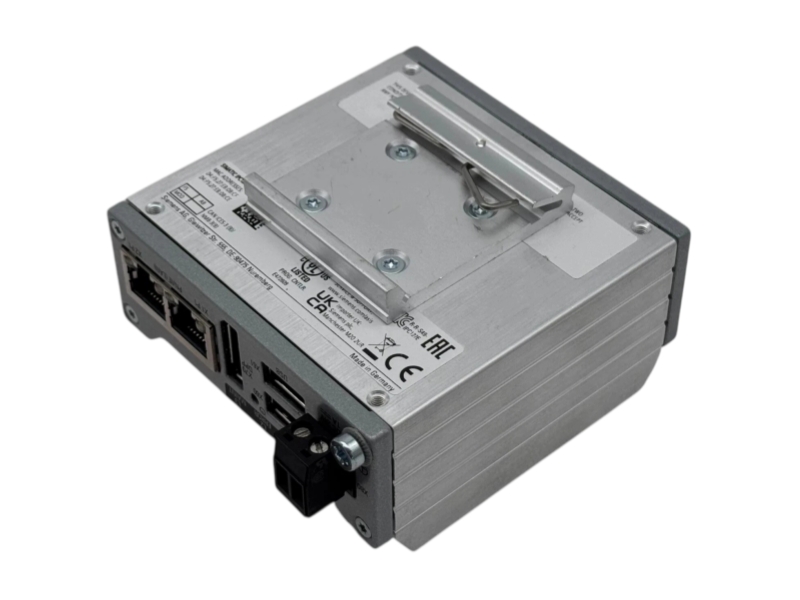

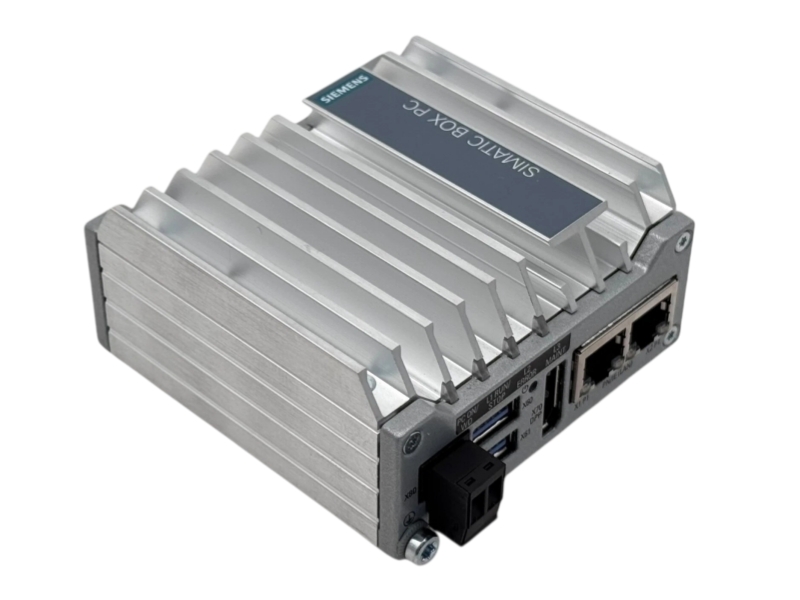

Product Photo Evidence
System Fit and Applications
| Control Platform |
PC-based automation and machine-level computing |
| System Role |
Runs Windows-based industrial applications and supports data acquisition, gateway, visualization or edge tasks |
| Typical Applications |
Compact control cabinets, machine connectivity, edge computing and maintenance replacement |
| Procurement Focus |
Match the exact article number, operating-system image, hardware configuration, interfaces and installation arrangement |
Compatibility and Procurement Checks
- Confirm the complete 6AG4021-0AB11-1BA0 article number and label suffix.
- Review the Windows image, build, multilingual package and license condition.
- Check SSD contents, recovery media and current project backup.
- Match both Ethernet or PROFINET network configurations and assigned addresses.
- Verify USB and DisplayPort peripheral requirements.
- Confirm the 24 V DC supply, grounding and power-failure behavior.
- Review mounting accessories, cabinet clearance and thermal conditions.
- Request current product-label and packaging photographs before dispatch.
Lifecycle Note
The reviewed Siemens catalogs confirm the exact 6AG4021-0AB11-1BA0 configuration but do not publish a lifecycle classification for this complete article number. This page therefore does not assign Active, Phase Out Started, Product Cancellation or Discontinued wording. Lifecycle availability must be reviewed separately from hardware, operating-system and project compatibility.
Frequently Asked Questions
What does 6AG4021-0AB11-1BA0 identify?
It identifies Configuration 6 of the Siemens SIMATIC IPC127E compact industrial Box PC family.
Which processor and memory are installed?
The official catalog specifies an Intel Atom E3940 1.6 GHz four-core processor with 4 GB DDR4 memory.
Which operating system and storage are specified?
This configuration is listed with Windows 10 Enterprise 2016 LTSB, 64-bit, MUI and a 64 GB SSD.
Which interfaces are provided?
The catalog lists two independent 100/1000 Mbps RJ45 Ethernet interfaces, two USB 3.0 ports and one DisplayPort.
What is the official lifecycle status?
The reviewed Siemens catalog sources do not publish a lifecycle classification for this exact complete article number, so no lifecycle status is inferred here.
What should be checked before replacement?
Check the exact article number, operating-system image and license, SSD contents, interfaces, 24 V DC supply, mounting accessories and current project backup.
