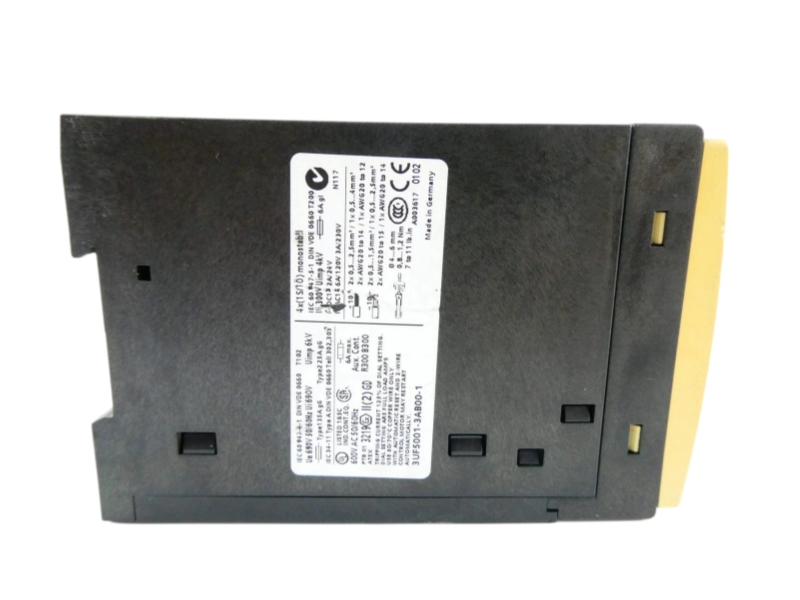

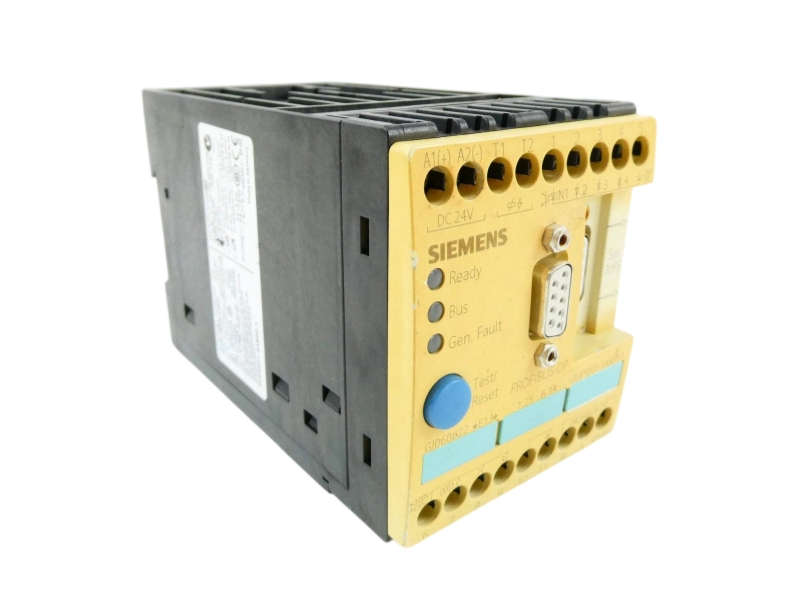

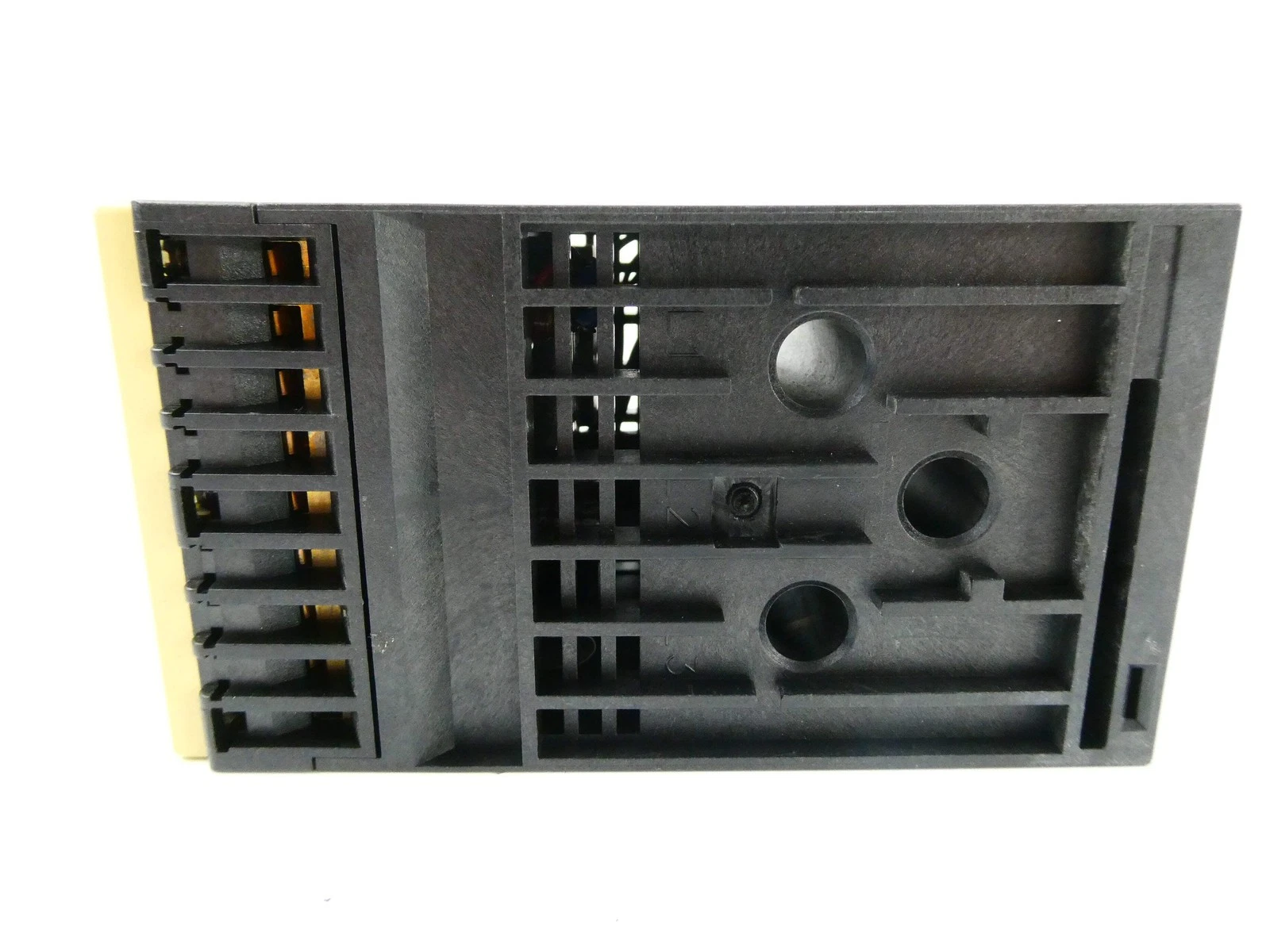

Siemens 3UF5001-3AB00-1 · PROFIBUS-DP · 24 V DC · Motor management
Siemens 3UF5001-3AB00-1 is a SIMOCODE-DP basic unit for motor management and protection in PROFIBUS-DP systems. The official product data identifies a 1.5 Mbaud RS485 interface, four freely parameterizable inputs, four monostable outputs, a 24 V DC control supply and an adjustable current range from 1.25 to 6.3 A. A thermistor input supports motor protection functions, while the 70 mm housing permits screw or snap-on mounting. For replacement, buyers should verify the complete suffix, supply voltage, relay behavior, current range, PROFIBUS addressing, thermistor wiring, project parameters and the documented SIMOCODE pro conversion components.
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 3UF5001-3AB00-1 |
| Product Type | SIMOCODE-DP basic unit |
| Communication Interface | PROFIBUS-DP, RS485 |
| Maximum PROFIBUS Rate | 1.5 Mbaud |
| Control Supply | 24 V DC |
| Adjustable Current Range | 1.25 to 6.3 A |
| Digital Inputs | 4, freely parameterizable |
| Outputs | 4, monostable |
| Thermistor Input | Yes |
| Protection Class | IP20 |
| Mounting | Screw and snap-on mounting |
| Dimensions | 85 × 70 × 132.5 mm |
| Country of Origin | Germany |
| System Fit | Legacy SIMOCODE-DP motor management installations using PROFIBUS-DP |
| Typical Applications | Motor protection, motor starter supervision, current monitoring and control-station integration |
| Maintenance Use | Replacement of the exact 24 V DC, 1.25 to 6.3 A basic unit after parameter and wiring review |
| Configuration Focus | PROFIBUS address and baud rate, supply voltage, current range, thermistor input, output behavior and parameter set |
This exact order code should not be treated as universally interchangeable with a similar series model. Before purchase or replacement, verify:
Siemens publishes a conversion list from this SIMOCODE-DP basic unit to SIMOCODE pro components, including 3UF7020-1AB01-0, 3UF7101-1AA00-0 and 3UF7935-0AA00-0. Treat the conversion as an engineering project rather than a drop-in swap.
The reviewed Siemens conversion document confirms 3UF5001-3AB00-1 as an old SIMOCODE-DP order code and provides a SIMOCODE pro conversion combination. It does not display a current lifecycle label for this exact code, so no Active, Classic, Obsolete or Discontinued status is inferred.
It identifies a SIMOCODE-DP basic unit with 24 V DC supply, 1.25 to 6.3 A current range and PROFIBUS-DP communication.
The official product data lists four freely parameterizable inputs and four monostable outputs.
Yes. The official data includes an input for thermistor motor protection.
The reviewed Siemens conversion document does not show a current lifecycle label for the exact order code, so no discontinuation wording is inferred.
No. Supply, current range, wiring, PROFIBUS configuration, accessories and the application parameter set require engineering review.
Yes. Request clear photos of the complete unit, front label, terminal markings, PROFIBUS interface, enclosure and packaging.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Stockoems supports industrial spare-parts purchasing with a practical review process covering order-code identity, installed-system context, visible condition and export handling. For 3UF5001-3AB00-1, buyers can provide label photos, cabinet information and project requirements so our team can organize a clearer compatibility and condition review before dispatch.
A useful procurement check goes beyond matching a short model name. Our team reviews the complete suffix, visible hardware features, connector arrangement and the buyer’s installation notes. The following workplace photographs show three different activities used during this process: reading the unit label, comparing cabinet wiring with technical documentation, and jointly checking module information before commercial confirmation.
| Review Area | Procurement Value |
|---|---|
| Complete Model Identity | Full order codes and suffixes are compared to reduce the risk of receiving a similar but incompatible configuration. |
| Installed-System Context | Hardware, firmware, software, operator-panel and field-connection details can be included in the pre-order review. |
| Visible Condition Evidence | Photos can document the enclosure, label, ports, accessories, packaging and other visible features of an available unit. |
| Clear Order Coordination | Quantity, destination, inspection requests, warranty scope and delivery options are consolidated before shipment. |
| Protective Export Handling | Packing is selected with sensitive industrial electronics and the planned international route in mind. |
Provide the exact part number, quantity, destination and installed-system details.
Labels, connectors, physical condition and requested technical checkpoints are examined.
Availability, inspection scope, warranty and shipping choices are organized for approval.
The unit is prepared for the chosen route with supporting shipment documentation.
For the strongest compatibility review, send clear photographs of the installed nameplate, adjacent connectors and cabinet position together with any available STEP 7 project or maintenance record details.
