Product Overview

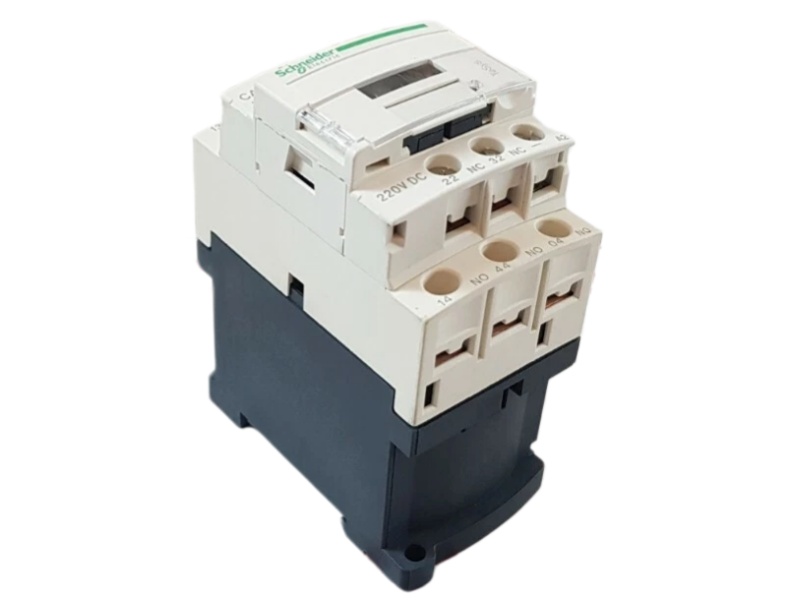

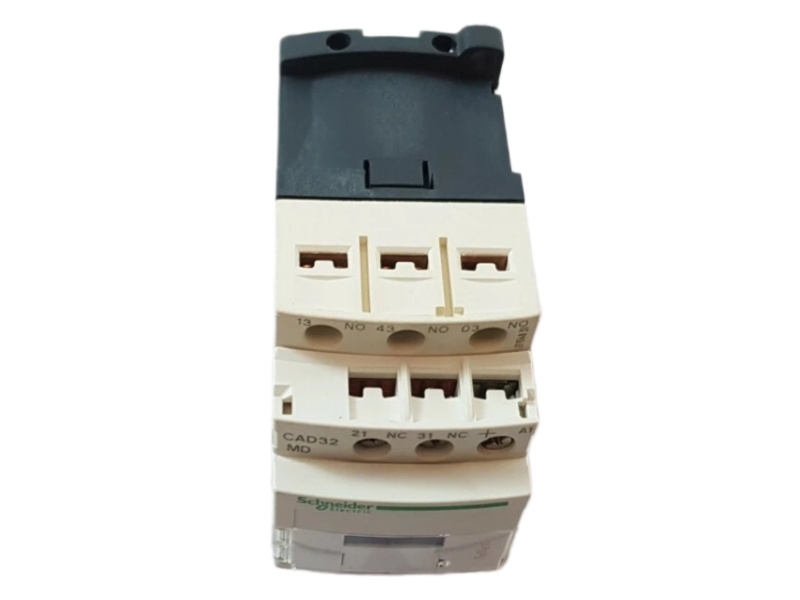

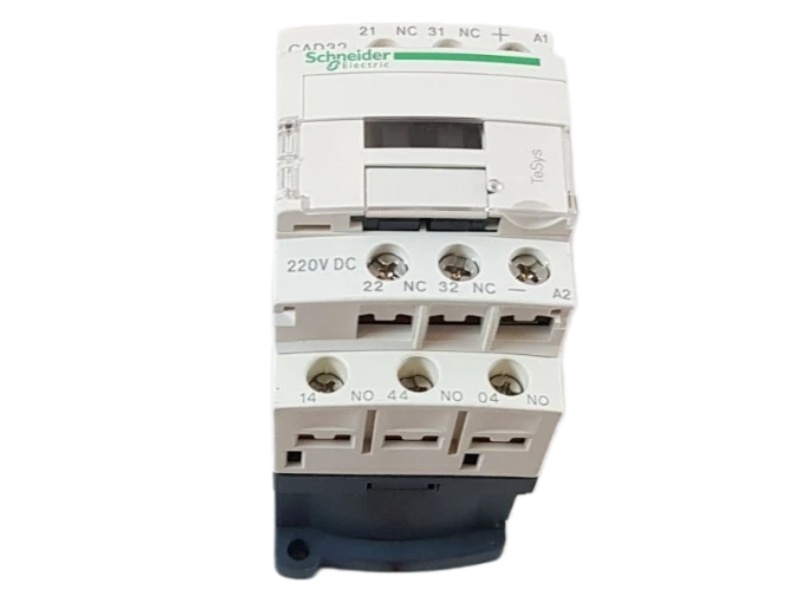

The Control Relay CAD32MD Schneider is a TeSys Deca control relay with 3 NO and 2 NC contacts. It features a 220 V DC control circuit, screw clamp terminals, and robust mechanical durability for industrial applications.

Technical Data Summary

Contact Configuration: Features 3 normally open (NO) and 2 normally closed (NC) poles for versatile control applications.

Control Circuit: Operates on 220 V DC standard control voltage with wide operational limits from -40°C to 70°C.

Electrical Ratings: Rated insulation voltage of 690 V AC with conventional thermal current of 10 A at 60°C.

Making Capacity: Provides 140 A AC and 250 A DC making capacity conforming to IEC 60947-5-1 standards.

Mechanical Durability: Offers 30 million mechanical cycles with maximum operating rate of 180 cycles per minute.

Termination Type: Equipped with screw clamp terminals accepting 1-4 mm² flexible or solid cables with 1.2 Nm tightening torque.

FAQ

Q1: What is the contact configuration of the CAD32MD?

A1: It features a pole contact composition of 3 normally open (NO) and 2 normally closed (NC) contacts.

Q2: What is the control circuit voltage rating?

A2: The control circuit type is DC standard with a rated control circuit voltage of 220 V DC.

Q3: What are the rated making capacities?

A3: It has an Irms rated making capacity of 140 A for AC circuits and 250 A for DC circuits, conforming to IEC 60947-5-1.

Q4: What is the mechanical durability of this control relay?

A4: The CAD32MD offers a mechanical durability of 30 million cycles with a maximum operating rate of 180 cycles per minute.

Q5: What type of terminals does it use and what is the tightening torque?

A5: It uses screw clamp terminals accepting 1-4 mm² cables, with a tightening torque of 1.2 Nm using Philips No 2, flat Ø 6 mm, or Pozidriv No 2 screwdrivers.
