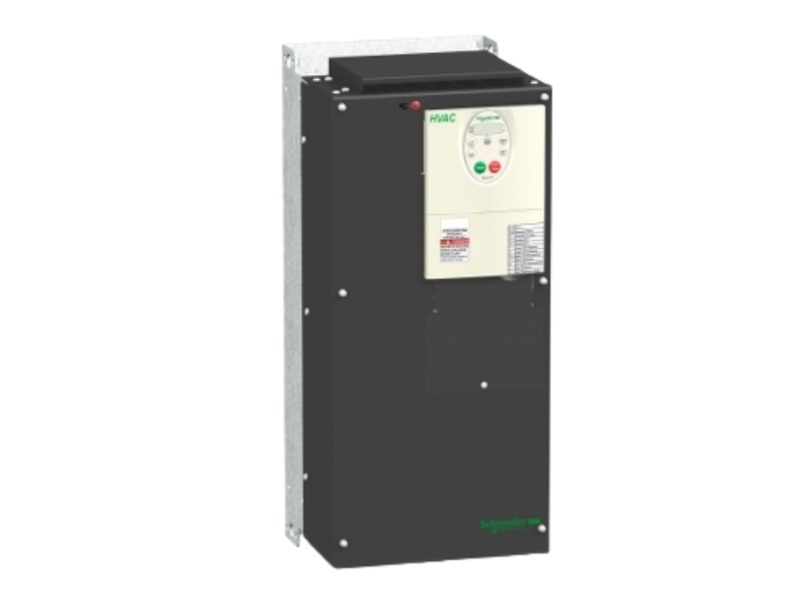

The ATV212HD45N4 Schneider Variable Speed Drive is a high-efficiency 4.5 kW variable speed drive specifically engineered for HVAC applications in commercial buildings. Designed to control three-phase asynchronous motors, this drive operates on a voltage range of 380V to 480V AC and features IP21 protection along with integrated EMC filtering. The Variable speed drive ATV212HD45N4 incorporates advanced eco-energy technology that can reduce energy consumption by up to 70% compared to conventional control systems, making it particularly suitable for heating, ventilation, air conditioning, and pumping applications where energy efficiency is crucial.

A key innovation in the Schneider Motor Drives ATV212HD45N4 is its cable temperature rise reduction technology, which enables immediate and disturbance-free operation without requiring additional components like line chokes or DC chokes to manage current harmonics. Weighing 38.1 kg with compact dimensions of 240mm wide × 550mm high × 244mm deep, the drive is designed for vertical panel mounting using four fixing holes with a ±10° installation tolerance. The physical design of it ensures reliable performance in commercial building environments while optimizing space utilization.

The Drive Schneider ATV212HD45N4 offers seamless integration capabilities through standard communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet, allowing easy adaptation to various building management systems. Optional motor chokes are available to extend maximum cable lengths between the drive and motor while minimizing disturbances at motor terminals. Certified to international standards including CE, UL, and CSA, it meets rigorous safety and EMC requirements, ensuring global compliance.

Combining advanced energy-saving technology with reliable performance, the Drive Schneider ATV212HD45N4 represents an optimal solution for modern building automation. Its comprehensive features, including harmonic mitigation without additional components and built-in communication capabilities, make it an intelligent choice for fluid management applications. The drive's design focuses on delivering sustainable performance while maintaining operational reliability in demanding HVAC applications, supporting both environmental goals and operational efficiency in commercial buildings.
