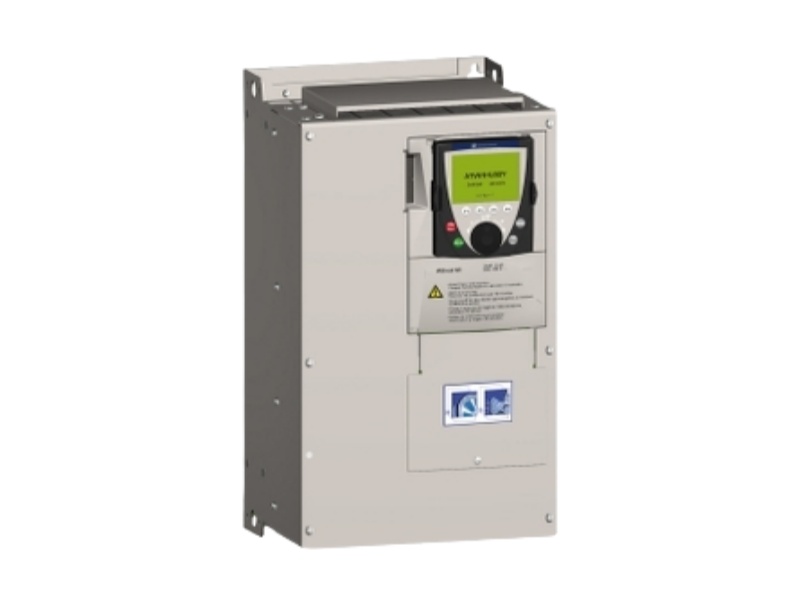

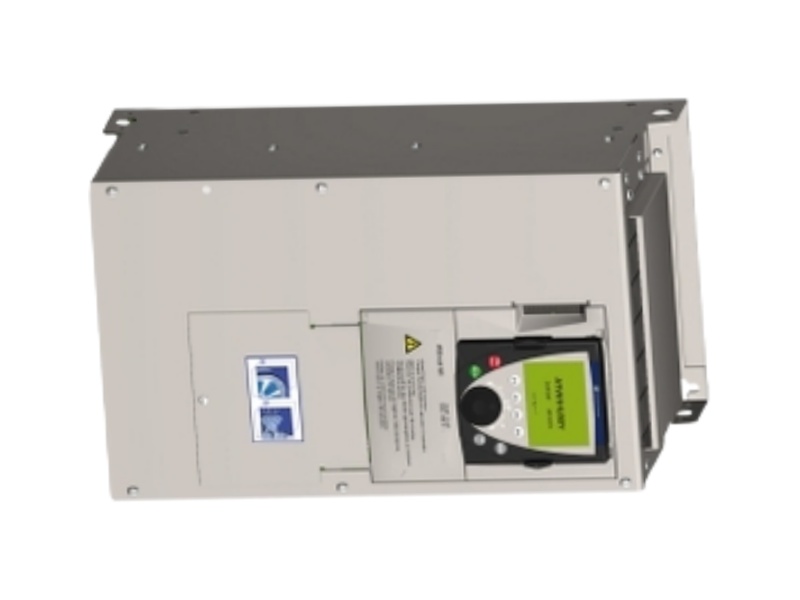

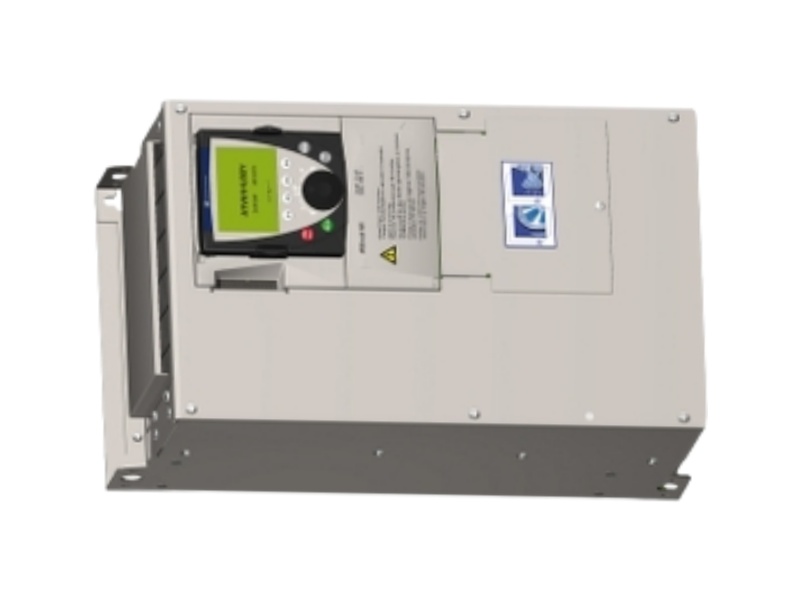

The Variable speed drive ATV61HD22N4Z Schneider requires specific mounting considerations to ensure optimal performance and longevity in industrial environments. Proper installation begins with mounting the unit vertically on a suitable surface, ensuring adequate clearance around the drive for proper air circulation from bottom to top. The ATV61HD22N4Z Schneider  Inverter 22KW 380V must not be positioned near heating elements or other heat-producing equipment that could compromise its thermal management system. Maintaining sufficient free space around the unit is crucial for the natural convection cooling process that protects the drive's internal components from overheating.

Environmental protection is essential for the reliable operation of the Schneider ATV61HD22N4Z Variable Speed Drive, particularly in challenging conditions. When installed in environments with dust, corrosive gases, high humidity, or risk of liquid splashing, the drive requires a dust and damp proof metal enclosure with IP54 protection. This protective measure allows it to operate effectively in enclosures where internal temperatures may reach up to 50°C. The use of special IP54 rated filters provides additional protection while maintaining proper ventilation.

Installation procedures for the ATV61HD22N4Z Drive Schneider include specific steps to ensure proper functionality. During mounting, the blanking cover must be removed from the top of the drive to facilitate correct air flow and heat dissipation. The ATV61HD22N4Z Drive Schneider design incorporates thermal management features that work in conjunction with these installation requirements to maintain operational stability. These precautions are particularly important for maintaining the performance specifications of the heavy-duty drive in variable industrial conditions.

The mounting recommendations for the SCHNEIDER ATV61HD22N4Z emphasize the relationship between proper installation and long-term reliability. By following these guidelines regarding orientation, spacing, and environmental protection, users can maximize the operational life of it. These installation practices ensure that the drive maintains its performance characteristics while operating in the demanding conditions for which it was engineered, providing consistent motor control in heavy-duty applications.
