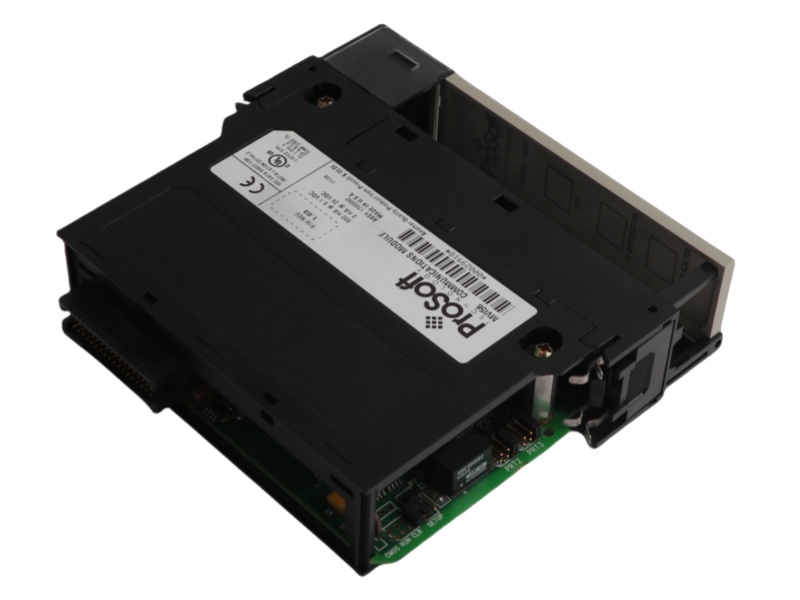

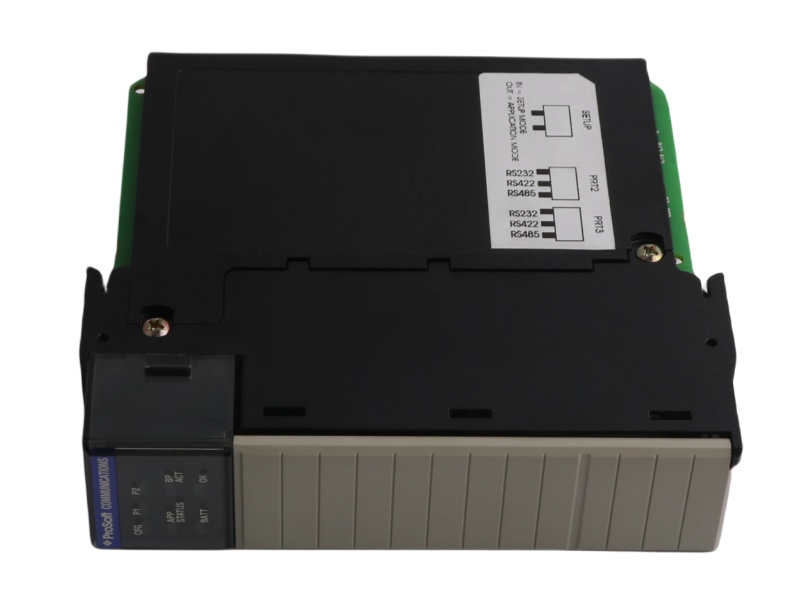

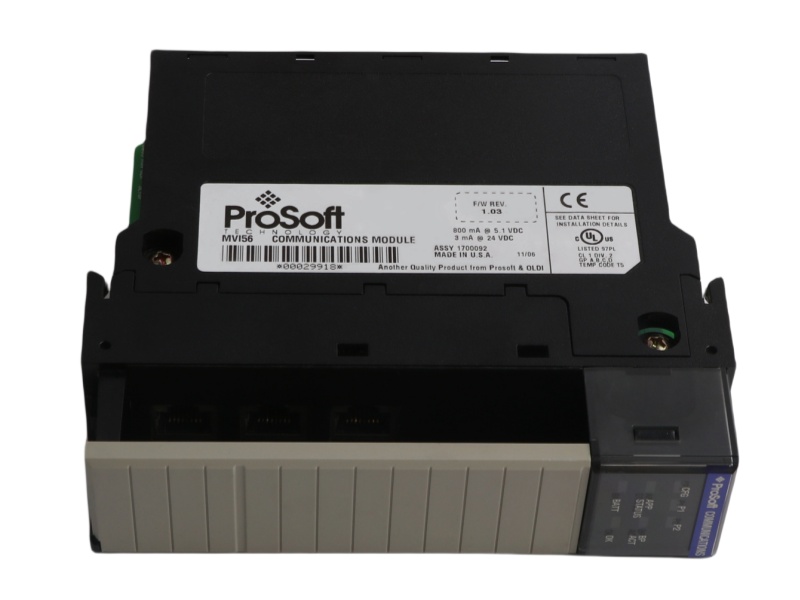

Prosoft MVI56-ADM Communication Module

Inquiry now

MVI56-ADM Product datasheet

Model number:	MVI56-ADM	Module Type：	Communication Module
Manufacture:	Prosoft	Condition：	Brand New
Range of Product:	ControlLogix	Lead time：	In Stock
Weight:	0.22kg	HS CODE：	8537101190
Dimension:	3.5x14x14.5cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

MVI56-ADM Description

The Prosoft MVI56-ADM Communication Module is a programmable application development module designed for Allen-Bradley ControlLogix systems, featuring advanced 'C' programming capabilities for custom industrial automation solutions. This versatile module operates at baud rates from 110 to 115,200 and consumes 800mA at 5.1VDC/3mA at 24VDC, providing efficient backplane integration. The Application Development Module Communication Module MVI56-ADM Prosoft serves as a powerful I/O interface, enabling seamless data transfer between module and processor while protecting proprietary algorithms through its customizable programming environment. Its compatibility with ControlLogix platforms makes it ideal for complex ASCII data communication tasks.

Equipped with two serial ports (P1/P2) and a dedicated CFG configuration port, the MVI56-ADM Programmable Application Development Module supports RS-232 connections with 9-meter cable limits. The module includes a comprehensive API library and Digital Mars C++ compiler, allowing engineers to develop and deploy custom applications directly on the ControlLogix platform. LED indicators provide real-time monitoring of backplane transfers, serial port activity, and application status. The ProSoft MVI56-ADM's robust architecture includes application-specific ports (PRT1/PRT2) for specialized industrial communication requirements.

The MVI56-ADM PLC Logic Expansion Modules operates reliably in harsh conditions, with an operational temperature range of 0°C to 60°C (32°F to 140°F) and 5-95% humidity. Its rugged design withstands 30G operational shock, 50G non-operational shock, and 5G vibration (10-150Hz). The module meets stringent international standards including ATEX, CE, GOST-R, C/UL Class 1, and Korean KC certifications, ensuring global compliance for industrial deployments.

As part of ProSoft's ADM series, the Communication Module MVI56-ADM Prosoft delivers unmatched flexibility for custom protocol implementation and data processing tasks. Its single-slot 1756 backplane compatibility and portable code structure make it an efficient solution for upgrading existing ControlLogix systems. The module's combination of programming power, communication versatility, and industrial durability positions it as a premium choice for advanced automation challenges requiring tailored communication solutions.
