FS-PDC-CPSET Product datasheet
|
Model number: |
FS-PDC-CPSET |
|
Module Type： |
Power Distribution Cable |
|
Manufacture: |
Honeywell |
|
Condition： |
Brand New |
|
Range of Product: |
Safety Manager |
|
Lead time： |
In Stock |
|
Weight: |
0.4kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
24x18.8x6.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
FS-PDC-CPSET Functional Description

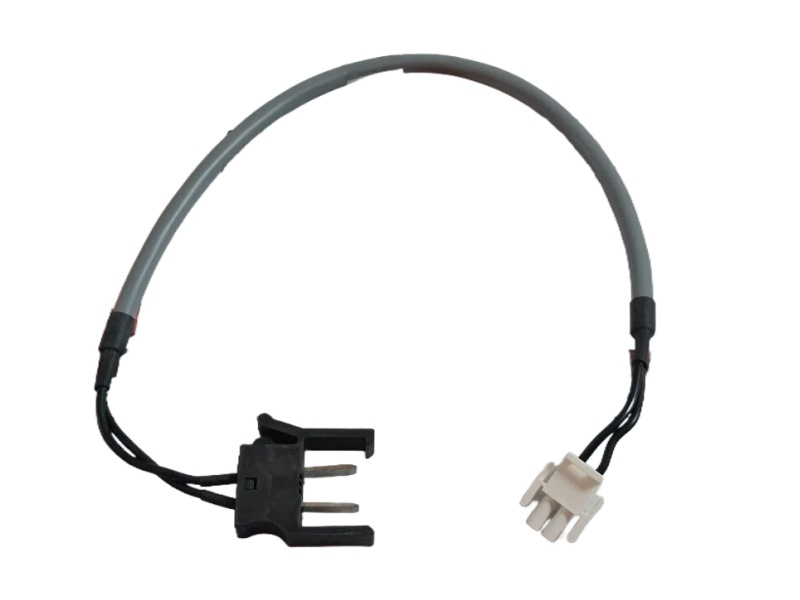

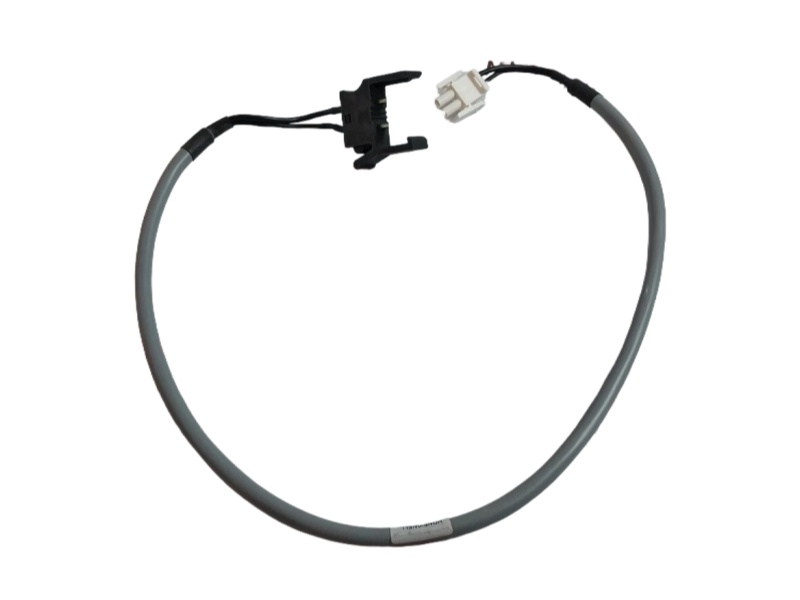

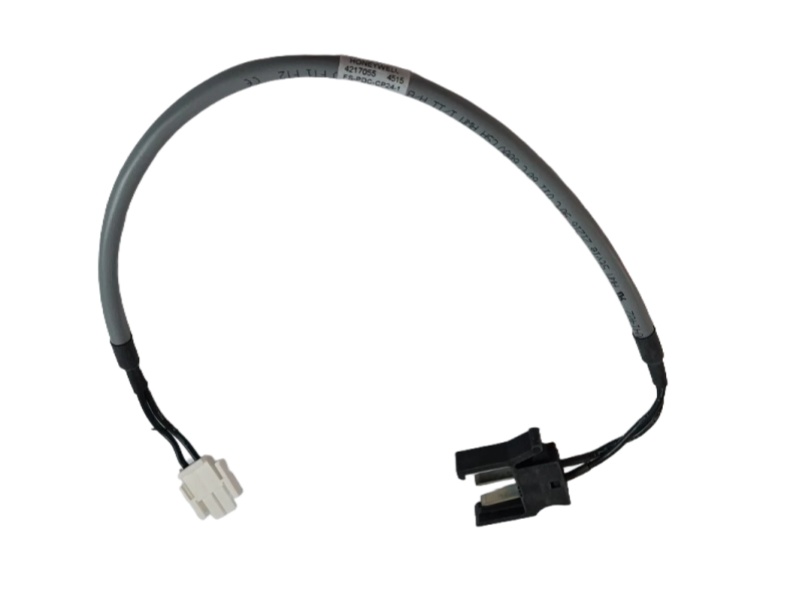

The Power Distribution Cable HONEYWELL FS-PDC-CPSET is a specialized power distribution cable set designed to transfer 24 V DC power from MB0001 mains bus bars to controller chassis in automation systems. This robust set includes two power cables measuring 54 cm (FS-PDC-CP24-1) and 77 cm (FS-PDC-CP24-2) in length, each featuring CC600 2 x 2.5 mm² conductors for reliable power delivery. The FS-PDC-CPSET Honeywell POWER DISTRIBUTION CABLE SET holds UL and CSA approvals with FM certification pending, ensuring compliance with international safety standards for industrial applications.
This cable set incorporates user-friendly connectors including a 2-pole Squeeze-To-Release type (D-TAB-200-STR) on the bus bar side and secure mate-n-lock connectors on the SM Controller side. The Power Cable FS-PDC-CPSET Honeywell is specifically engineered to support dual Control Processor configurations, providing efficient and redundant power distribution for critical control systems. Its design emphasizes easy installation and maintenance while ensuring reliable connections in demanding industrial environments.
The FS-PDC-CPSET Power Distribution Cable Set Honeywell demonstrates excellent engineering with compact shipping dimensions of 3.5x22.5x17.5 cm and a weight of 0.38 kg, facilitating convenient handling and installation. This power distribution solution is designed for seamless integration with Honeywell's control platforms, ensuring stable operation and system reliability. It represents the company's commitment to providing high-quality power distribution components for industrial automation.
Designed for reliability and performance, the DCS Module Honeywell FS-PDC-CPSET ensures continuous power delivery to critical processing equipment in various industrial applications. Its robust construction and standardized connectors make it suitable for both new installations and system upgrades. It continues to serve as a trusted component in automation systems worldwide, delivering efficient power management solutions for modern industrial control environments.
