CC-PDIS01 51405042-176 Product datasheet

CC-PDIS01 51405042-176 Functional Description

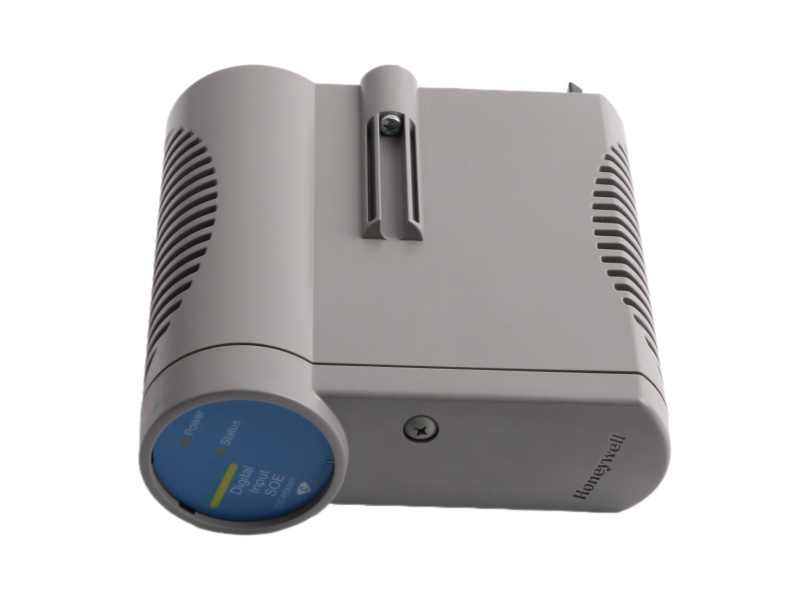

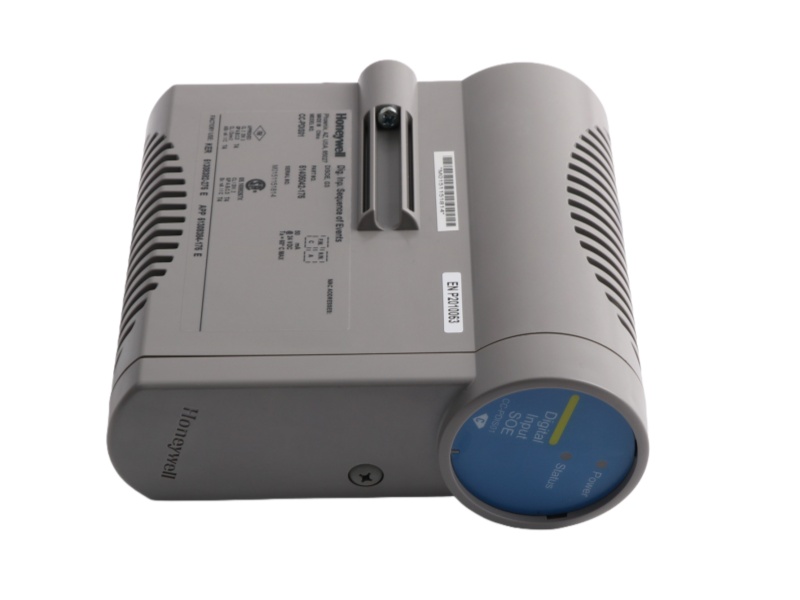

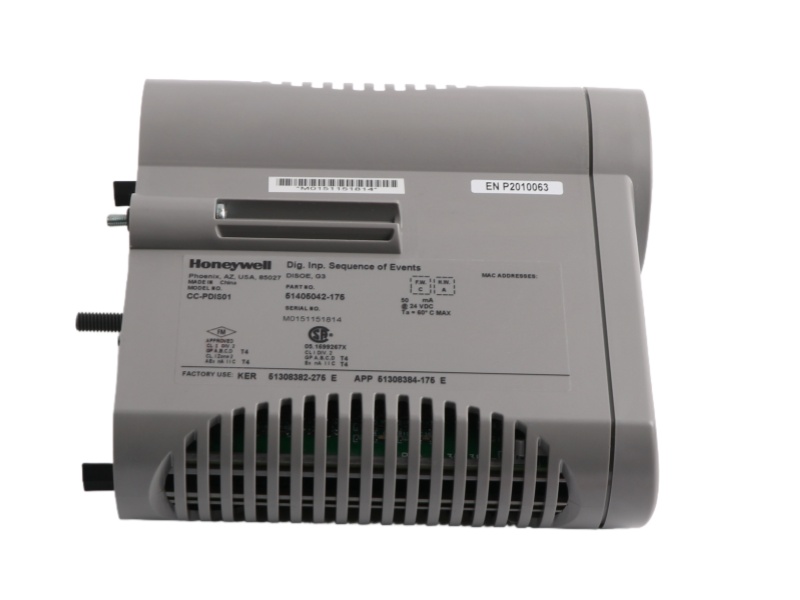

The Honeywell CC-PDIS01 DIGITAL INPUT Module 51405042-176 is a sophisticated digital input module designed for industrial control systems, featuring 32 input channels that accept 24VDC discrete signals with precise 1ms resolution for Sequence of Events recording. This robust module offers three operational modes: Normal (20ms PV scan), Sequence of Events (1ms SOE resolution), and Low Latency (5ms PV scan), providing flexibility for various application requirements. The Honeywell CC-PDIS01 51405042-176 PDF incorporates extensive internal diagnostics for data integrity and open-wire detection in Normal mode, ensuring reliable performance in critical automation environments.

Weighing 0.36 kg, the Digital Input Module Honeywell CC-PDIS01 51405042-176 operates within a wide DI power voltage range of 18 to 30 VDC, with ON sense parameters of 13 VDC minimum or 3 mA minimum, and OFF sense parameters of 5 VDC maximum or 1.2 mA maximum. The module features optional redundancy capabilities and offers both internal and external field power selection, including onboard excitation power that eliminates the need for marshalling power. The Honeywell CC-PDIS01 51405042-176 provides non-incendive field power and supports direct/reverse input indication with galvanic isolation for enhanced safety.

The advanced diagnostic capabilities of the DCS Modules Honeywell CC-PDIS01 51405042-176 include open-wire detection that identifies and annunciates field wire issues, preventing incorrect control actions by marking seemingly valid PVs from faulty channels as invalid. This module demonstrates Honeywell's commitment to engineering excellence by combining precise monitoring capabilities with robust construction suitable for demanding industrial environments. The Honeywell CC-PDIS01 51405042-176 represents a reliable solution for applications requiring accurate digital input processing and event sequencing.

Designed for seamless integration into modern control systems, the Honeywell 51405042-176 CC-PDIS01 ensures operational reliability through its comprehensive diagnostic features and flexible configuration options. Its ability to provide non-incendive field power and maintain data integrity makes it particularly valuable for safety-critical applications in process industries. The Components Control Board Honeywell CC-PDIS01 51405042-176 continues to serve as a trusted component in industrial automation, delivering precise digital input processing for manufacturing and process control systems worldwide.
