FS-PDC-IOSET Product datasheet
|
Model number: |
FS-PDC-IOSET |
|
Module Type： |
Power Distribution Cable |
|
Manufacture: |
Honeywell |
|
Condition： |
Brand New |
|
Range of Product: |
Safety Manager |
|
Lead time： |
In Stock |
|
Weight: |
0.4kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
24x18.8x6.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
FS-PDC-IOSET Functional Description

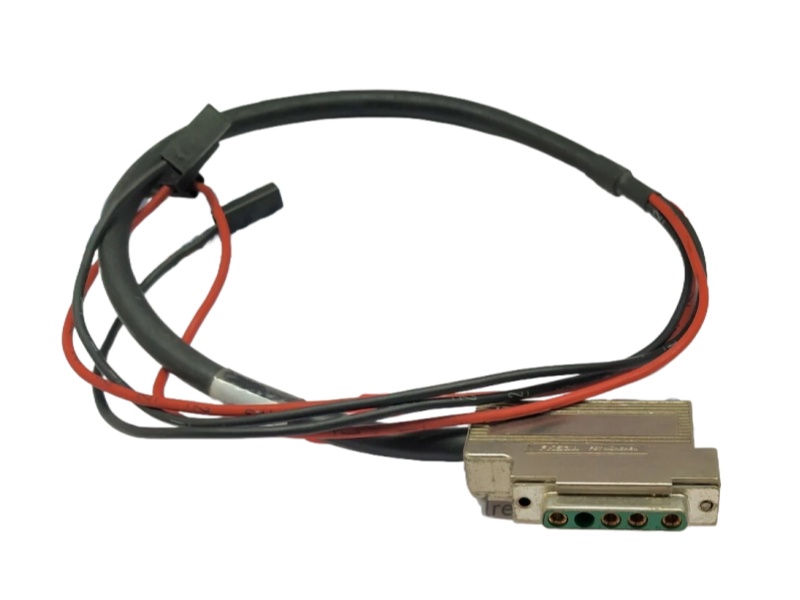

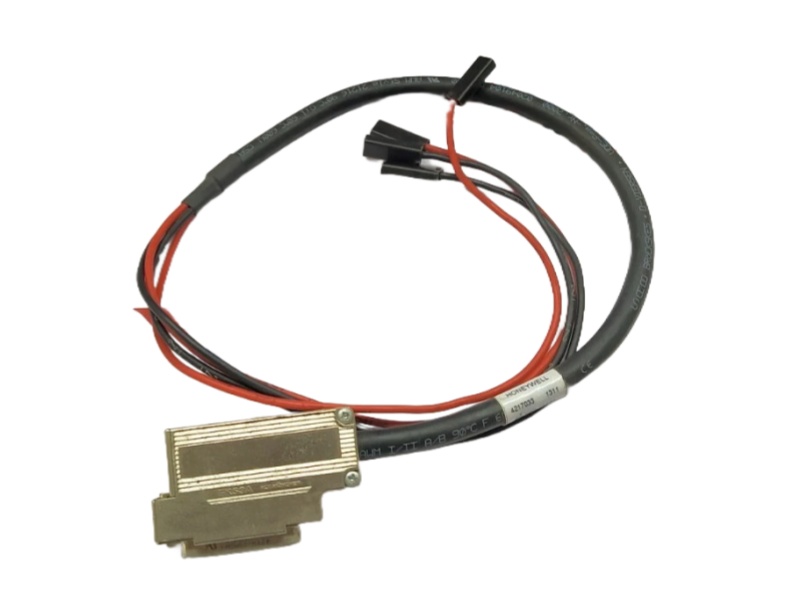

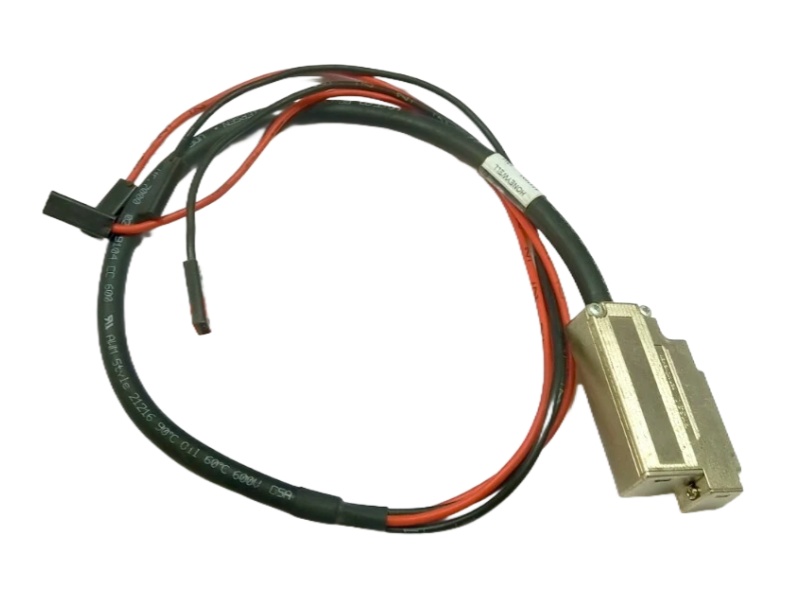

The HONEYWELL FS-PDC-IOSET PDF is a specialized power distribution cable set designed to transfer power at 24 V DC, 48 V DC, or 110 V DC from MB-0001 mains power rails to IO chassis in process control systems. This versatile solution ensures reliable power delivery across multiple voltage levels, supporting efficient operation of industrial automation equipment. The CABLE FS-PDC-IOSET Honeywell holds UL and CSA approvals with FM certification pending, demonstrating compliance with international safety and performance standards.
This cable set features CC 600 World 4 × 2.5 mm² cabling available in four specific lengths: 33 cm (FS-PDC-IOEP1a), 41 cm (FS-PDC-IOEP2a), 49 cm (FS-PDC-IOEP3a), and 57 cm (FS-PDC-IOIP1a), providing flexibility for various installation configurations. The Honeywell FS-PDC-IOSET incorporates user-friendly connectors including a 2-pole Squeeze To Release type (D-TAB-200-STR) on the bus bar side and low-profile 90° FM5W5 S female housing on the IO chassis side. These design features ensure secure connections while facilitating easy installation and maintenance.
The robust construction of the Power Distribution Cable Honeywell FS-PDC-IOSET ensures reliable performance in demanding industrial environments, maintaining stable power distribution to critical control system components. It represents Honeywell's commitment to engineering excellence, providing a standardized solution for power distribution in Experion PKS and other control platforms. Its flexible design accommodates various rack configurations and space constraints, making it suitable for both new installations and system upgrades.
Designed for seamless integration with Honeywell's automation ecosystem, the Honeywell FS-PDC-IOSET Power Distribution Cable Set enhances system reliability while simplifying power management in complex industrial applications. This product demonstrates Honeywell's focus on delivering practical solutions that address the power distribution needs of modern process control systems, ensuring operational efficiency and equipment protection across diverse industrial settings.
