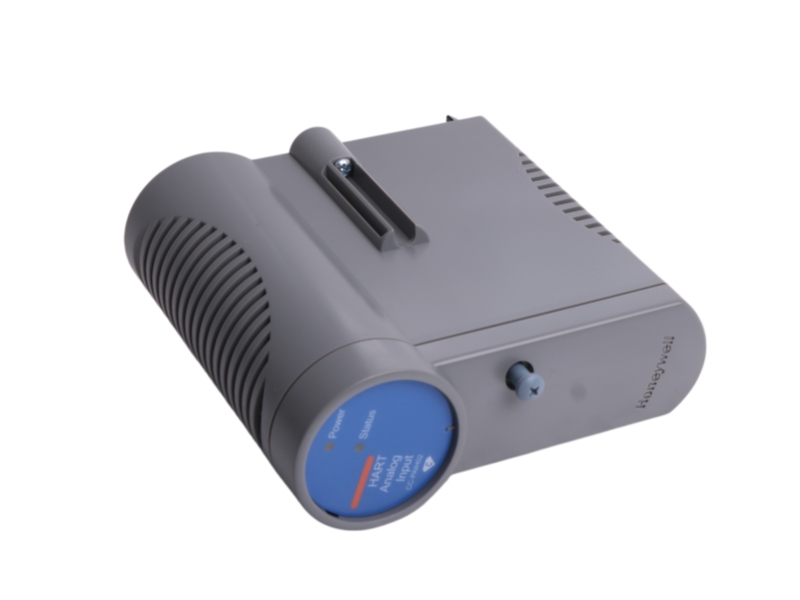

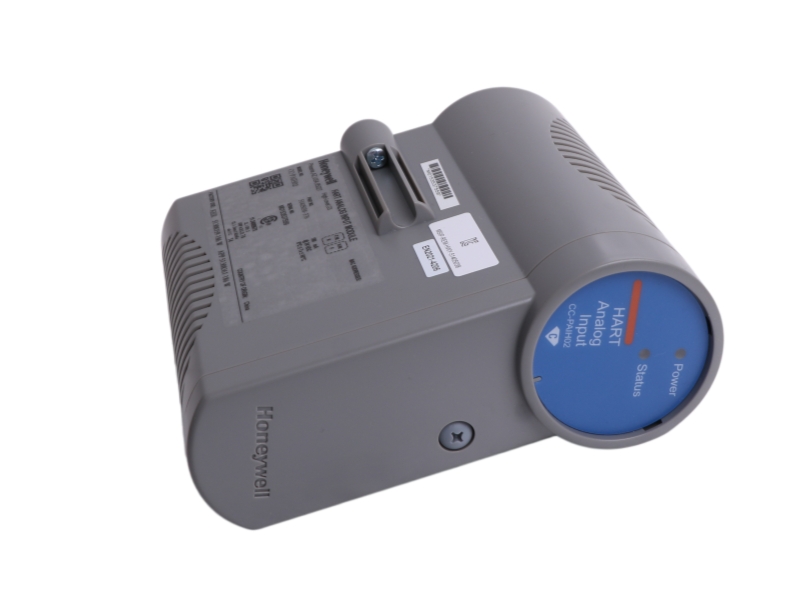

Honeywell CC-PAIH02 51405038-376 is a high-precision HART analog input module designed for Experion PKS systems, enabling reliable acquisition and conversion of field signals for advanced industrial process control.

Specifications

General

• Manufacturer: Honeywell
• Model: CC-PAIH02 51405038-376
• Product Type: HART Analog Input Module
• System Compatibility: Experion PKS / C300 controller systems

Input Characteristics

• Channels: up to 16 inputs (single-ended & differential)
• Input Types: 4–20 mA, 0–20 mA, ±10 V, ±5 V, ±1 V
• HART Support: HART 7 protocol, multidrop capability

Performance

• Resolution: 24-bit Delta-Sigma ADC
• Accuracy: ±0.05% of span
• Update Rate: ~50 ms per channel
• Response Time: as low as 10 ms (typical variant)
• Isolation: up to 1000 V RMS channel-to-channel

Electrical

• Power Supply: 24 VDC
• Power Consumption: ~1.2 W per channel

Mechanical

• Mounting: DIN rail or panel mounting
• Weight: approx. 0.3–0.42 kg

Environmental

• Operating Temperature: -40°C to +70°C (up to +85°C variant)
• Certifications: CE, UL, CSA (typical series approvals)
• Design: High immunity to electrical noise and harsh industrial conditions

Applications

• Process control systems: Acquires temperature, pressure, and flow signals in chemical and oil industries.
• Power generation: Supports real-time monitoring of plant instrumentation and control loops.
• SCADA systems: Enables accurate field data collection for centralized supervision.
• Manufacturing automation: Integrates sensors with PLC/DCS for precise process regulation.

• Smart instrumentation: Communicates with HART devices for diagnostics, configuration, and predictive maintenance.
