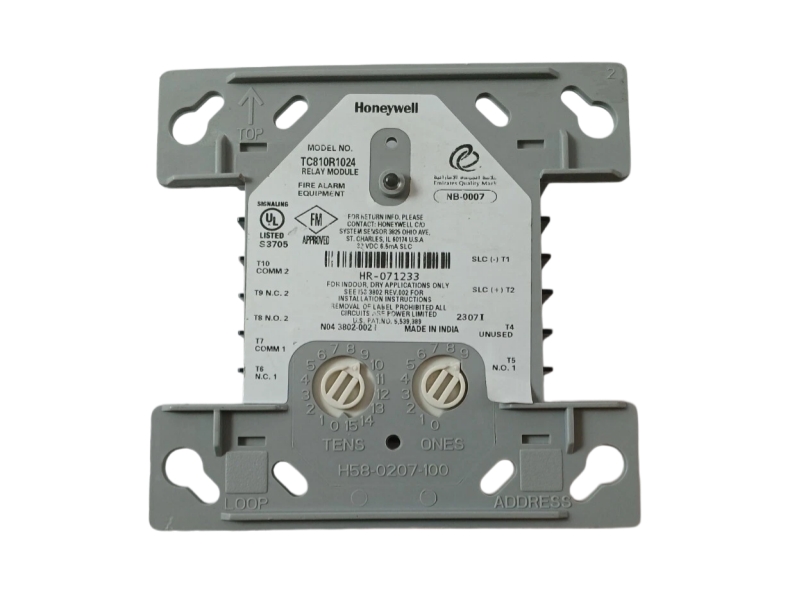

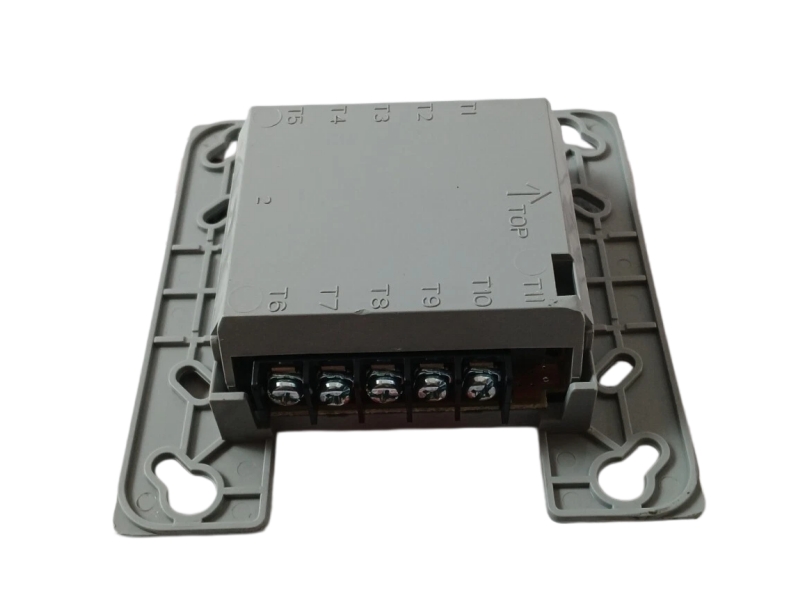

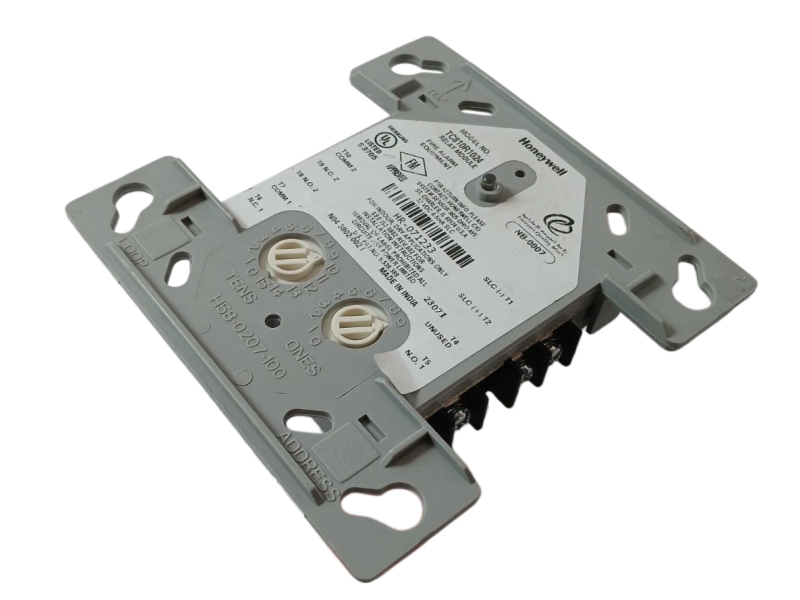

Honeywell TC810R1024 Control and Relay Modules

Inquiry now

TC810R1024 Product datasheet

Model number	TC810R1024
Manufacture	Honeywell
System	PLC
Condition	Brand New
Country of Origin	USA
HS Code	8537101190
After-Sales Support	12-months

TC810R1024 Overview

The Honeywell TC810R1024 is an addressable relay module with two Form-C dry contacts. It provides auxiliary device control (fans, dampers) and uses FlashScan® for high-speed communication on SLC loops.

Specifications

Normal Operating Voltage: 15 to 32 VDC

Maximum Current Draw: 6.5 mA (LED on)

Average Operating Current: 230 µA (direct poll); 255 µA (group poll)

EOL Resistance: Not used

Temperature Range: 32°F to 120°F (0°C to 49°C)

Humidity Range: 10% to 93% non-condensing

Dimensions: 4.5" H x 4" W x 1.25" D (114.3 x 101.6 x 31.75 mm)

Mounting Box: 4" square x 2.125" deep (101.6 x 53.975 mm)

Contact Ratings: 3A @ 30VDC (resistive), 0.9A @ 110/125VDC, 0.3A @ 125VAC (inductive)

Address Setting: Direct-dial rotary switches (01-159 for FlashScan, 01-99 for CLIP)

Enviromental Strength

Temperature Tolerance: Operates reliably from 32°F to 120°F (0°C to 49°C) in indoor fire alarm panels.
Humidity Resistance: Functions in 10% to 93% relative humidity, non-condensing, suitable for damp environments.
High Noise Immunity: Built-in EMF/RF rejection prevents false activations from electrical interference.
Heat-Resistant Plastic: Off-white face plate withstands moderate heat without deformation.
SEMS Screws: Clamping plates with captive screws simplify wiring and reduce loose hardware in enclosures.
Wide LED Viewing Angle: Easily visible status indication from multiple angles for quick inspection.
