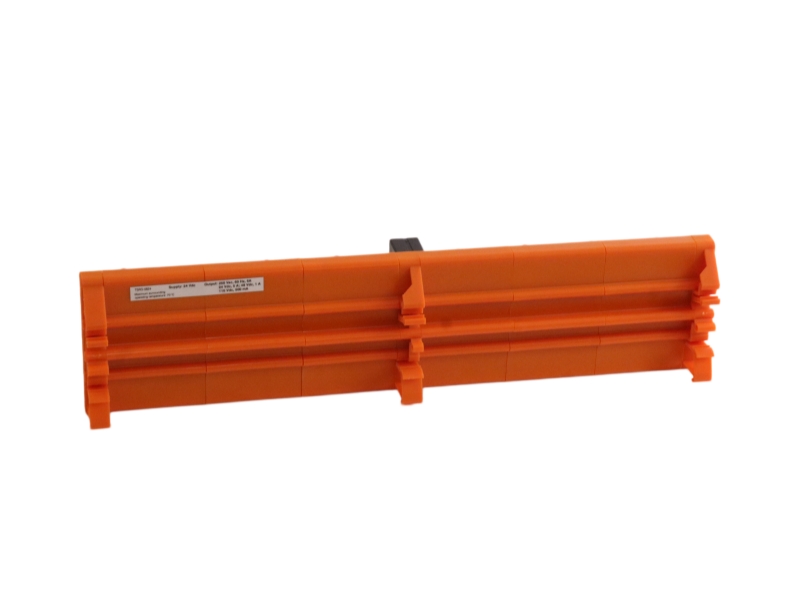

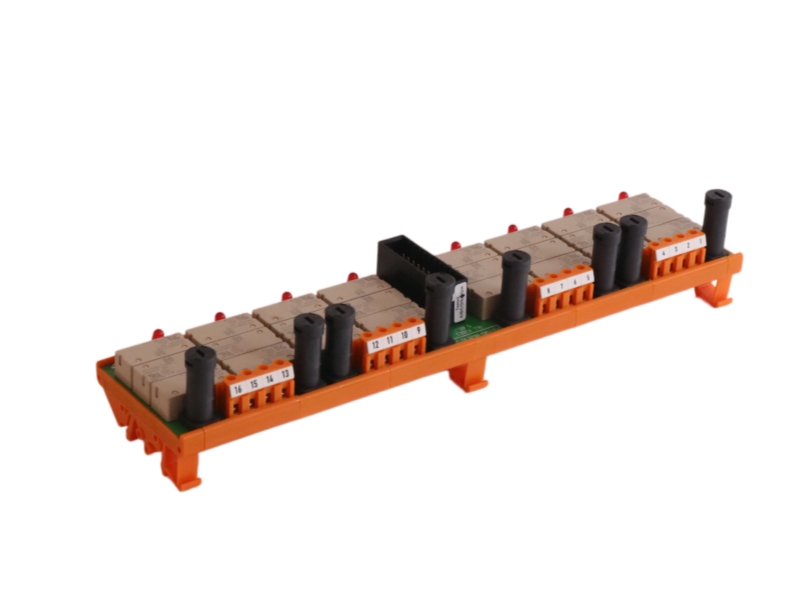

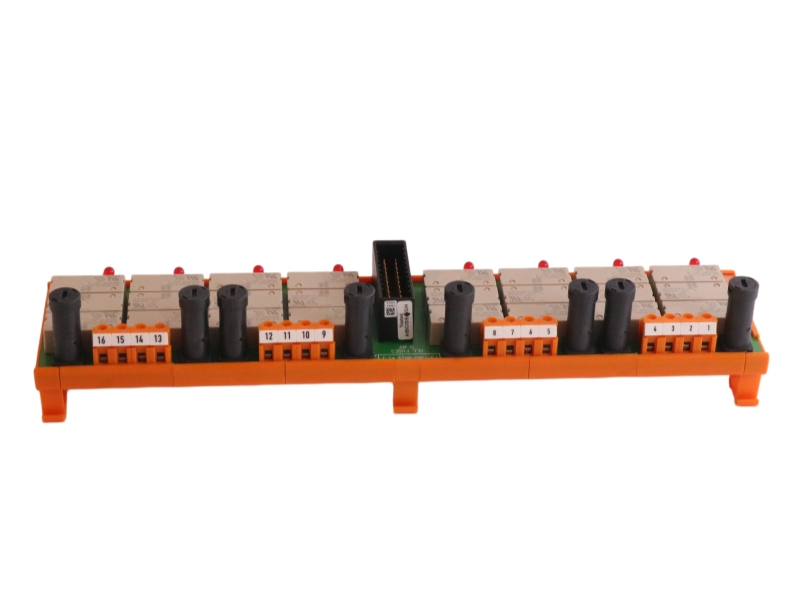

The Honeywell FS-TSRO-0824 is a SIL3-rated digital output field termination assembly, designed for safety systems, providing reliable relay control, fault-tolerant performance, and seamless integration in industrial automation environments.

Specifications

Model: FS-TSRO-0824
Type: Digital Output Field Termination Assembly

• Output Channels: 8 floating, non-commoned digital outputs
• Safety Rating: SIL3 compliant
• Nominal Voltage: 24 VDC (max 36 VDC)
• Input Current: ~40 mA at 24 VDC
• Relay Pick-up Voltage: 19.2 VDC
• Max Output Current: 5 A (fused)
• Max Output Voltage: 250 VAC / 250 VDC
• Relay Type: Normally open fused contacts
• Diagnostics: LED status indicators per channel
• Isolation: Electrical isolation for high reliability
• Mounting: DIN rail installation
• Operating Temperature: -40°C to +85°C (typical industrial range)
• Certifications: CE, UL, TÜV, CSA

Features and benefits

• High Safety Integrity: SIL3 certification ensures reliable operation in critical safety systems.
• Robust Output Design: 8 isolated relay outputs provide stable control of actuators and alarms.
• Strong Load Capability: Supports up to 5A output, suitable for industrial devices.
• Advanced Diagnostics: LED indicators enable quick fault detection and maintenance.

• Harsh Environment Ready: Wide temperature range and rugged design ensure long-term reliability.
