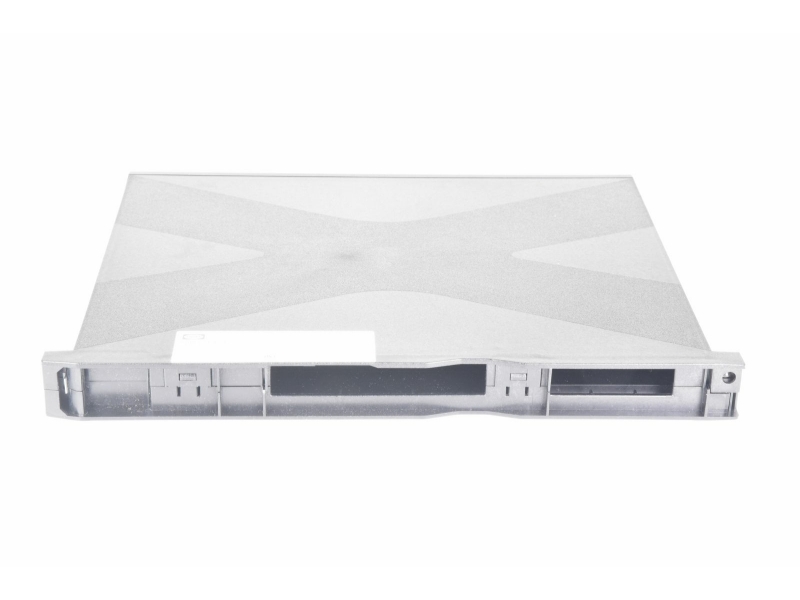

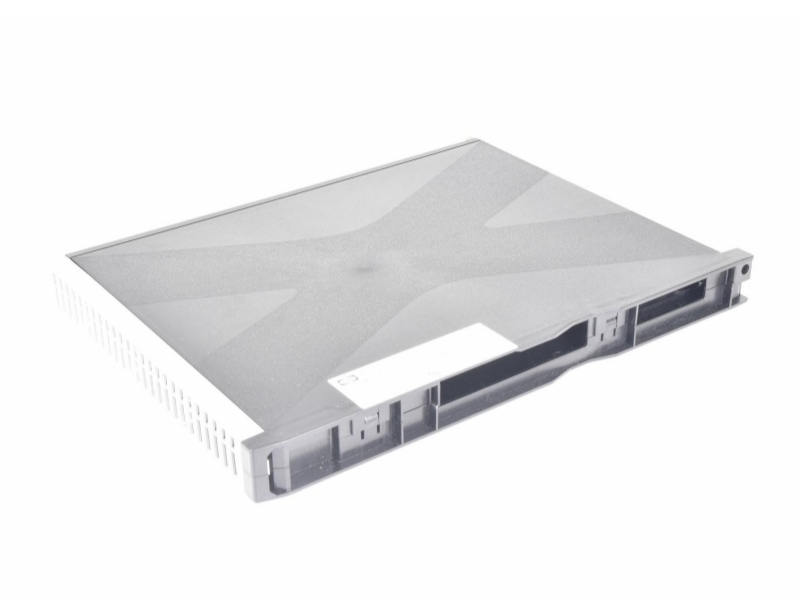

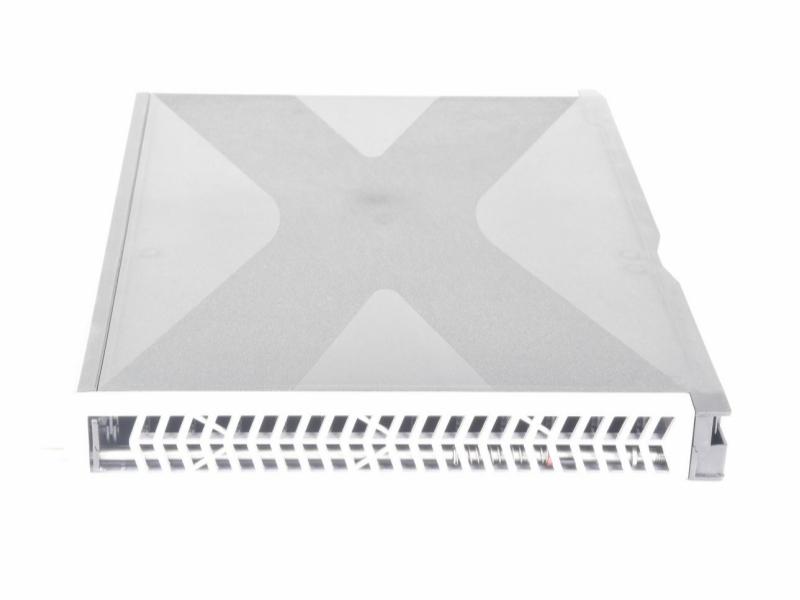

HIMA HIMax X-BLK03 is a blank filler module designed for HIMax racks, ensuring proper slot coverage, airflow management, and system integrity in safety-critical installations with modular expansion requirements.

Specifications

General

• Manufacturer: HIMA
• Model: HIMax X-BLK03
• Product Type: Blank / Dummy Module (slot cover)
• Platform: HIMax modular safety system

Mechanical & Installation

• Function: Covers unused slots in HIMax base plates
• Mounting: Plug-in installation in rack slot
• Compatibility: HIMax base plates (multi-slot configurations)
• Dimensions: Standard HIMax module size (~310 × 29 × 230 mm class)

Functional Role

• Ensures correct airflow and cooling within rack
• Maintains EMC shielding and system protection
• Prevents dust ingress and accidental contact

System Integration

• Supports modular expansion strategy
• Required for unused slots to maintain system stability
• Works alongside CPU, I/O, and communication modules

Safety & Reliability

• Contributes to overall system safety architecture
• Supports compliance with SIL-based system design (indirect role)
• Enhances long-term operational reliability

• Application
• Rack Slot Protection
  Covers unused positions to maintain enclosure integrity and prevent contamination.
• System Cooling Optimization
  Helps ensure proper airflow distribution inside HIMax cabinets for thermal stability.
• Safety System Installation
  Used in safety PLC setups where unused slots must be securely sealed.
• Modular Expansion Planning
  Keeps spare slots available for future I/O or CPU module additions.

• Industrial Control Cabinets
  Applied in oil & gas, power, and process industries for organized rack management.
