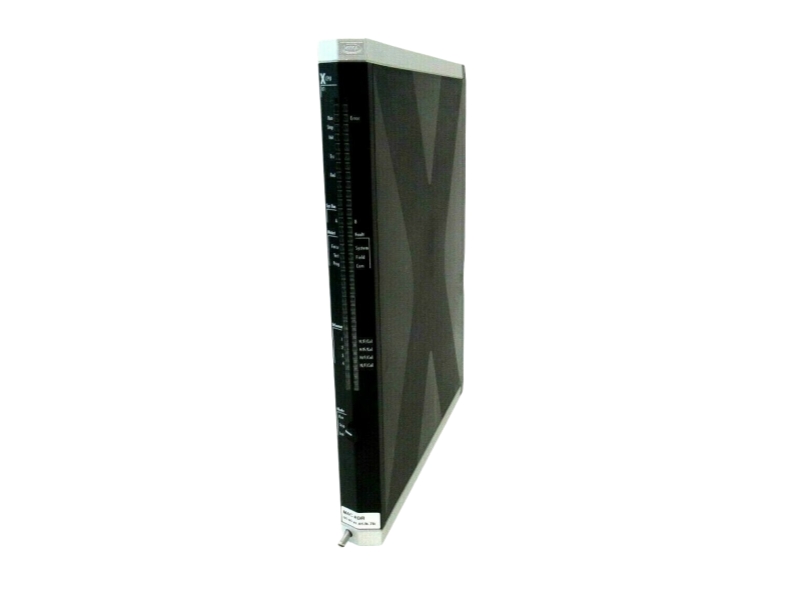

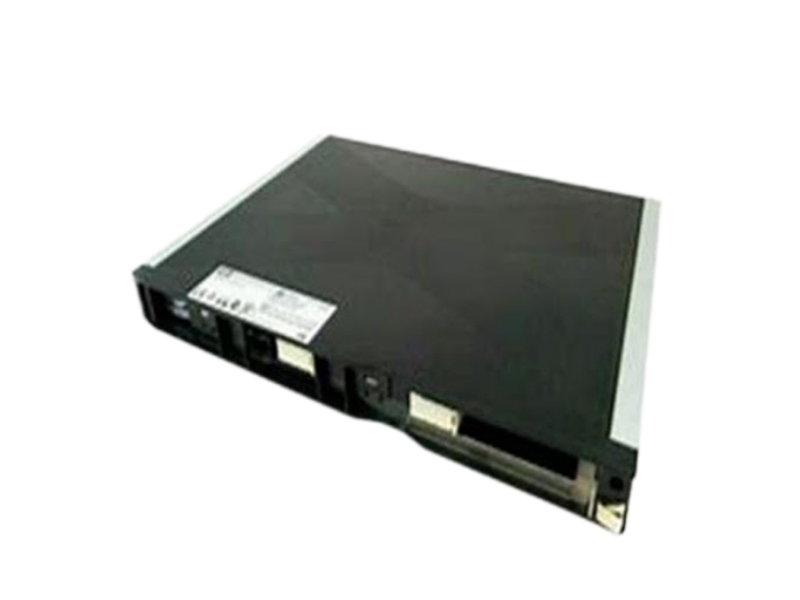

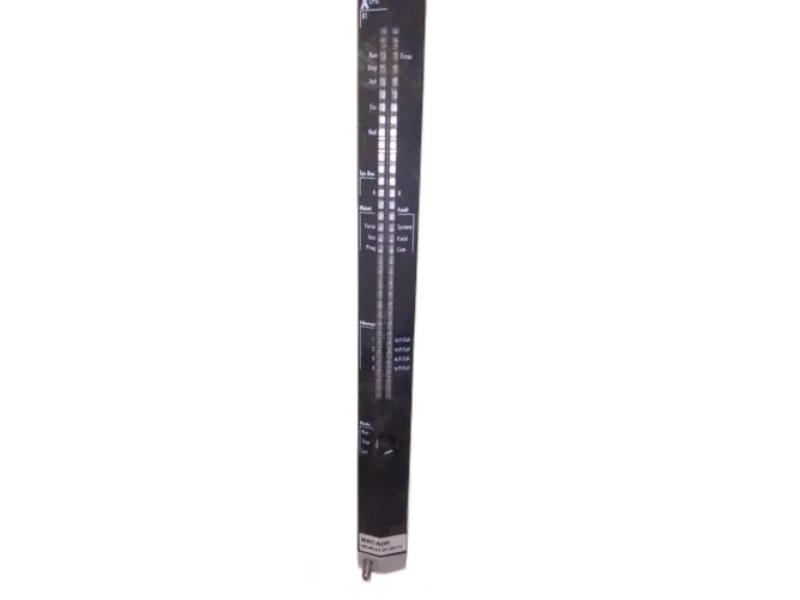

HIMA HIMax X-CPU01 is a high-performance safety processor module that executes complex control logic, manages redundancy, and ensures SIL-certified operation for large-scale industrial safety systems.

Specifications

General

• Manufacturer: HIMA
• Model: HIMax X-CPU01
• Product Type: Safety CPU / Processor Module
• Platform: HIMax safety system

Performance & Processing

• Architecture: 1oo2 redundant processor system (dual microprocessors)
• Program Capacity: Supports up to 32 user programs
• Processing Capability: High-speed execution for large-scale applications
• Event Handling: Stores CPU and I/O diagnostic/event data

Communication

• Interfaces: Integrated Ethernet communication (SafeEthernet capable)
• Protocols: SafeEthernet, compatible with distributed safety systems
• Integration: Seamless connection with DCS and remote I/O systems

System Functions

• Redundancy: Supports up to 4 CPU modules in redundant configuration
• Diagnostics: Continuous self-testing, fault detection, watchdog monitoring
• Data Logging: Stores thousands of diagnostic records for maintenance

Safety & Certification

• Safety Integrity Level: SIL 3 (IEC 61508 / IEC 61511 / IEC 62061)
• Machinery Safety: PL e / Cat.4 (ISO 13849-1)
• Certification: TÜV-approved for safety-critical applications

Mechanical & Installation

• Mounting: HIMax base plate (rack system)
• Expansion: Modular architecture for scalable system design

Application

• Emergency Shutdown Systems (ESD)
  Executes critical shutdown logic to protect equipment and personnel in hazardous environments.
• Turbomachinery Protection
  Controls and monitors compressors and turbines with high-speed processing and redundancy.
• Oil & Gas Processing Plants
  Manages complex safety logic across upstream, midstream, and downstream facilities.
• Railway & Infrastructure Systems
  Supports signaling and interlocking applications requiring high safety integrity.

• Large-Scale Industrial Automation
  Ideal for integrated safety control in chemical plants and heavy manufacturing operations.
