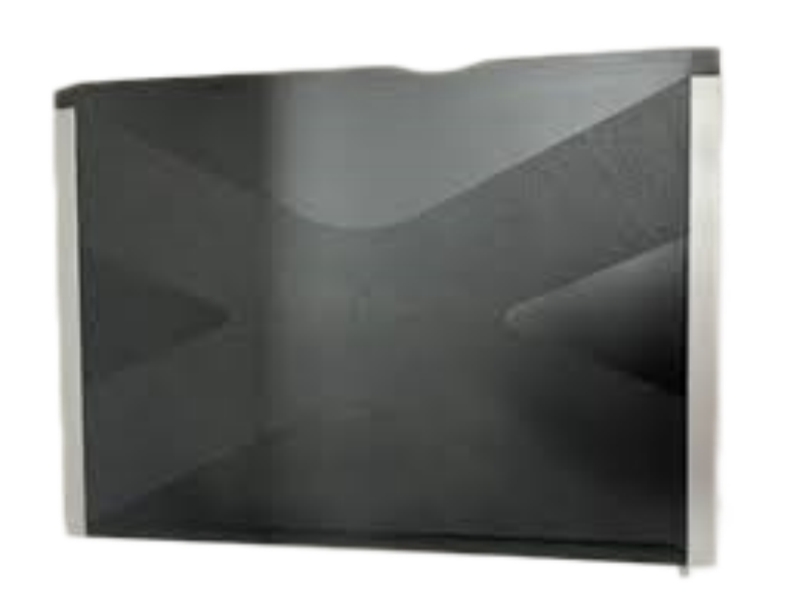

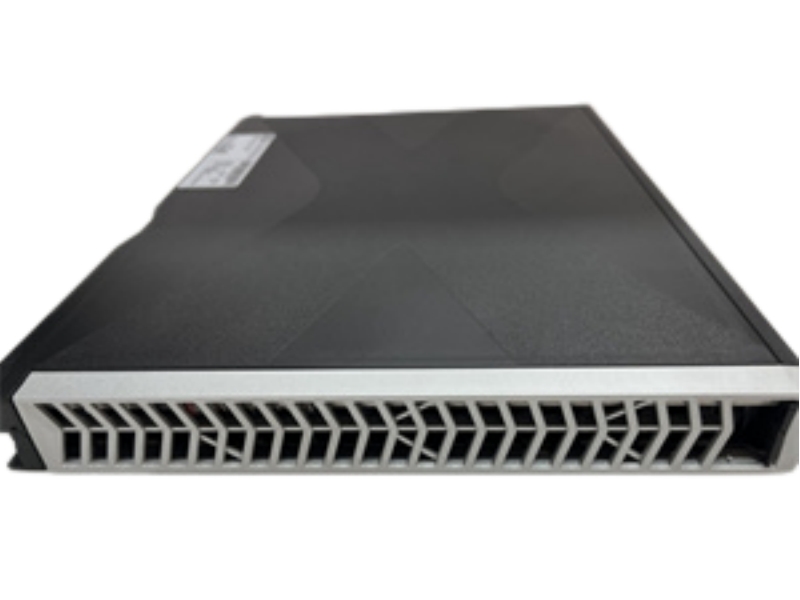

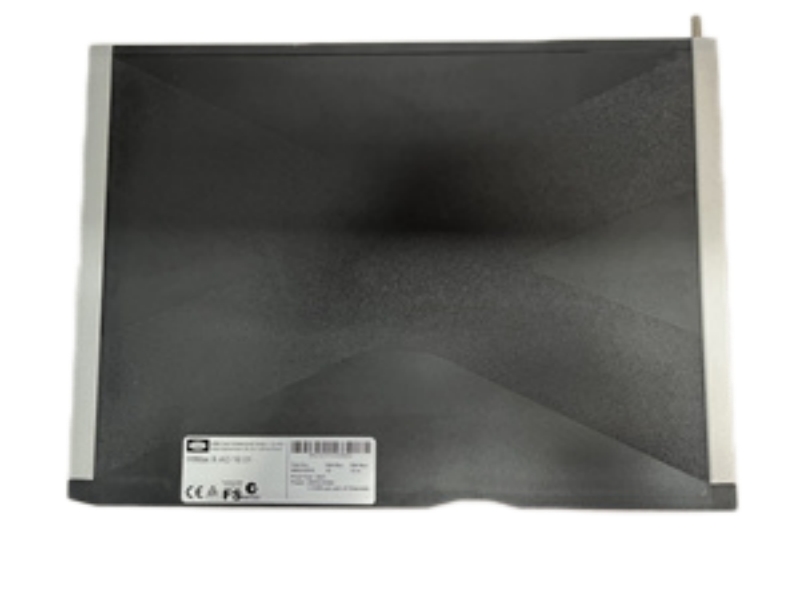

HIMA HIMax X-AO1601 is a safety-certified analog output module delivering precise signal control, advanced diagnostics, and high reliability for critical industrial processes within HIMax safety systems.

Specifications

General

• Manufacturer: HIMA
• Model: HIMax X-AO1601
• Product Type: Analog Output Module
• Platform: HIMax safety controller system

Output Characteristics

• Channels: 16 analog outputs
• Signal Types: 4–20 mA, 0–10 V
• Resolution: 16-bit high precision
• Accuracy: ±0.1% full scale
• Load Capacity: up to 600 Ω

Performance

• Update Rate: up to 1 kHz
• Response Time: ~5 ms settling time
• Fail-safe Reaction: shutdown within ~16 ms

Electrical

• Supply Voltage: 24 V DC (±15–20%)
• Power Consumption: approx. 1.3 A max

Diagnostics & Features

• Self-monitoring: DAC checks, cross-talk detection
• Diagnostic Coverage: up to 99%
• Redundancy: supports redundant configurations

Safety & Certification

• Safety Integrity Level: SIL 3 (IEC 61508 compliant)
• Protection Class: IP20

Environmental

• Operating Temperature: -20°C to +60°C
• Storage Temperature: down to -40°C
• Humidity: up to 95% non-condensing

Mechanical

• Dimensions: approx. 310 × 29 × 230 mm
• Weight: ~1.2 kg

• Application

• Control Valve Regulation
  Provides accurate analog outputs for positioning valves in continuous process control systems.
• Safety Instrumented Systems (SIS)
  Delivers fail-safe signal output in SIL-rated shutdown and protection loops.
• Oil & Gas Processing
  Controls flow, pressure, and temperature through precise actuator signals.
• Power Plant Automation
  Supports turbine and generator control with stable analog signal output.
• Industrial Process Control
  Enables reliable actuation in chemical, pharmaceutical, and manufacturing environments.
