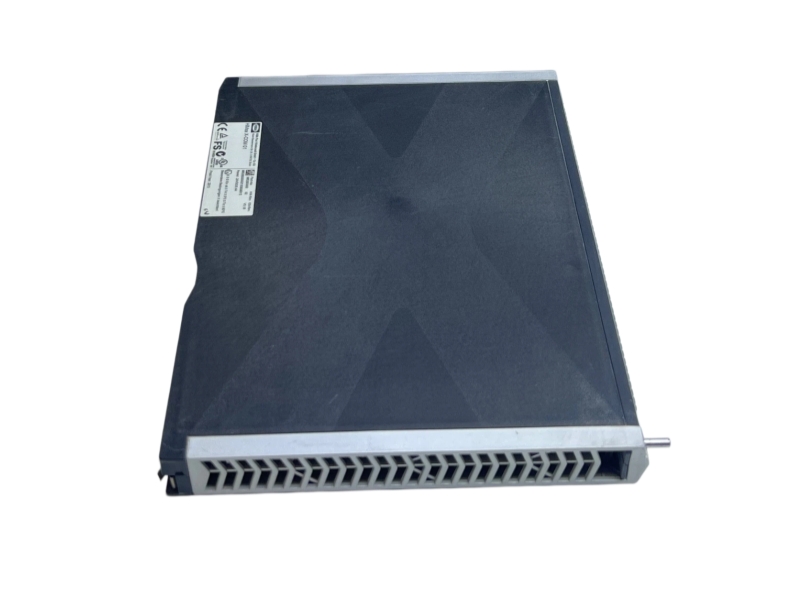

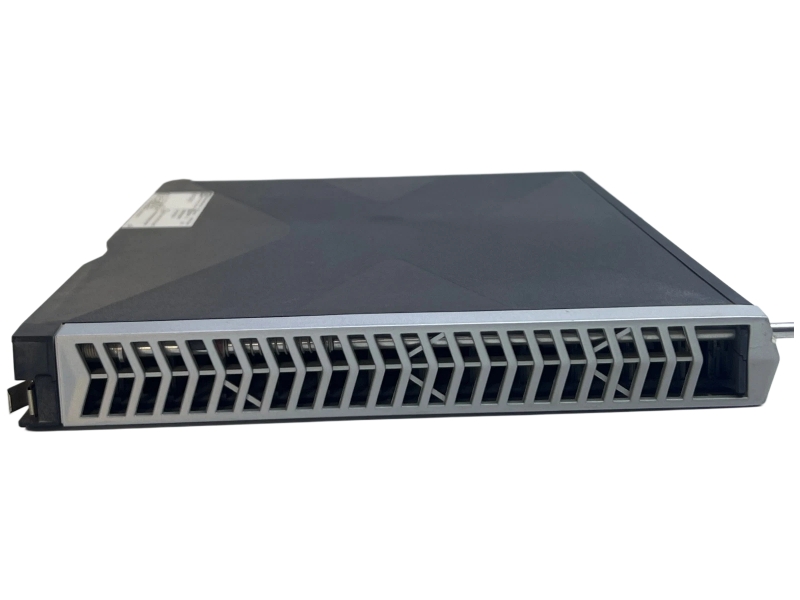

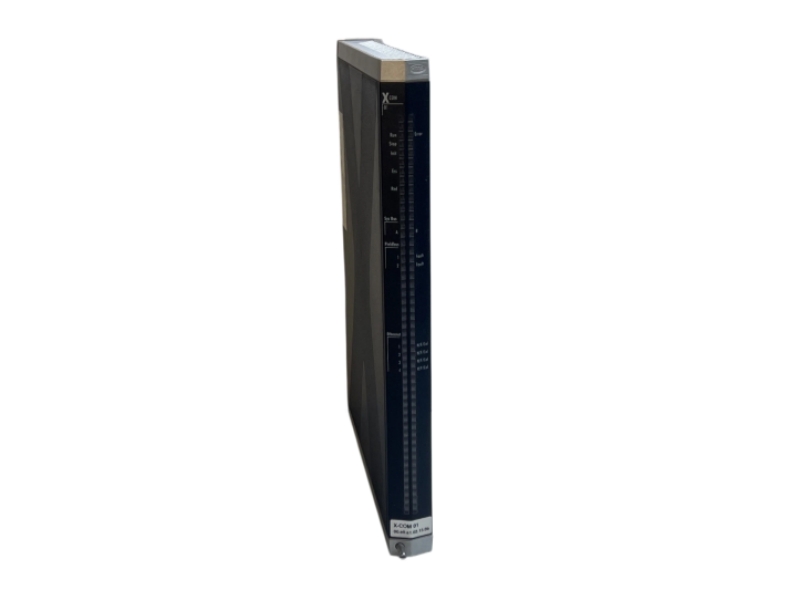

HIMA HIMax X-COM01 is a communication module for HIMax safety systems, enabling secure data exchange between controllers, field devices, and DCS networks with high availability and SIL-compliant performance.

Specifications

General

• Manufacturer: HIMA
• Model: HIMax X-COM01
• Product Type: Communication Module
• Platform: HIMax modular safety system

Communication Interfaces

• Ethernet Ports: 4 × RJ45 (integrated switch)
• Fieldbus Interface: 1 × D-Sub (expandable via submodules)
• Supported Protocols:
  • PROFINET / PROFIsafe
  • OPC UA (enhanced performance in newer variants)
  • Multiple industrial communication protocols (up to 6 types)

Performance & Functionality

• Integrated processor for communication handling and diagnostics
• Data exchange via redundant system bus with CPU module
• Hot-swappable design (replacement without shutdown)
• Expanded memory capacity in updated versions

Electrical

• Supply Voltage: 24 V DC (−15% to +20%)
• Current Consumption: approx. 0.25–0.46 A

Diagnostics & Features

• Continuous self-monitoring of communication status
• LED indicators for module, redundancy, and fieldbus status
• Fault detection for bus communication and network errors

Safety & Certification

• Safety Level: SIL 3 (with safety-related protocols)
• Designed for high-availability safety architectures (redundant systems)

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: up to 95% non-condensing

Mechanical

• Mounting: HIMax base plate slot
• Modular plug-in design with connector board

• Application
• Industrial Network Integration
  Connects HIMax safety systems with DCS, SCADA, and plant-wide control networks.
• Process Automation Communication
  Enables reliable data transfer between controllers and field instrumentation.
• Safety System Networking
  Supports safe communication protocols for distributed safety architectures.
• Oil & Gas Control Systems
  Ensures stable communication in upstream and downstream safety environments.

• Power & Infrastructure Systems
  Facilitates secure data exchange in power plants and critical infrastructure.
