IS420UCSBH3A Overview

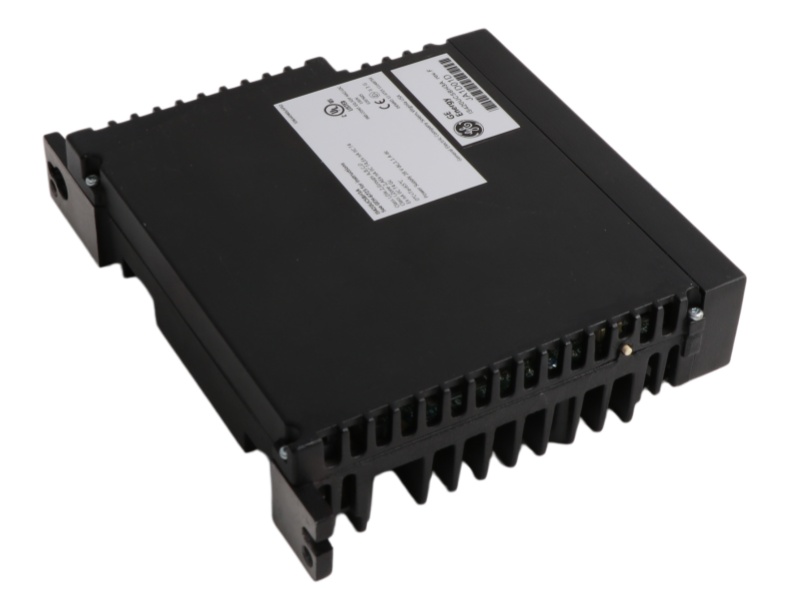

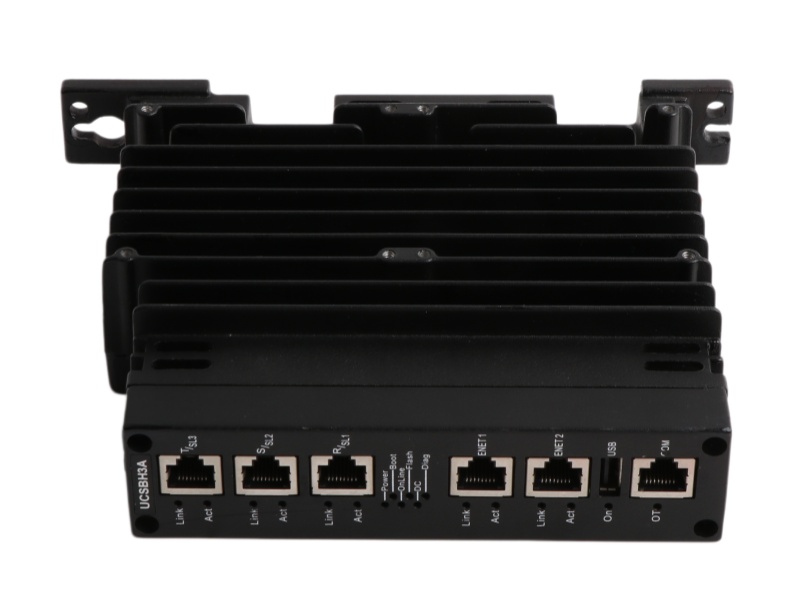

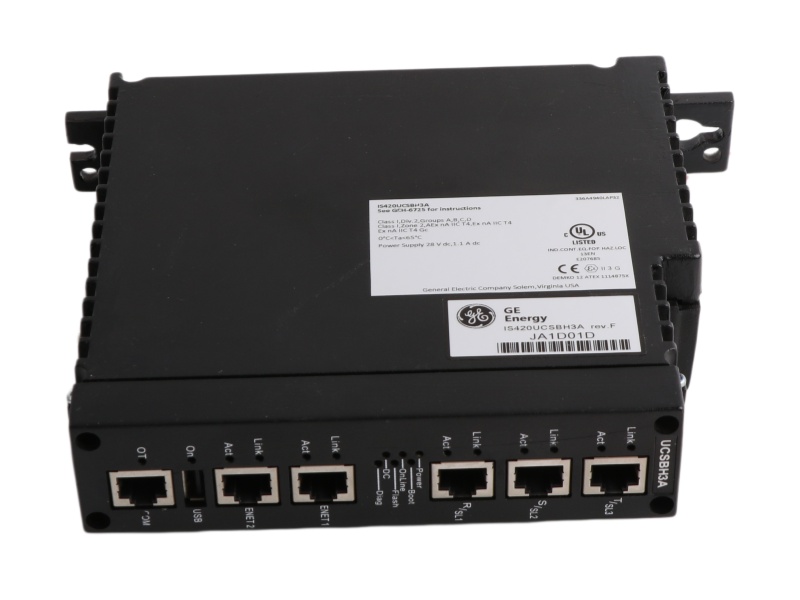

The IS420UCSBH3A General Electric UCSB CONTROLLER MODULE is a Mark VIe UCSB Controller Module. This stand-alone computer runs application-specific logic, connects to all I/O networks, and mounts directly to a panel.

Product Advantages

Stand-Alone Operation: Runs application-specific control logic independently without hosting local I/O for enhanced flexibility.

Redundant Data Access: Connected to all I/O networks, ensuring continuous access to input data even during controller maintenance.

Panel-Mountable Design: Mounts directly to panel sheet metal with vertical fins for unobstructed airflow and reliable cooling.

Online Programming: Allows control software changes without system restart, minimizing downtime during updates.

Precision Time Synchronization: Uses IEEE 1588 protocol over IONets to synchronize clocks within 100 microseconds.

Robust Architecture: No single point of input failure due to hardware and software design protecting critical process data.

FAQ

Q1: What series does the IS420UCSBH3A belong to?

A1: It is a UCSB Controller Module belonging to the Mark VIe series.

Q2: Does this controller host application I/O on a backplane?

A2: No, unlike conventional controllers, it does not host any application I/O on a backplane.

Q3: How is the IS420UCSBH3A mounted?

A3: It mounts directly to the panel sheet metal, requiring vertical airflow for cooling fins.

Q4: Can control software be modified while the system is running?

A4: Yes, online changes to the control software are possible without restarting the system.

Q5: How are clocks synchronized between controllers and I/O packs?

A5: The R, S, and T IONets use the IEEE 1588 protocol to synchronize clocks within 100 microseconds.
