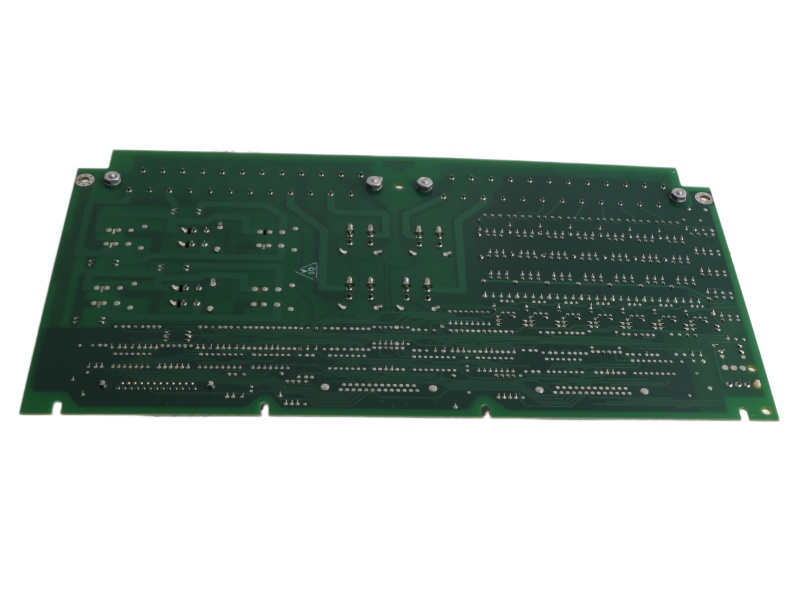

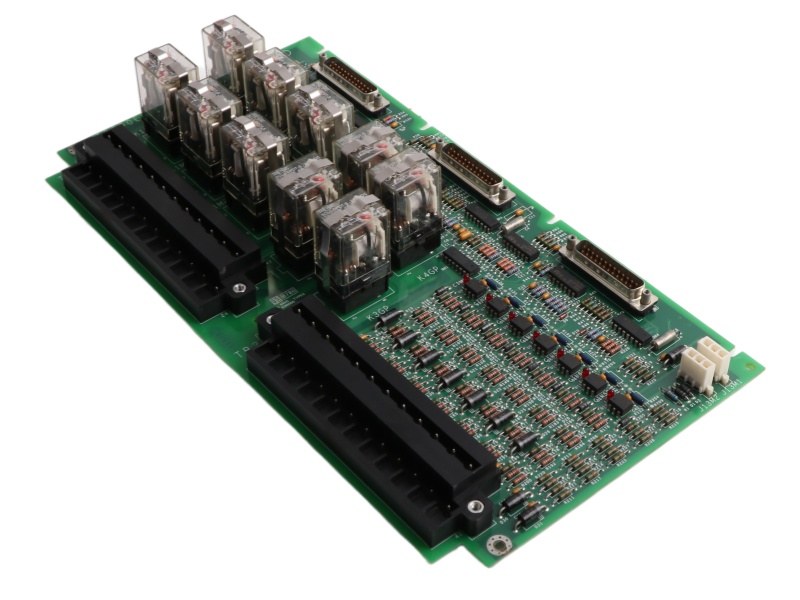

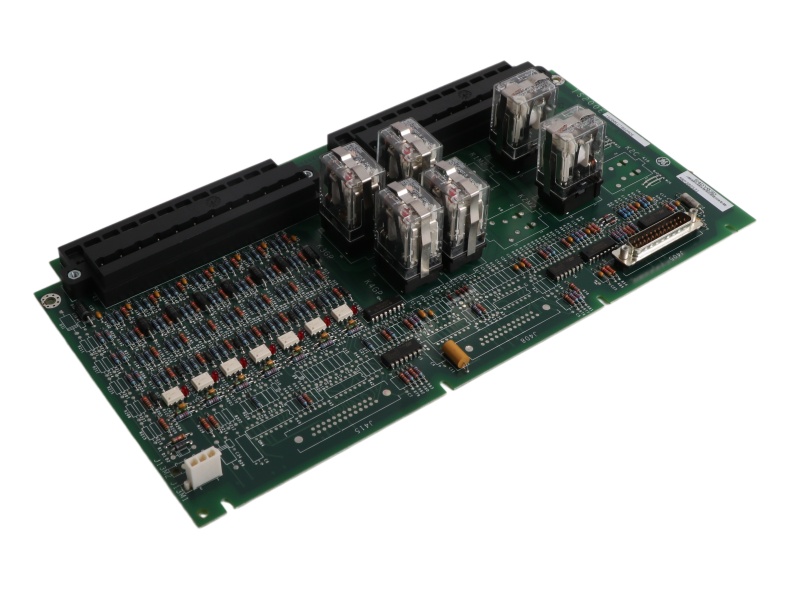

IS200ECGIH1A Overview

The Optional Auxiliary Board General Electric IS200ECGIH1A is an Optional Auxiliary Board for Drive Control systems. It features multiple analog, discrete, and relay I/O, attaching to the main board via pin connectors for expanded functionality.

Product Advantages

Extensive I/O Configuration: Features 8 analog inputs, 20 discrete inputs, and 8 relay outputs, providing versatile connectivity for complex drive control systems.

Robust Auxiliary Design: Functions as an optional auxiliary board that attaches securely to the main board via standoffs and screws for reliable mechanical stability.

Visual Status Indicators: Includes two onboard LEDs that provide immediate visual feedback on operational status and diagnostics.

High-Density Connectivity: Utilizes multiple female-pin vertical connectors along the board edges to facilitate organized and secure wiring.

Integrated Protection Components: Incorporates integrated circuits, resistors, and capacitors directly into the architecture for enhanced onboard signal conditioning.

Industrial Temperature Rating: Certified for reliable operation in temperatures ranging from 0 to 60°C, ensuring performance in industrial environments.

FAQ

Q1: How many analog inputs and discrete inputs does the IS200AEPAH1A feature?

A1: It features 8 analog inputs and 20 discrete inputs for versatile control system integration.

Q2: What type of connectors are distributed along the board's edges?

A2: Seventeen female-pin vertical connectors with pin counts ranging from two to twenty are located along the edges.

Q3: What visual indicators are present on the auxiliary board?

A3: Two light-emitting diodes (LEDs) are positioned along the left edge to contribute to its functionality and status indication.

Q4: How does this auxiliary board communicate with the main board?

A4: It communicates through connections to two male pin connectors situated in the upper left corner of the board.

Q5: What operating system does the Human Machine Interface (HMI) typically run on?

A5: The operator interface (HMI) typically operates as a PC running on the Microsoft Windows NT operating system.
