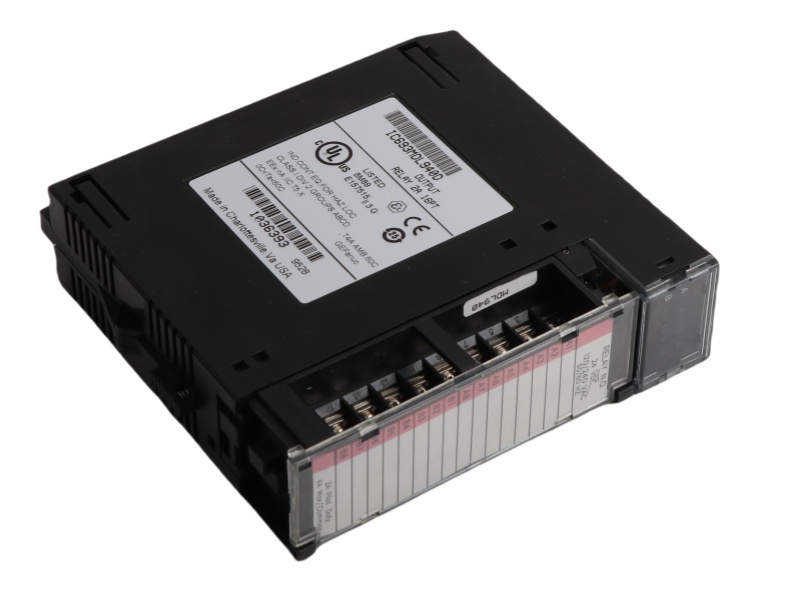

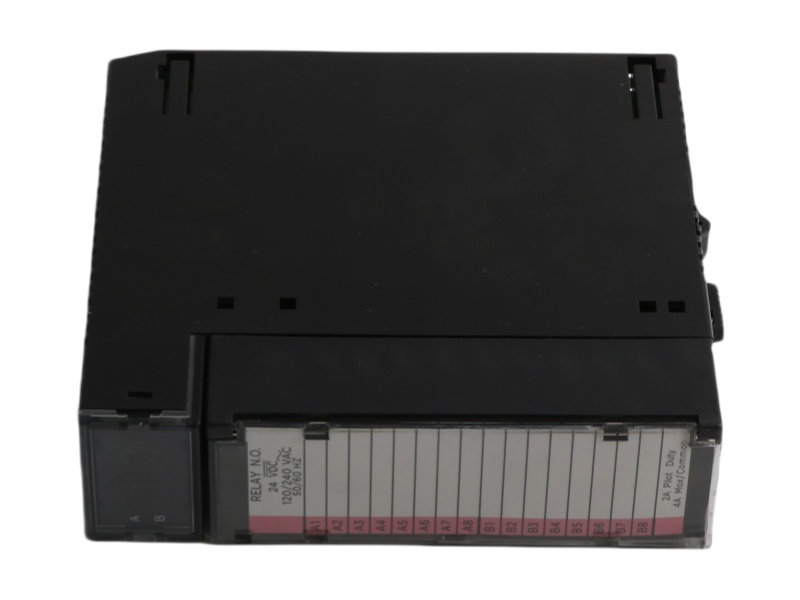

General Electric IC693MDL940 Relay Output Module

Inquiry now

IC693MDL940 Product datasheet

Model number:	IC693MDL940	Module Type：	Relay Output Module
Manufacture:	General Electric	Condition：	Brand New
Range of Product:	FANUC	Lead time：	In Stock
Weight:	0.4 kg	HS CODE：	8537101190
Dimension:	3.5x13x13.5cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

IC693MDL940 Functional Description

The General Electric IC693MDL940 Relay Output Module is a 2 Amp Relay Output Module designed for Series 90-30 and PACSystems. It provides 16 normally-open relay circuits capable of switching a variety of output loads, such as solenoids, motor starters, and indicator lamps.

Each output on the IC693MDL940 General Electric PDF supports up to 2 Amps of switching current. The module is organized into four groups, with four output points per group. Each group shares a common power output terminal, allowing for flexible power distribution and load control.

The General Electric FANUC IC693MDL940 includes individual ON/OFF LED indicators for each output point, making it easy for operators to monitor system status in real time. The module does not include internal fuses, so external circuit protection may be required for certain applications.

With its red label bands indicating high-voltage capability, the Series 90-30 IC693MDL940 GE is suitable for installation in any I/O slot within the Series 90-30 or RX3i systems. Powered by the +24V DC backplane, the General Electric IC693MDL940 ensures reliable operation across a wide range of industrial environments.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693CPU350	GE	IS210WETAH1A	GE	IS200VAICH1DAA
GE	IC693CPU351	GE	IS215WEMAH1A	GE	IS200MVRBH1ACC
GE	IC693MDL940	GE	IS215WEMAH1B	GE	IS220PAOCH1BE
GE	IC670ALG630	GE	IS200SRTDH2ACB	GE	IS420ESWBH2A
GE	IC670MDL640	GE	IS200SRLYH2AAA	GE	IS220PDIAH1A
GE	IC670MDL930	GE	IS220PRTDH1A	GE	IS220PAOCH1A
GE	IC670GBI002	GE	IS220YDIAS1AK	GE	IS215VPROH1BE
GE	IC670CHS002	GE	IS200TBAIS1CED	GE	IS215VPROH1BH
GE	IC670CHS003	GE	IS200TRLYS1BGG	GE	IS200VAICH1DBC
GE	IS210WETBH1A	GE	IS200VAICH1D	GE	IS200VAICH1DAB

PACSystems* RX3i and Series 90-30

The Series 90*-30 and PACSystems* MDL940 2 Amp Relay Output module provides 16 normally-open relay circuits for controlling output loads. The output switching capacity of each output is 2 Amps. The output points are in four groups of four points each. Each group has a common power output terminal. The relay outputs can control a wide range of load devices, such as: motor starters, solenoids, and indicators. Power for the internal relay circuits is provided by the +24 volt DC bus on the backplane. Individual numbered LEDs show the ON/OFF status of each output point. There are no fuses on this module. The red bands on the label show that MDL940 is a high-voltage module. This module can be installed in any I/O slot in a Series 90-30 or RX3i system.
