IC693CPU351 Product datasheet
|
Model number: |
IC693CPU351 |
|
Module Type： |
CPU Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.3 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.6x13x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693CPU351 Functional Description

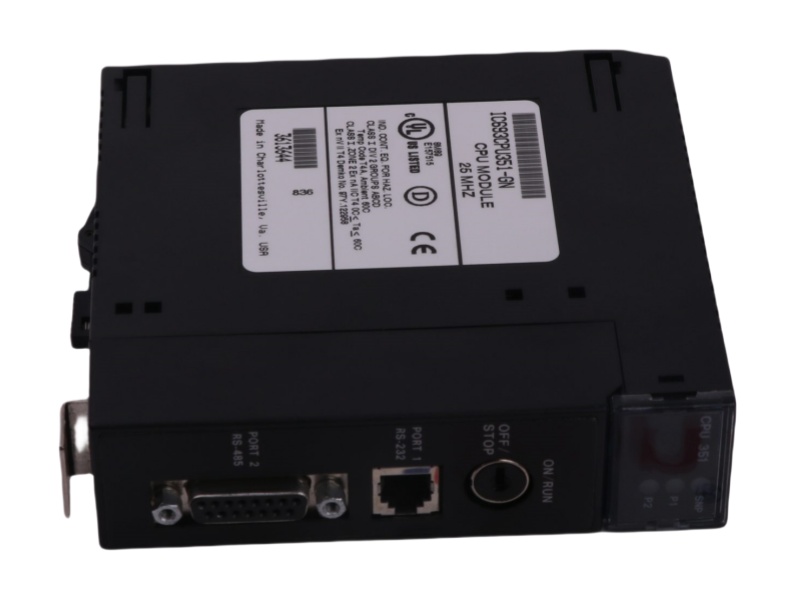

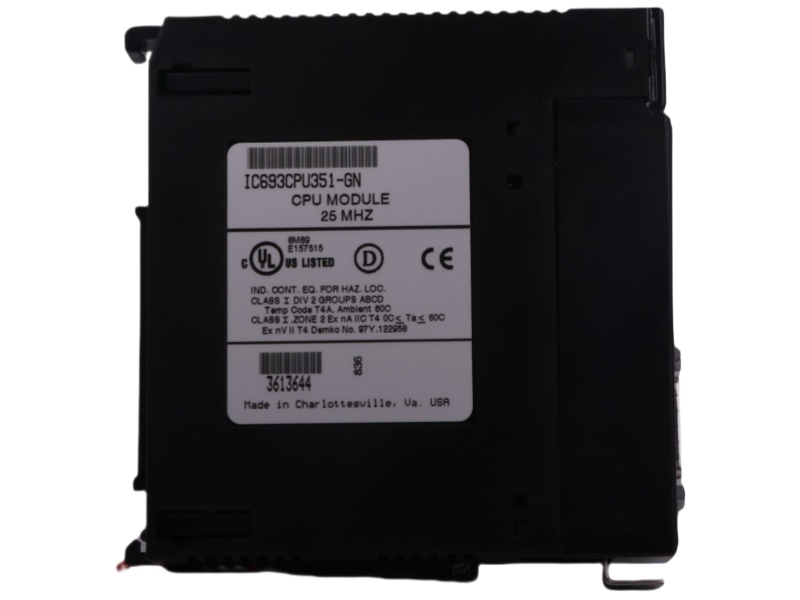

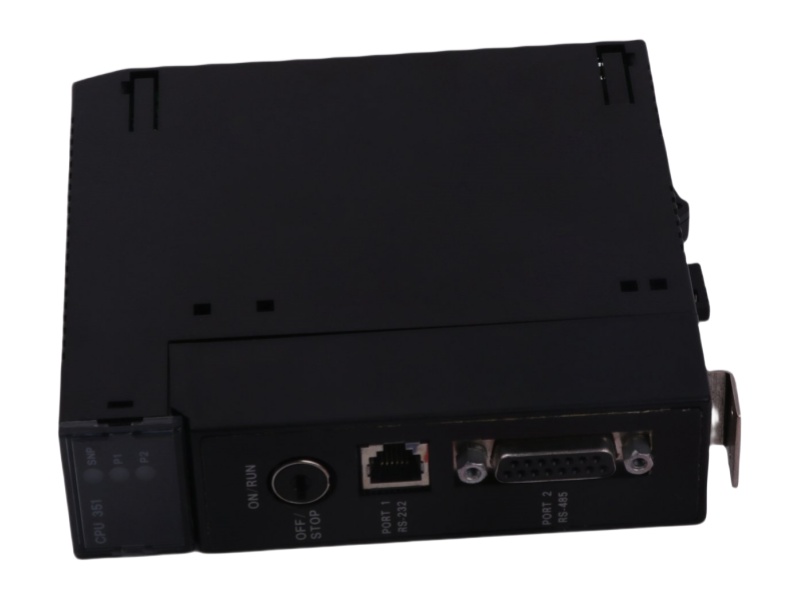

General Electric IC693CPU351 CPU Module is a high-performance modular CPU designed for the GE Fanuc Series 90-30 PLC system, offering enhanced processing capabilities for complex industrial automation applications. This robust processor features an 80386EX chip running at 25 MHz with 240KB user memory, significantly expanding program capacity compared to previous models.
The IC693CPU351 General Electric PDF provides versatile connectivity through three serial ports and supports extensive I/O configurations, including 2048 discrete points and 32,640 analog channels. Its efficient design operates on 5V DC (890mA) while maintaining compatibility with existing 90-30 system components.
For optimal performance, the Series 90-30 IC693CPU351 GE requires proper grounding using either the included green wire (44A735970-001R01) or optional grounding bracket (44C715646-001R01). These methods ensure reliable operation, particularly in electrically noisy industrial environments where signal integrity is critical.
With support for over 2000 timers/counters and enhanced processing speed, the IC693CPU351 PLC Module/Rack by GE FANUC delivers superior control for demanding automation tasks. Its expanded memory and communication capabilities make it ideal for large-scale applications requiring advanced data handling.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693CPU350 |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IC693CPU351 |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IC693MDL940 |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IC670ALG630 |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IC670MDL640 |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IC670MDL930 |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IC670GBI002 |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IC670CHS002 |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IC670CHS003 |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
Series 90-30 CPU Release, IC693CPU351-BC, GFK-1126C
The CPU 351 must be connected to frame ground at the slot where it is installed. Two methods are provided for making this ground connection. A ground wire, grounding bracket and sufficient screws are provided with the CPU 351. The two grounding methods are described below.
1. The connection from the CPU 351 to frame ground can be made using the green ground wire (part number 44A735970-001R01). This wire has a stab-on connector on one end for connection to a mating terminal on the bottom of the CPU, and a ring terminal on the other end for connection to a grounded enclosure.
2. The second method, which can be used for systems in noisy environments consists of installing the optional grounding bracket (part number 44C715646-001R01). This bracket attaches to the CPU using two self-tapping #4 screws (part number N666P9004B6) and to the grounded enclosure using two self-tapping #6 screws (part number N666P14006B6). Two holes must be drilled in the enclosure for mounting this bracket.
