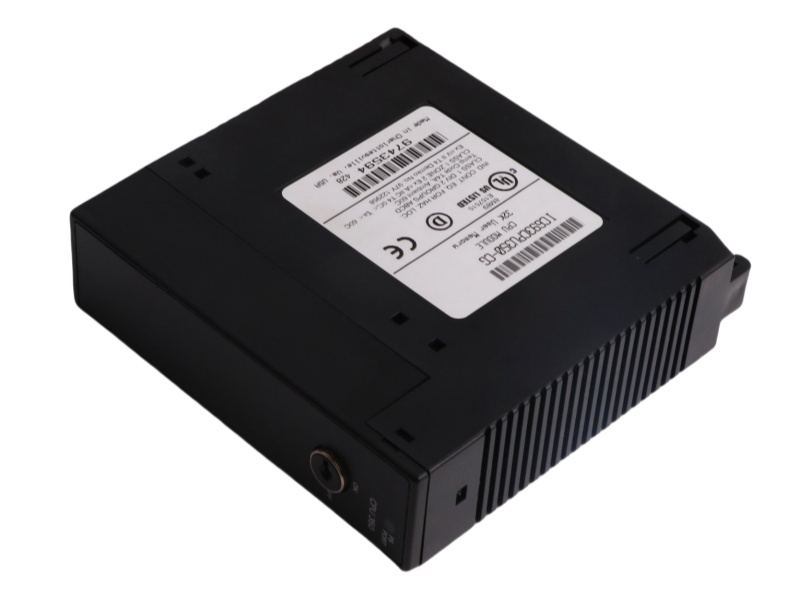

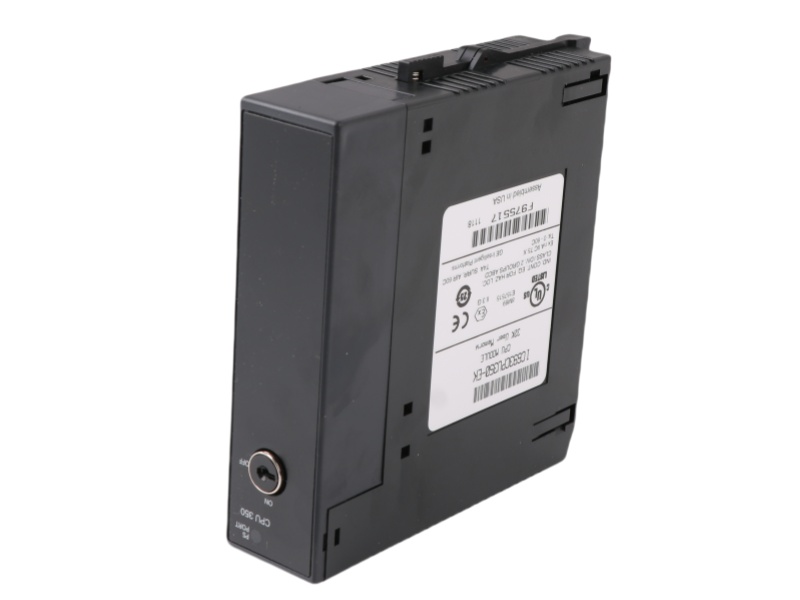

IC693CPU350 Product datasheet
|
Model number: |
IC693CPU350 |
|
Module Type： |
CPU 350 Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.22 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x13.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693CPU350 Functional Description
General Electric IC693CPU350 CPU 350 Module is a high-performance CPU module designed for the Series 90-30 PLC system, delivering robust processing power for industrial automation applications. This single-slot module features an 80386EX processor running at 25 MHz, supported by 32KB of user memory (RAM and Flash) for efficient program execution and data handling.
The IC693CPU350 General Electric PDF offers versatile communication capabilities through its integrated RS-485 serial port, while maintaining compatibility with all GE Fanuc 90-30 PLC components. Its efficient design operates on just 5V DC at 670mA, supporting over 2000 timers/counters for complex control tasks.
While the General Electric FANUC IC693CPU350 typically supports 20 DSM314 modules, this capacity may vary based on system configuration. Factors like memory allocation for C blocks, datagram usage, and simultaneous program/configuration storage can affect module support - though separating these operations may optimize performance.
As the central processing unit in 90-30 systems, the IC693CPU350 PLC Module/Rack by GE FANUC0 balances processing speed (0.9ms/K Boolean) with reliable operation. Its compact yet powerful design makes it ideal for discrete and process control applications requiring precise, real-time automation.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693CPU350 |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IC693CPU351 |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IC693MDL940 |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IC670ALG630 |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IC670MDL640 |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IC670MDL930 |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IC670GBI002 |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IC670CHS002 |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IC670CHS003 |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
Series 90-30 CPU Release, IC693CPU350-CG, 360-CH, 363-BF, GFK-1512M
The IC693 PLC normally supports 20 DSM314 modules in a system. This number may be reduced by other modules in the system, such as APM and GBC modules. It may also be further reduced if using datagrams that read the reference or fault tables. If the configuration and user program are stored at the same time, the presence of either C blocks within the LD program, or a C logic program may also affect the number of DSM314 modules that may be included in a system. If the store fails, it may be possible to work around this problem by first storing the logic program and then storing the configuration on a separate store request. The number of modules supported may be further reduced by the size of CPU user memory.
