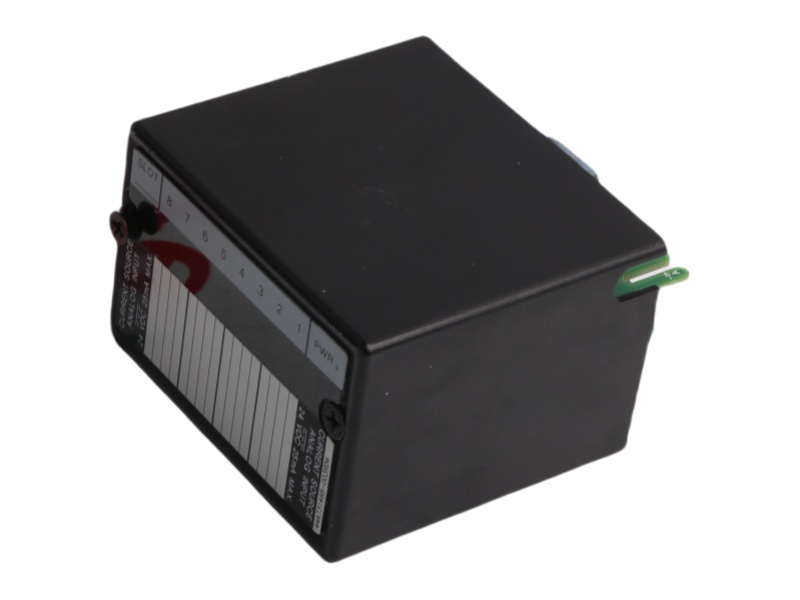

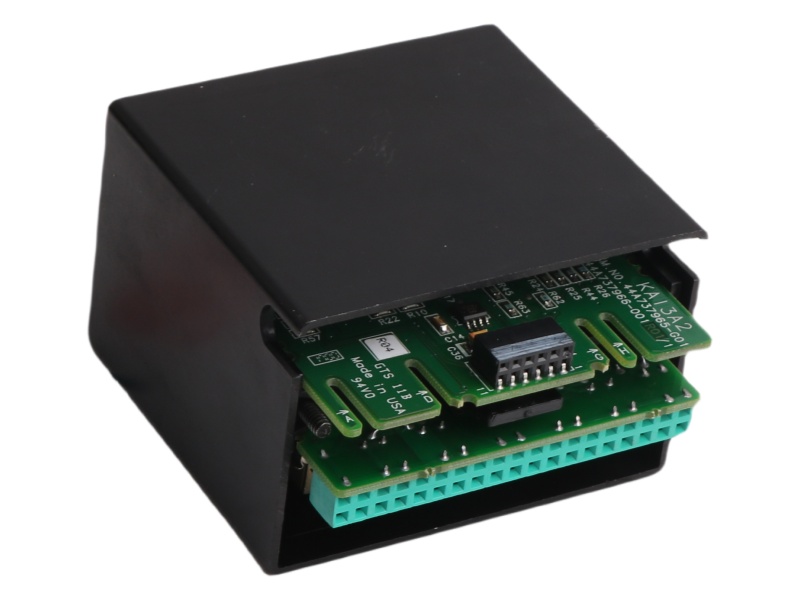

IC670ALG630 Product datasheet
|
Model number: |
IC670ALG630 |
|
Module Type： |
Thermocouple Input Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.36 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
18.5x7x5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC670ALG630 Functional Description
General Electric IC670ALG630 Thermocouple Input Module is an advanced 8-channel thermocouple input module designed for precision temperature monitoring in industrial automation systems. This intelligent module supports multiple thermocouple types and provides flexible configuration options for either direct millivolt readings or converted temperature values in tenths of degrees Celsius/Fahrenheit.
The IC670ALG630 General Electric PDF features sophisticated cold junction compensation and open-circuit detection, ensuring accurate measurements even in demanding environments. Its solid-state, optically-coupled multiplexer circuitry works with a high-resolution 15-bit ADC (plus sign bit) to deliver precise analog-to-digital conversion for each channel.
When configured for millivolt measurement, the General Electric FANUC IC670ALG630 provides exceptional resolution of 1/100 millivolt, making it suitable for various low-voltage sensing applications. The module's built-in microprocessor continuously monitors for out-of-range conditions and thermocouple faults, enhancing system reliability.
As part of GE's Genius Bus system, the IC670ALG630 PLC Module/Rack by GE FANUC seamlessly integrates with Bus Interface Modules for efficient data exchange. Its robust design and comprehensive diagnostics make it ideal for critical temperature monitoring in process control and manufacturing applications.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693CPU350 |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IC693CPU351 |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IC693MDL940 |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IC670ALG630 |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IC670MDL640 |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IC670MDL930 |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IC670GBI002 |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IC670CHS002 |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IC670CHS003 |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
Thermocouple Input Module
The Thermocouple Input Module accepts eight inputs from thermocouples and converts the inp level of each to a digital value. The module support a variety of thermocouple types, as listed in Module Specifications section. Each input can be configured to report data as millivolt or temperature (tenths of degrees Celsiu Fahrenheit) measurements. When thermocouples are measured, the module can be configured to monitor the thermocouple junction temperature and correct the input value for cold junction.
On command from the module's intemal microprocessor, the solid-state, optically-coupled multiplexer circuitry provides the present analog value of a specified input to the analog-to-digi converter. The converter tums the analog voltage into a binary (15 bits plus a sign bit) value representing tenths (1/10) of degrees Celsius or Fahrenheit. The result is read by the module's microprocessor. The microprocessor determines if the input is over or under its configured ran or if an open thermocouple condition exists.
When the module is confgured to measure millivolts instead of inputs from thermocouples, the result of the analog-to-digital conversion is a value reported in hundredths (1/100) of millivolts. A Bus Interface Module handles the exchange of all I/O data for the modules in the I/O Station over the communications bus.
