IC670MDL640 Product datasheet
|
Model number: |
IC670MDL640 |
|
Module Type： |
Output Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.22 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
5.3x8.5x8.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

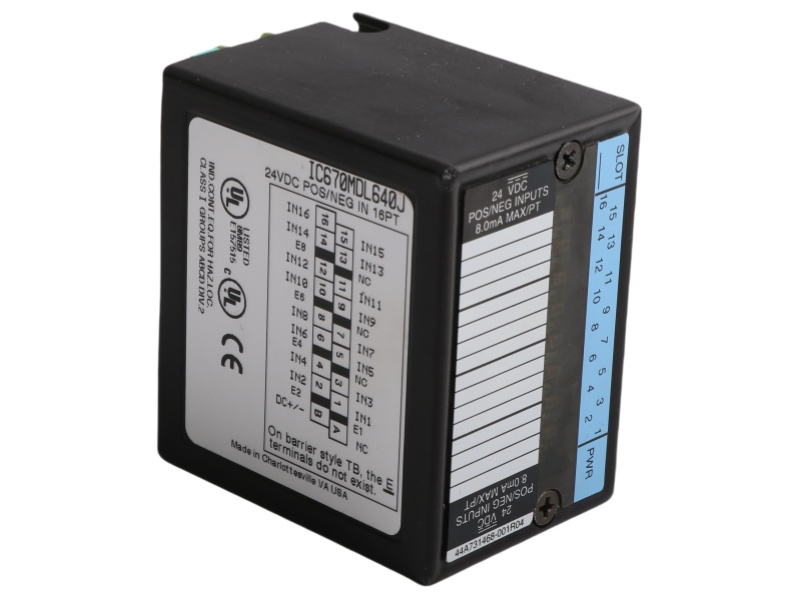

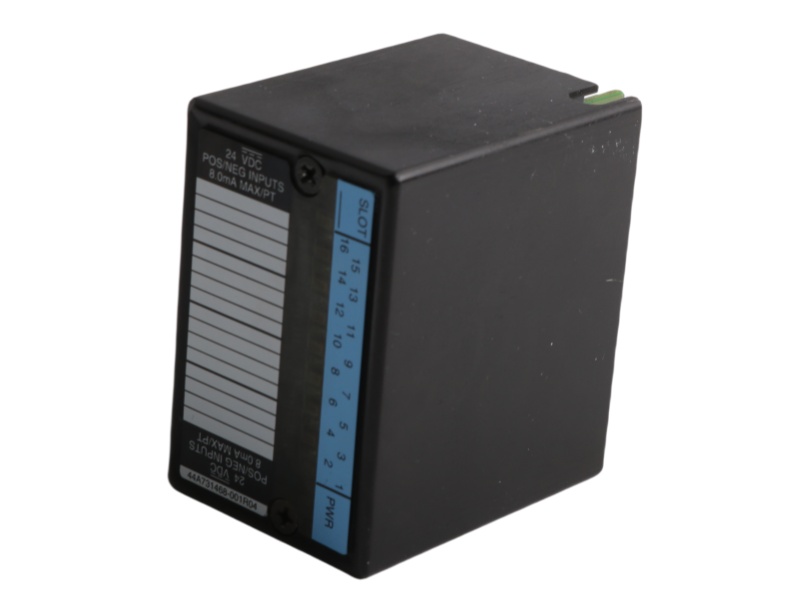

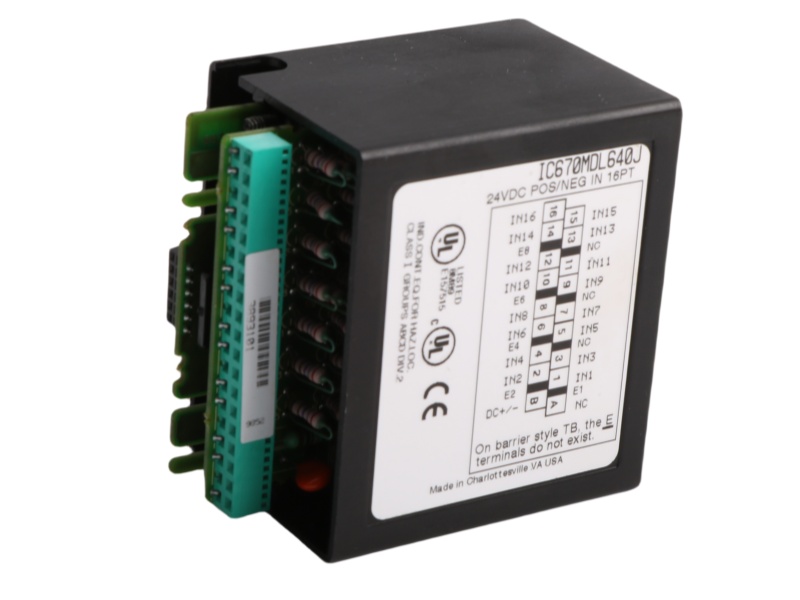

IC670MDL640 Functional Description
General Electric IC670MDL640 Output Module is a versatile 16-channel digital input module designed for GE Fanuc's Field Control series. This expansion module supports both positive and negative logic configurations (0-30VDC range), making it adaptable to regional wiring standards with a nominal 24VDC operating voltage.
The General Electric FANUC IC670MDL640 features optical isolation and delivers consistent performance with 7.5mA input current per point (75mA total typical draw). Its fast response time (6ms typical, 10ms max) and 3K ohm input impedance ensure reliable signal acquisition in industrial automation systems.
Compatible with various PLCs through Genius Bus connectivity, the INPUT MODULE IC670MDL640 GE meets CE/UL standards for industrial environments. The module's compact design optimizes panel space while its 15-30VDC on-state voltage range (± for negative logic) maintains operational stability.
The General Electric IC670MDL640 PDF represents GE's commitment to flexible, high-performance industrial I/O solutions, combining robust electrical specs with space-efficient packaging for modern automation needs.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693CPU350 |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IC693CPU351 |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IC693MDL940 |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IC670ALG630 |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IC670MDL640 |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IC670MDL930 |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IC670GBI002 |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IC670CHS002 |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IC670CHS003 |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
24 VDC Positive/Negative Input Module
If the module is installed on an I/O Terminal Block with Box Terminals or an I/O Terminal Block with Barrier Terminals, an Auxiliary Terminal Block may be required to provide additional wiring terminals. For the I/O Terminal Block with Wire to Board Connectors, external connection points are usually be preferred, although an Auxiliary Terminal Block can be used.
Auxiliary Terminal Blocks have all terminals connected together internally. The Auxiliary Terminal Block with box terminals has 13 terminals, each of which accommodates one AWG # 14 (avg 2.1mm2 cross section) to AWG #22 (avg 0.36mm2 cross section) wire, or two wires up to AWG #18 (avg. 0.86mm2 cross section). The Auxiliary Terminal Block with barrier terminals has nine terminals, each of which can accommodate one or two wires up to AWG #14 (avg 2.1mm2 cross section).
