IC670MDL930 Product datasheet
|
Model number: |
IC670MDL930 |
|
Module Type： |
Discrete Output Module |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.24 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
5.3x8.5x8.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |

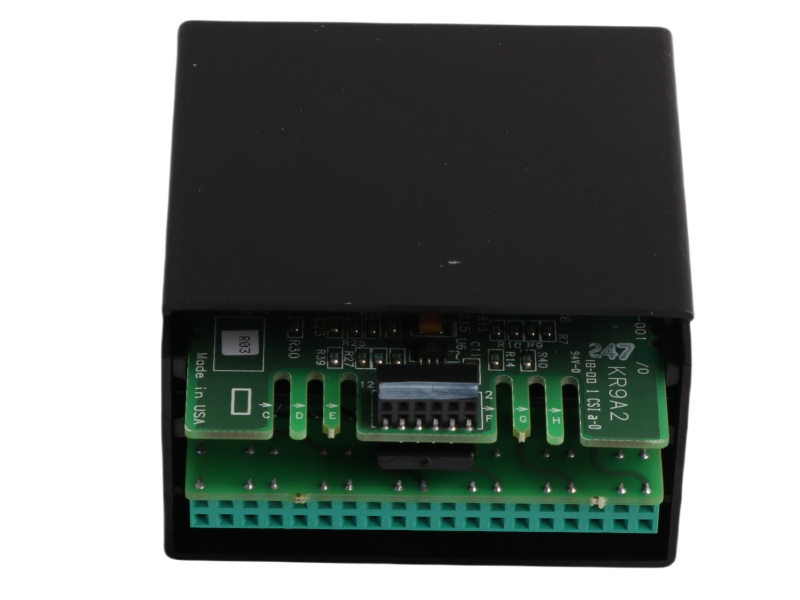

IC670MDL930 Functional Description

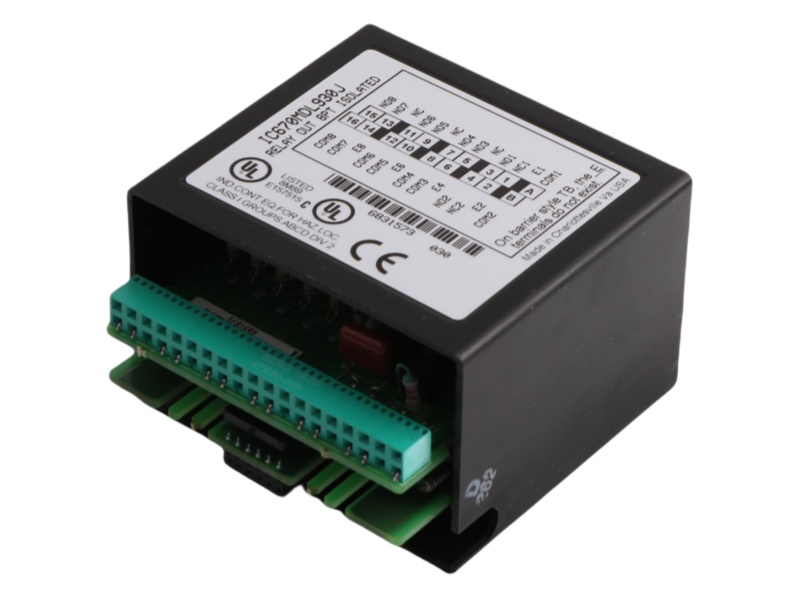

General Electric IC670MDL930 Discrete Output Module is an 8-channel relay output module designed for GE Fanuc's Field Control system, delivering robust switching capabilities for industrial automation applications. This module features silver alloy contacts with a fixed coil/moving armature design, ensuring reliable operation at up to 20 cycles per minute.
The Fanuc Module IC670MDL930 General Electric provides comprehensive protection with built-in snubber circuits (no fuses required) and handles substantial inrush currents (5A for 20ms). Each channel maintains a minimum load current of 10mA while drawing 313mA from the BIU power supply, optimized for efficient system integration.

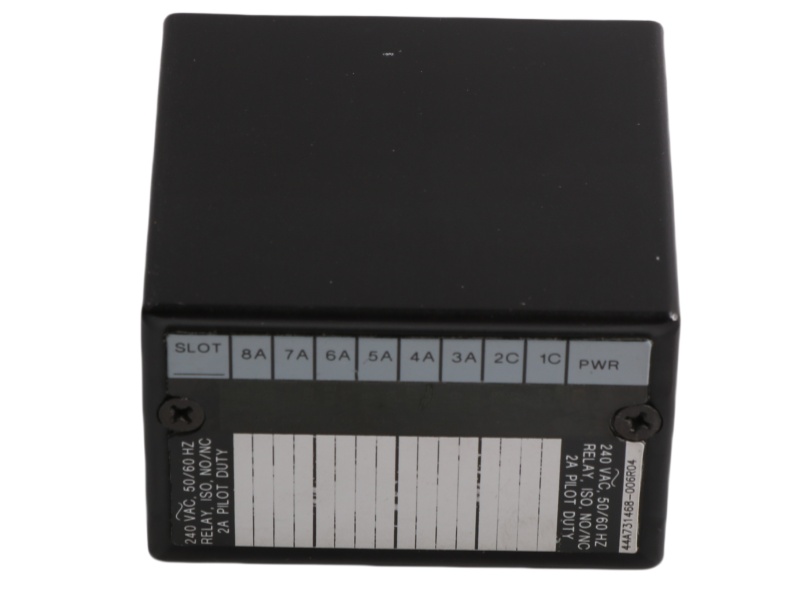

With individual channel LEDs and a power indicator, the General Electric IC670MDL930 FANUC offers clear operational status at a glance. Its wide frequency range (47-63Hz) and rugged construction make it suitable for demanding industrial environments requiring precise output control.
As part of GE's Field Control series, the DISCRETE OUTPUT MODULE IC670MDL930 GE delivers reliable switching performance in compact packaging. The module's robust design and maintenance-free operation reduce downtime while providing flexible control options. The General Electric IC670MDL930 PDF represents GE's commitment to high-performance industrial automation, combining durable relay technology with intelligent features for critical output applications in manufacturing and process control systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693CPU350 |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IC693CPU351 |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IC693MDL940 |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IC670ALG630 |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IC670MDL640 |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IC670MDL930 |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IC670GBI002 |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IC670CHS002 |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IC670CHS003 |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
Module Operation
The Isolated, NO/NC Relay Output Module (IC670MDL930) provides eight isolated outputs. The outputs consist of six normally-open (Form A) contacts and two normally-open or normally-closed (Form C) contacts. Six form ‘A’ relays provide the NO outputs while two form ‘C’ relays provide the NO/NC points.
After checking the Board ID and verifying that the module is receiving appropriate logic power from the Bus Interface Unit (as reflected by the state of the module’s Power LED), the Bus Interface Unit then sends output data to the module in serial format. During transmission, the module automatically loops this data back to the Bus Interface Unit for verification. Serial to parallel converters convert this data into the parallel format needed by the module. Opto-isolators isolate the module’s logic components from field outputs. Power from the external power supply is used to power the loads connected to the contacts.
