IC670GBI002 Product datasheet

IC670GBI002 Functional Description

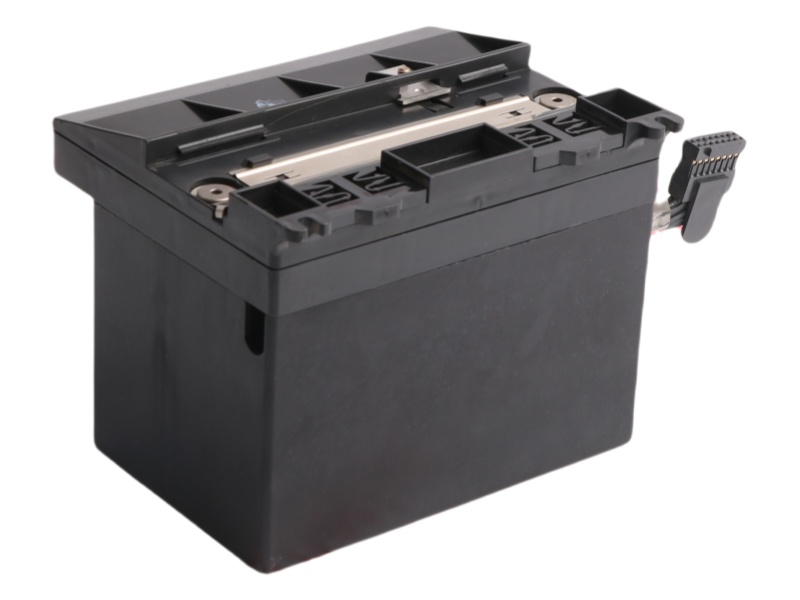

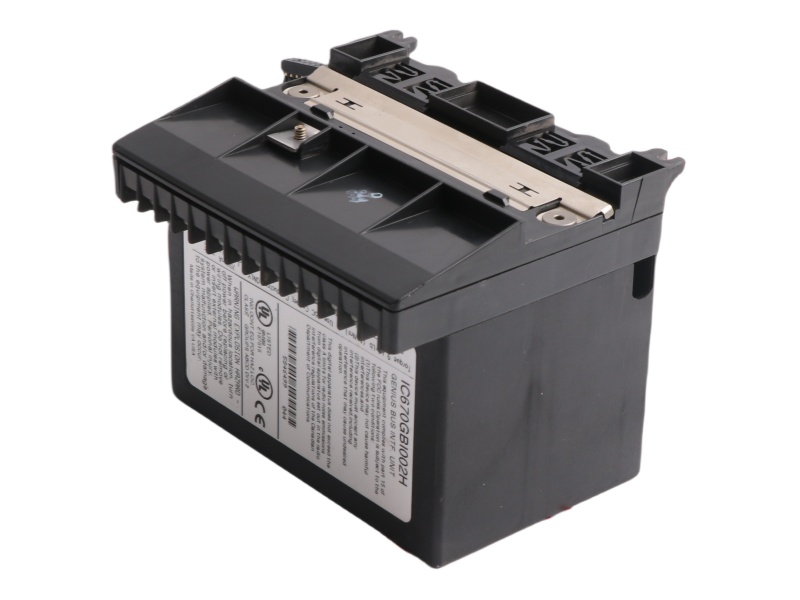

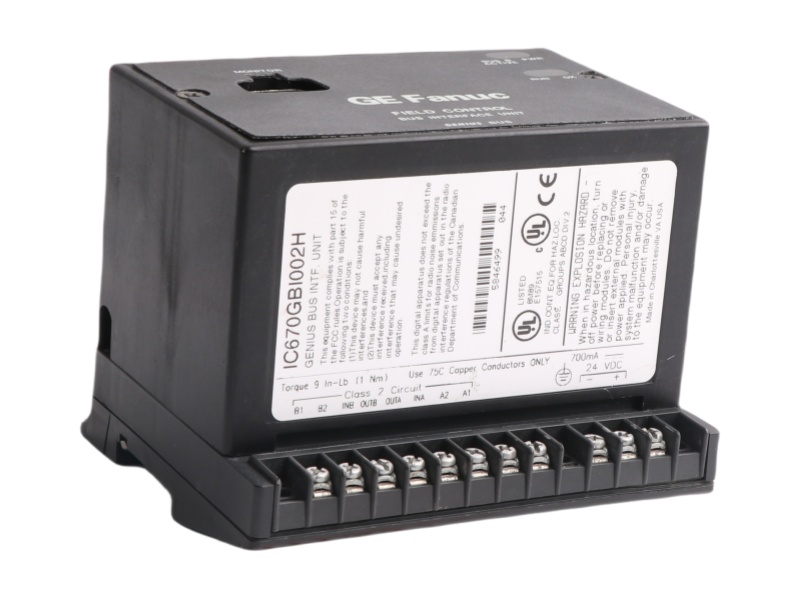

General Electric IC670GBI002 Interface Module is a robust Bus Interface Unit (BIU) designed as the communication hub for GE Fanuc's Field Control I/O system. This critical component requires installation on a grounded conductive DIN rail for optimal noise immunity, featuring a dedicated metal grounding strip that's incompatible with older "A" version terminal blocks. The unit operates across a wide 18-30VDC range (24VDC nominal) while delivering 6.5VDC±5% power to connected modules.

The IC670GBI002 GE Field Control BIU Terminal Block provides exceptional system integration with 1.4A current output to modules and maintains operation during brief power interruptions (20ms holdup time). Its design emphasizes reliability in harsh environments, requiring secure DIN rail mounting with screws spaced 6 inches apart and additional #6 screws through the BIU's mounting ears for vibration resistance.

With 16.8W power consumption and handling capability for substantial inrush currents (15-50A peak), the General Electric IC670GBI002 FANUC ensures stable performance in industrial automation networks. The unit's 47-63Hz frequency range accommodates global power standards while its precision voltage regulation protects sensitive connected devices.

As the backbone of GE's Field Control system, the GE IC670GBI002 Interface Module enables high-speed data exchange between I/O modules and host controllers. Its rugged construction and strict grounding requirements make it ideal for mission-critical applications where signal integrity is paramount.
