IC200PWR002 Overview

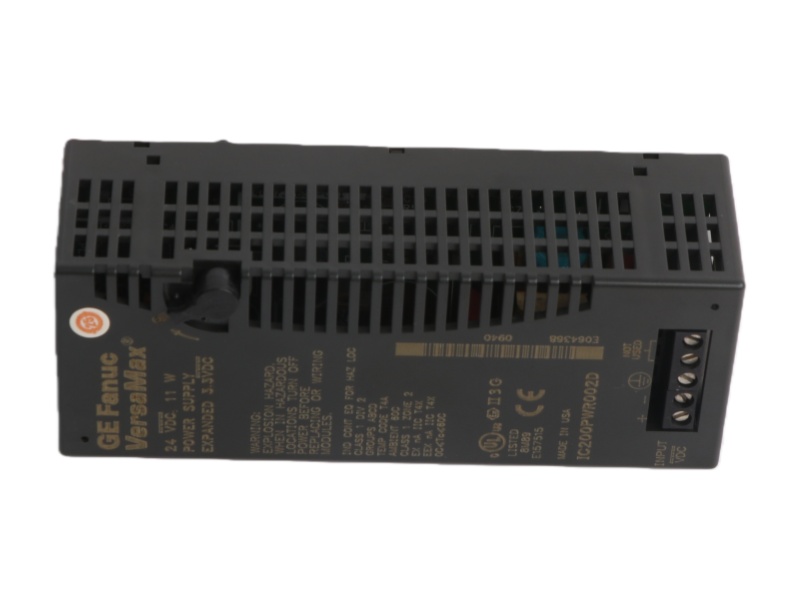

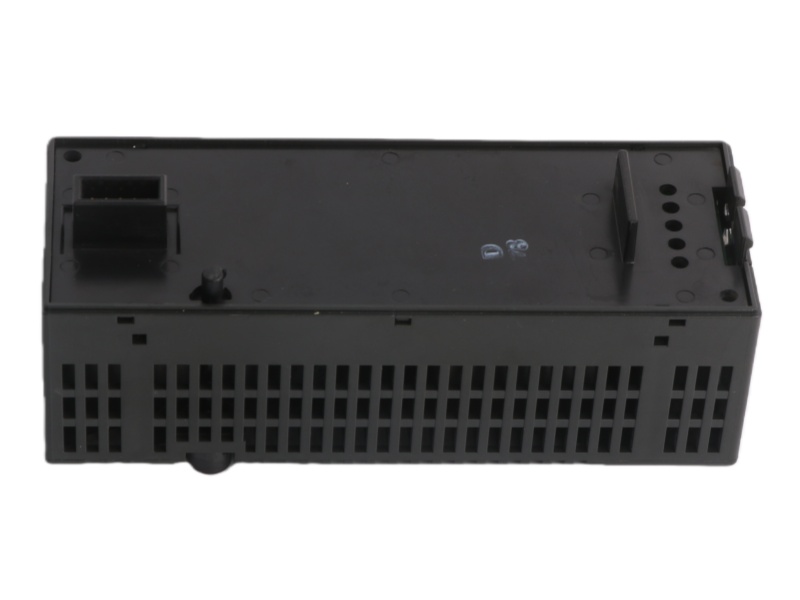

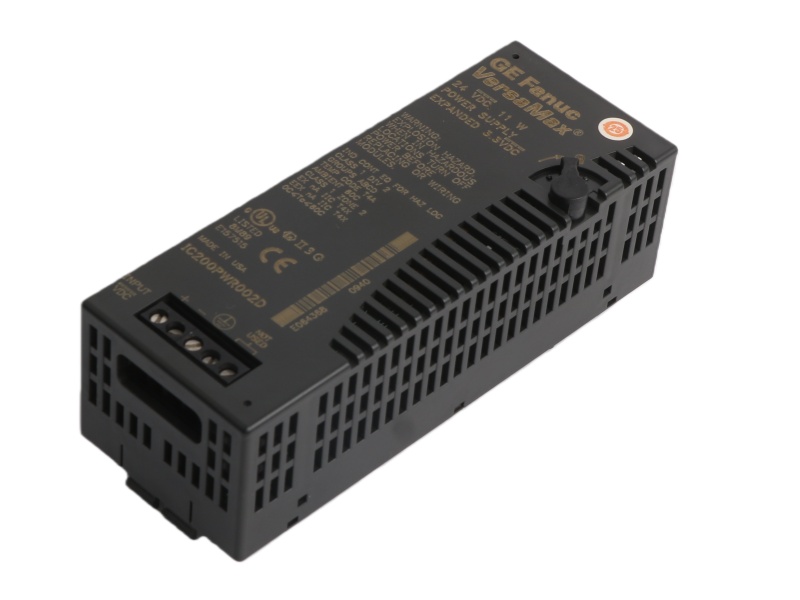

The GE IC200PWR002 24 VDC expanded power supply  is an expansion power supply for VersaMax systems. It provides primary or supplementary backplane power to CPUs, NIUs, and I/O modules, supporting stable operation in expanded configurations.

Specifications

• Function: Supplemental power supply for VersaMax systems.

• Input: 24VDC nominal (18-30VDC range).

• Output: Provides 5VDC (up to 1.5A) and 3.3VDC (up to 1.0A).

• Protection: Features short-circuit, overload, and reverse polarity protection.

• Compatibility: Designed to power VersaMax CPUs, NIUs, and I/O modules.

FAQ

Q1: What is the primary function of the IC200PWR002?

A1: It is a power supply module that provides primary or supplemental 5VDC/3.3VDC power to VersaMax system components like CPUs, NIUs, and I/O modules.

Q2: What input voltage does this module require?

A2: It operates on a nominal 24VDC input, with a functional range from 18 to 30VDC.

Q3: Can it be used to expand a system's power capacity?

A3: Yes, when installed on a booster carrier, it functions as a supplementary power supply for expanded configurations.

Q4: What safety protections does it include?

A4: It features built-in protection against short circuits, overloads, and reverse polarity connection.

Q5: What are its key output specifications?

A5: It provides both 5VDC and 3.3VDC, with a combined maximum output current not to exceed 1.5 Amperes.
