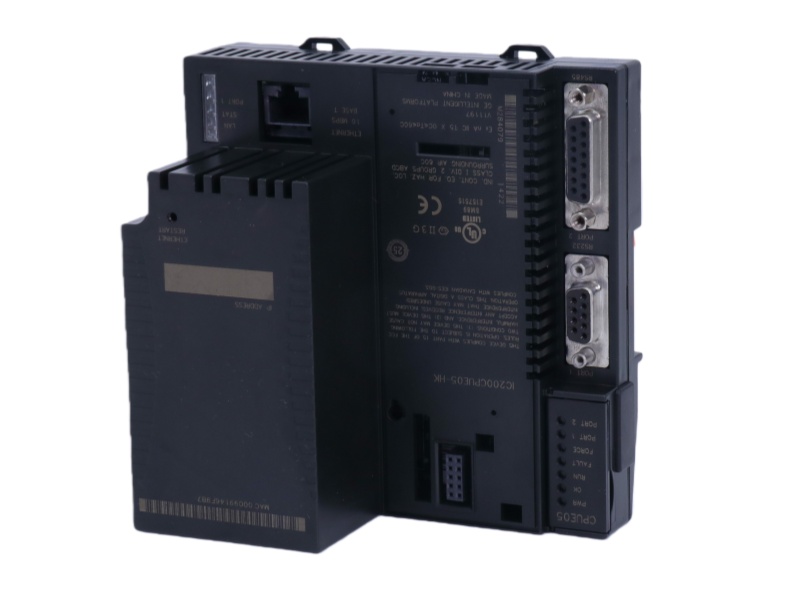

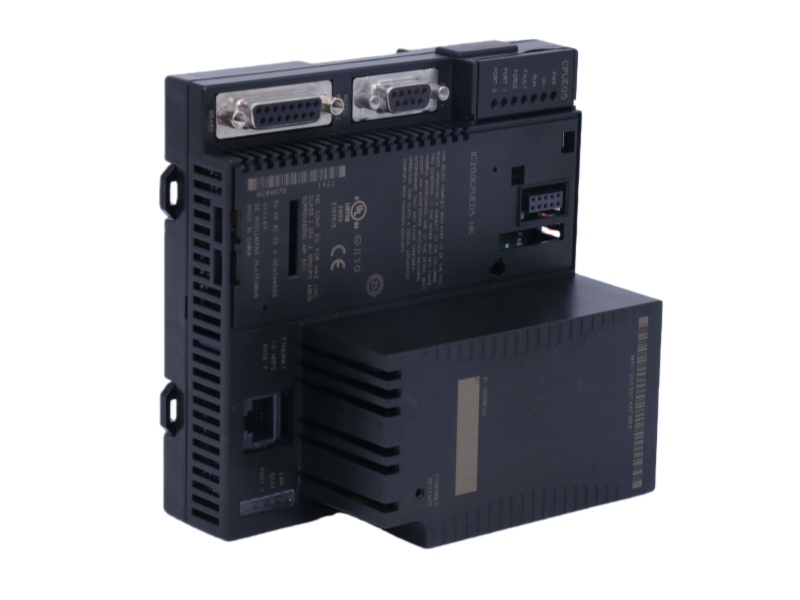

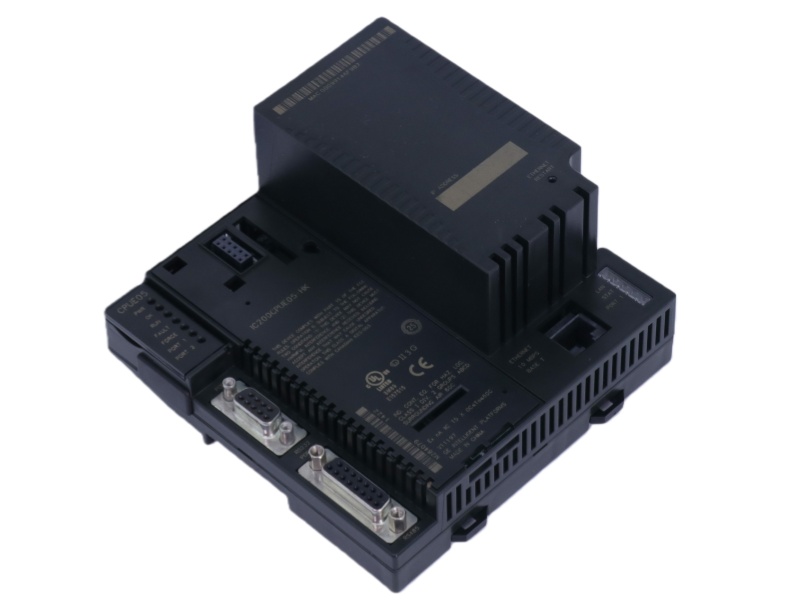

IC200CPUE05-JP Overview

The General Electric IC200CPUE05-JP is a powerful VersaMax controller with 64KB memory. It features versatile RS232, RS485, and Ethernet ports, supporting up to 2048 I/O points for robust automation control.

Specifications

• Product Type: VersaMax CPU controller module.

• System Capacity: Supports up to 64 modules or 2048 I/O points.

• Processing Speed: Executes Boolean logic at 0.8 ms/K typical.

• Communication: Features 1 Ethernet port, 1 RS-232, and 1 RS-485 port.

• Memory & Power: Has 64KB user memory and draws 650mA from the backplane.

Environment and Certification

• Mounting Flexibility: Designed for installation on DIN rails in both vertical and horizontal orientations.

• Robust Memory Backup: Features a built-in super capacitor for up to 1 hour of data retention, supplemented by a long-life battery.

• Industrial Durability: Engineered for reliable operation in standard industrial control environments.

• Regulatory Compliance: The product line typically conforms to major industrial standards for safety and EMC, though specific certifications should be verified per revision.

• Wide Application Suitability: Its scalable design and communication features suit various automation settings, from discrete to process control.
