NP1L-TMB Overview

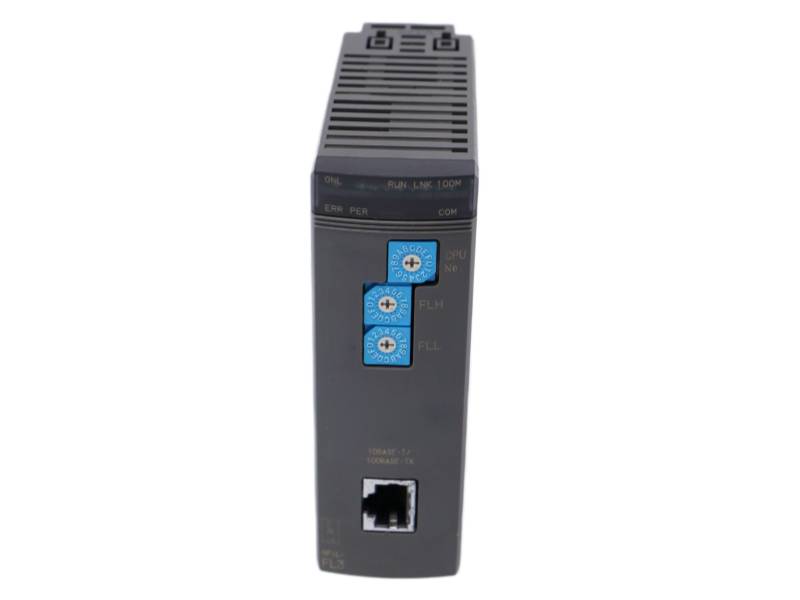

The NP1L-TMB Fuji Electric Device Level Communication Module is a compact interface module for the MICREX-SX SPH series, offering reliable signal transmission with 1500 V isolation and support for 0.2–2.5 mm² wiring.

Technical Data Summary

•  Product Type: Interface module for MICREX-SX SPH series PLC systems.

• Electrical Ratings: 2 A current per terminal at 30 °C; 250 V AC voltage rating.

• Isolation: 1500 V AC isolation for reliable signal protection.

• Terminal Capacity: Supports wire sizes from 0.2 to 2.5 mm².

• Environmental: Operating temp 0 to +55 °C; storage temp -20 to +75 °C; 5-95% humidity.

• Physical: Lightweight 0.15 kg; compact size 3.4 x 9.8 x 10.5 cm.

FAQ

Q1: What is the FUJI NP1L-TMB?

A1: It is an interface module designed for the MICREX-SX SPH series PLC systems.

Q2: What are the electrical ratings for the NP1L-TMB?

A2: It has a current rating of 2 A per terminal at 30 °C and a voltage rating of 250 V AC.

Q3: What is the isolation voltage of this module?

A3: The NP1L-TMB provides 1500 V AC isolation for reliable signal protection.

Q4: What wire sizes can be connected to the NP1L-TMB?

A4: The terminal capacity supports wire sizes from 0.2 to 2.5 mm².

Q5: What are the operating temperature limits for this module?

A5: It operates between 0 and +55 °C, with a storage range of -20 to +75 °C.
