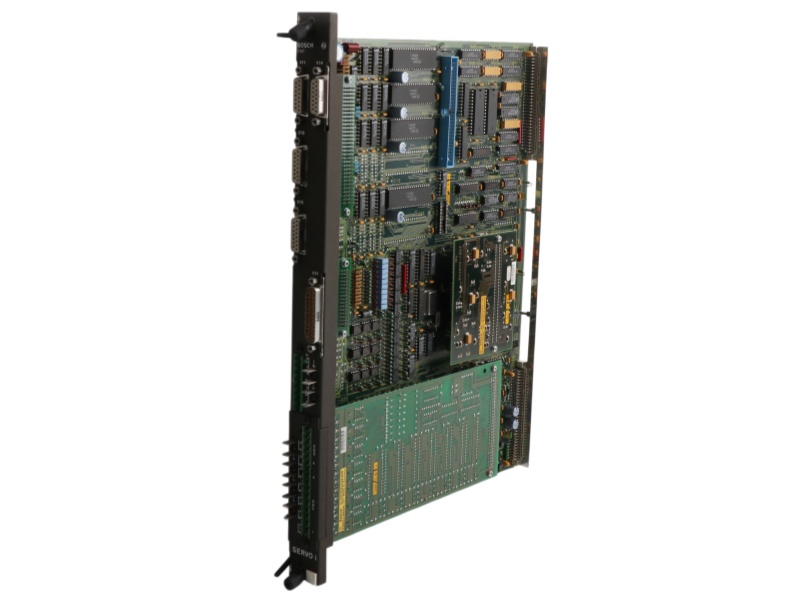

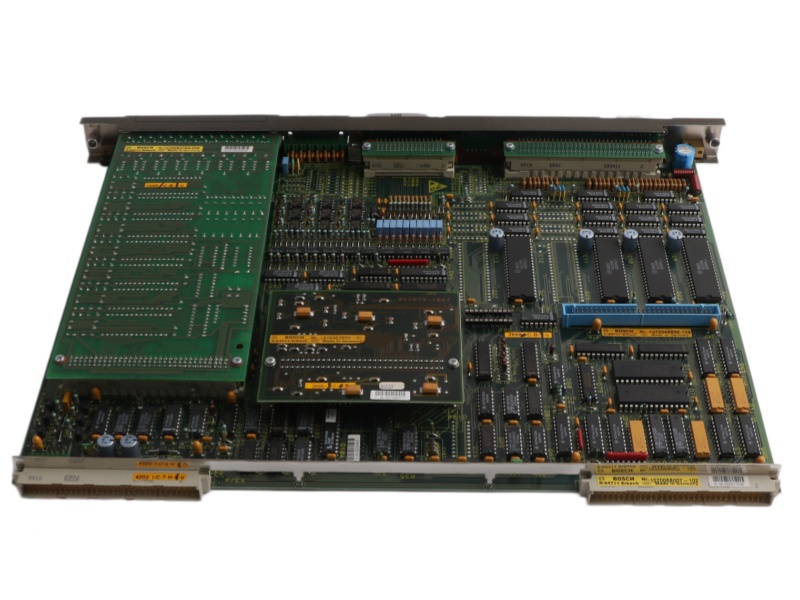

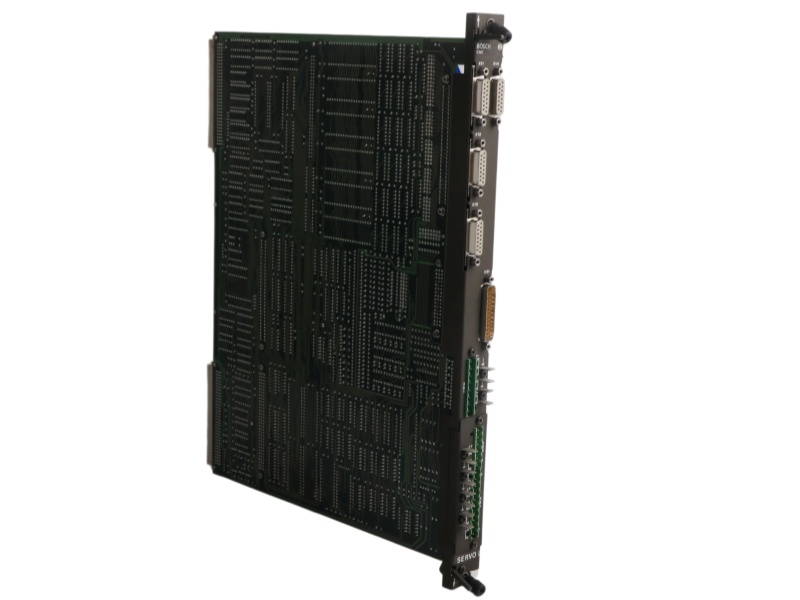

D-64711 DC102/MK 1070081815-101 Overview

The Profibus Module D-64711 DC102/MK 1070081815-101 is a Profibus module. It is a control card for ServoDyn D inverters, requiring a 24V DC power supply for operation.

Technical Data Summary

Product Type: Profibus module / control card for ServoDyn D inverter systems.

Power Supply: 24V DC input with M6.3 A current rating for reliable operation.

Mounting: Designed for vertical installation in IP54 switch cabinets with terminals facing downward.

Cooling Requirements: Requires 100 mm minimum clearance above and below for proper bottom-to-top airflow.

Temperature Range: Operates in 0°C to +55°C ambient; derating required above 45°C.

Dimensions: Component depth of 270 mm or 290 mm depending on mechanical configuration.

FAQ

Q1: What type of device is this product?

A1: It is a Profibus module and control card for ServoDyn D inverter systems.

Q2: What are the power supply requirements?

A2: It requires a 24V DC input with M6.3 A current rating.

Q3: What are the mounting requirements for this module?

A3: It must be mounted vertically in an IP54 switch cabinet with terminals facing downward.

Q4: What are the cooling and clearance requirements?

A4: Minimum 100 mm clearance above and below is required for bottom-to-top airflow; no minimum lateral clearance needed.

Q5: What is the operating temperature range?

A5: It operates in 0°C to +55°C ambient temperature, with derating required above 45°C.
