6K2-NK 1061926 Overview

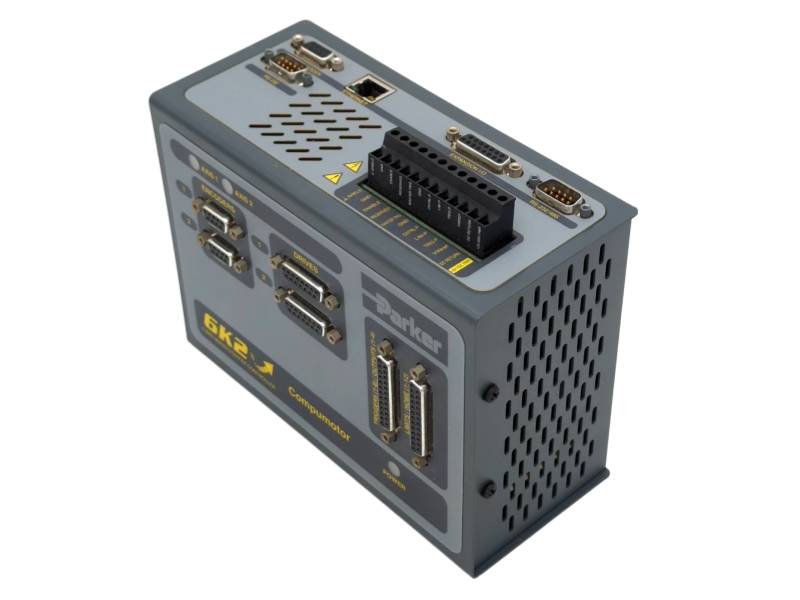

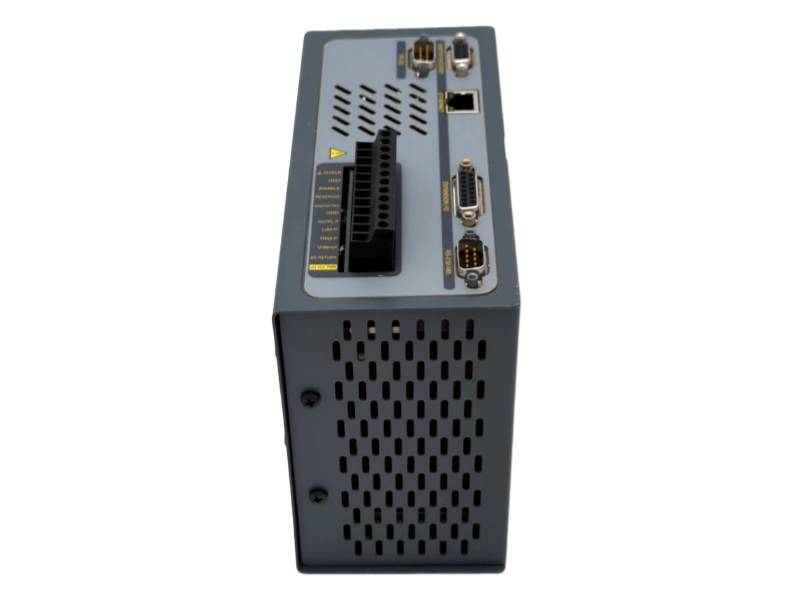

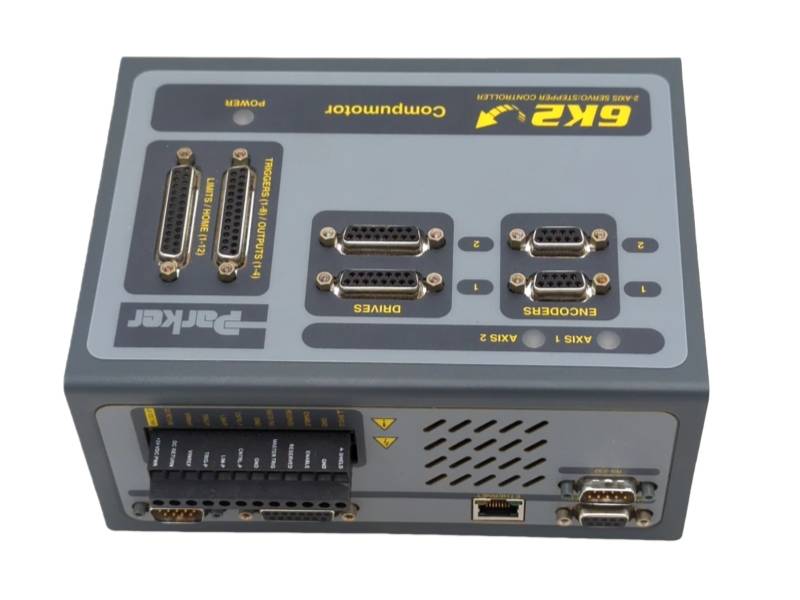

The Parker Servo Controller 6K2-NK 1061926 is a multi-axis servo/stepper controller supporting ±10V or Step & Direction commands. It operates on 24VDC with fast 62.5µs servo updates and offers RS-232/485, Ethernet communication, and extensive onboard I/O.

Features and Benefits of Parker 6K2-NK 1061926

High-Speed Performance: Provides servo update times as fast as 62.5 µs per axis for responsive motion control.

Multi-Protocol Compatibility: Offers both RS-232/485 serial and Ethernet 10Base-T interfaces for versatile connectivity.

Broad I/O Flexibility: Features extensive onboard limit/trigger inputs and outputs, supporting both sourcing and sinking configurations.

Dual Command Modes: Supports ±10V analog and Step & Direction outputs, compatible with servo and stepper drives.

Robust Environmental Tolerance: Operates reliably from 0-50°C in 0-95% humidity for industrial use.

Compact Design: With dimensions of 19.1x15.9x10.2 cm and 1.7 kg weight, it saves space in control cabinets.

FAQ

Q1: What power supply does the 6K2-NK controller require?

A1: It operates on 24 VDC (±10%) with a maximum current draw of 2A, depending on the I/O configuration.

Q2: What communication interfaces are available?

A2: It supports both RS-232/485 serial communication and 10Base-T Ethernet connectivity.

Q3: What is its motion control performance?

A3: It offers high-speed servo updates of 62.5 µs per axis and supports both ±10V analog and Step & Direction command outputs.

Q4: How many units can be connected in a network?

A4: Up to 99 units can be daisy-chained via RS-485, with individual addresses set using the ADDR command.

Q5: What environmental conditions can it withstand?

A5: It operates in temperatures from 0-50°C and humidity up to 95% non-condensing for reliable industrial use.
