KL2101X1-BB1 12P8775 SE6504 Overview

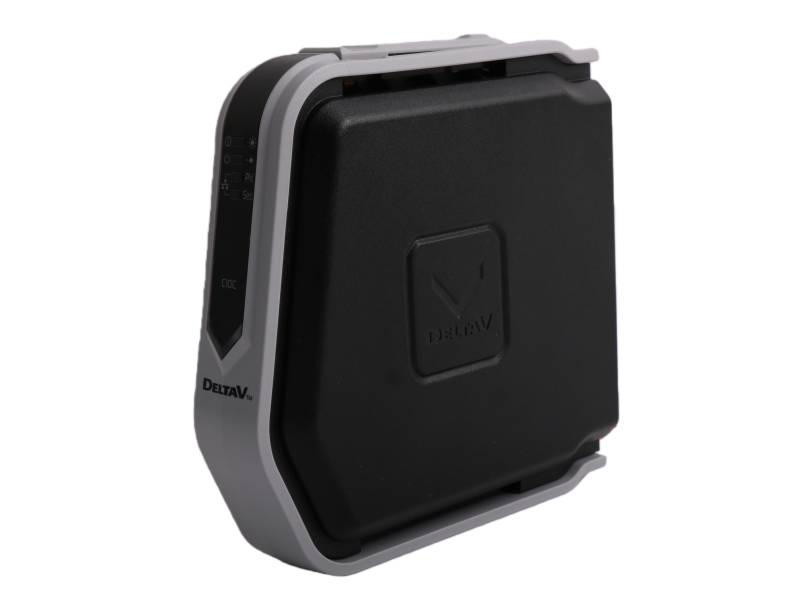

The KL2101X1-BB1 SE6504 CHARM I/O CARD EMERSON is a CHARM I/O Card 2 (CIOC2) for hazardous environments. It features Class I Div 2 and Zone 2 certifications with a wide operating temperature from -40°C to 70°C. This card delivers 6.3VDC output power to support CHARM modules in demanding industrial automation applications.

Environmental Strength

• Extreme Temperature Tolerance: Operates reliably across a wide ambient temperature range from -40°C to +70°C.

• High Shock Resistance: Withstands mechanical shock up to 10g (half-sine wave, 11ms duration) for durability.

• Robust Vibration Performance: Resilient to vibration ranging from 1mm amplitude at 2-13.2Hz to 0.7g at 13.2-150Hz.

• Contaminant Protection: Compliant with ISA-S71.04 Class G3 standards for airborne contaminants.

• Humidity Resilience: Functions in a broad relative humidity range of 5% to 95%, non-condensing.

• Hazardous Area Rated: Features multiple hazardous location certifications including Class I Div 2, Zone 2, and ATEX approvals.

FAQ

Q1: What is the function of the EMERSON KL2101X1-BB1?

A1: It is a CHARM I/O Card 2 (CIOC2) used to connect and manage CHARM I/O modules within the DeltaV Electronic Marshalling system.

Q2: For which hazardous environments is this card certified?

A2: It is certified for Class I Division 2 Groups A-D, Zone 2, AEx/Ex ec IIC Gc, and carries ATEX, IECEx, and FM approvals.

Q3: What are the key environmental operating limits of this card?

A3: It operates from -40°C to +70°C, withstands 10g shock, meets ISA G3 contaminant class, and handles 5-95% non-condensing humidity.

Q4: What are the power specifications for this I/O card?

A4: It requires 24 VDC input at a maximum of 2A and provides a 6.3 VDC output at 3.25A to power connected CHARM modules.

Q5: Can this card be serviced or replaced by users in the field?

A5: No, it contains no user-serviceable parts. It must not be disassembled and can only be replaced with system power off.
