KJ3241X1-BK1 12P2506X062 SE4006P2 Overview

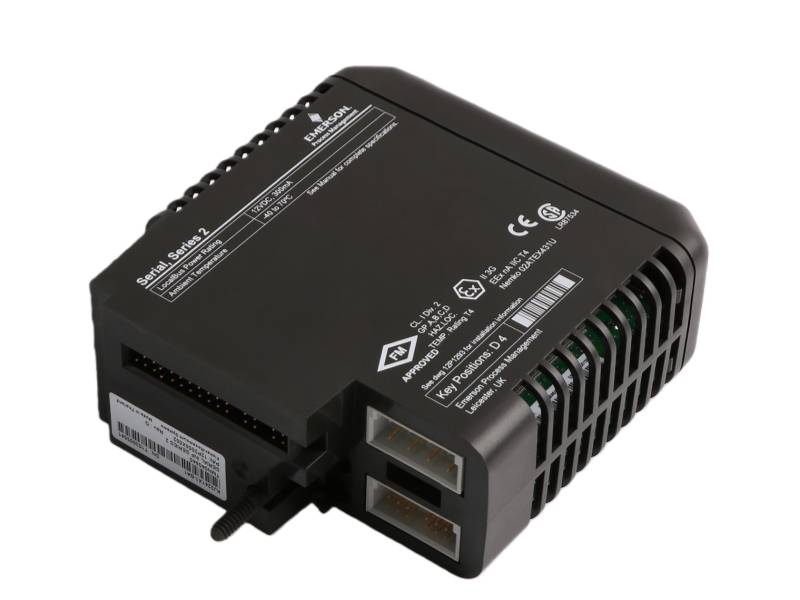

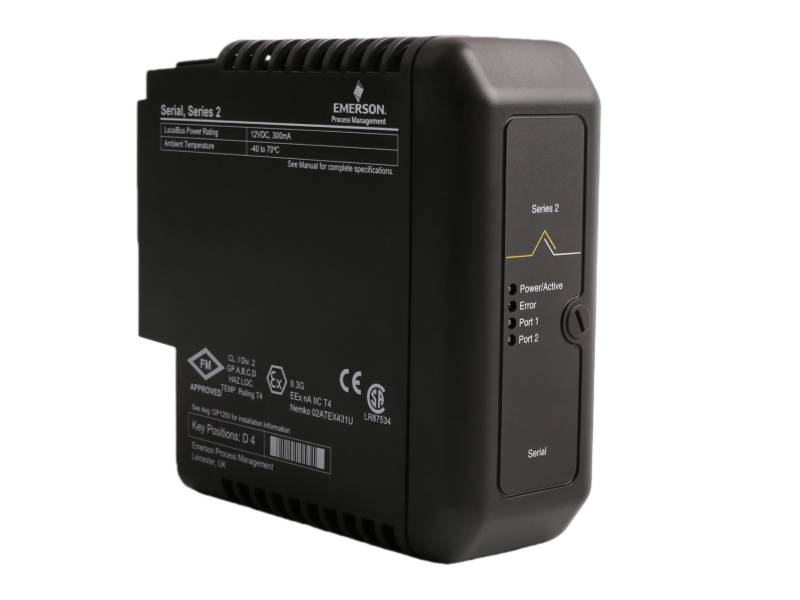

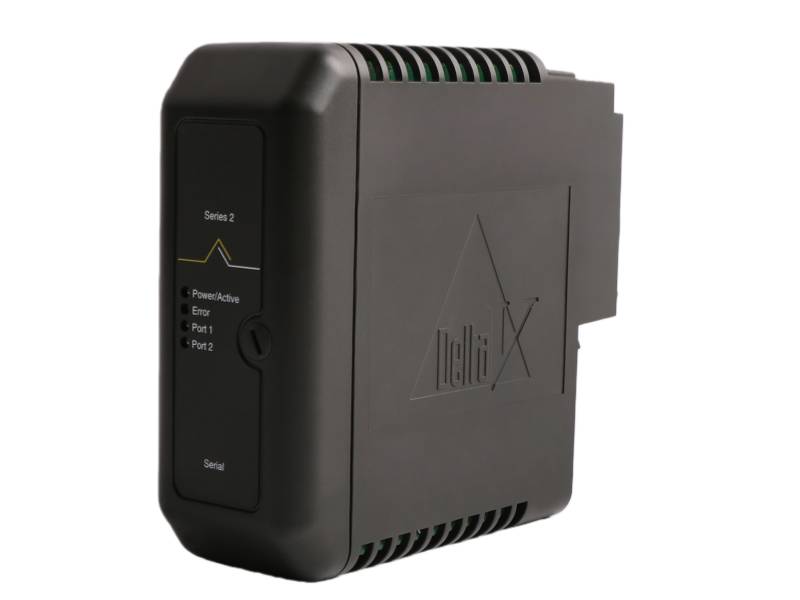

The S-series KJ3241X1-BK1 12P2506X062 SE4006P2 EMERSON is a 2-port serial interface card designed for harsh industrial environments. It operates reliably from -40°C to 70°C and meets IP20 and G3 airborne contaminant standards. This module provides essential serial communication connectivity for the DeltaV S-Series system.

Technical Data Summary

• Model & Function: Full model is EMERSON KJ3241X1-BK1 12P2506X062 SE4006P2. It is a 2-port serial interface card for communication.

• Power Requirement: It operates on a 12 VDC power supply with a current draw of 300 mA.

• Environmental Rating: Designed for harsh conditions with an IP20 rating and compliance with ISA G3 airborne contaminant standards.

• Operating Range: Functions reliably in an ambient temperature range from -40°C to 70°C.

• Robust Construction: Withstands shock up to 10g and vibration from 5-150Hz, ensuring durability in industrial settings.

• Key Identifier: Features a terminal block with key position D4 for proper connection and compatibility within the system.

FAQ

Q1: What is the function of the EMERSON KJ3241X1-BK1 card?

A1: It is a 2-port serial interface card designed for communication within the DeltaV S-Series digital automation system.

Q2: What is the power requirement for this interface card?

A2: It requires a 12 VDC power supply with a current draw of 300 mA.

Q3: What are the key environmental specifications for reliable operation?

A3: It operates in temperatures from -40°C to 70°C, withstands 10g shock, and meets IP20 and ISA G3 contaminant standards.

Q4: How is the terminal block configured for this card?

A4: The terminal block uses key position D4 to ensure correct compatibility and secure connection with the I/O card.

Q5: Is user maintenance or calibration required for this card?

A5: No, it contains no user-serviceable parts, disassembly is prohibited, and calibration is not required.
