KL2101X1-BA1 12P5622 SE6501T01 Overview

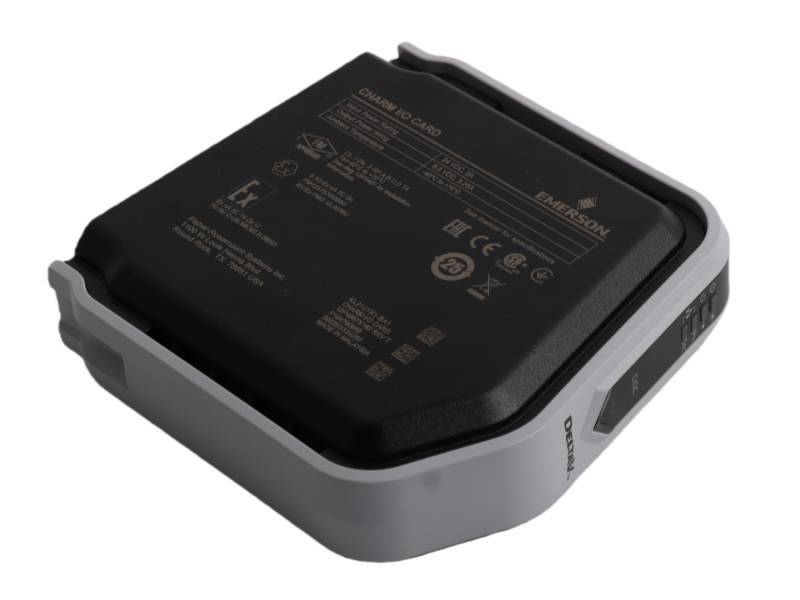

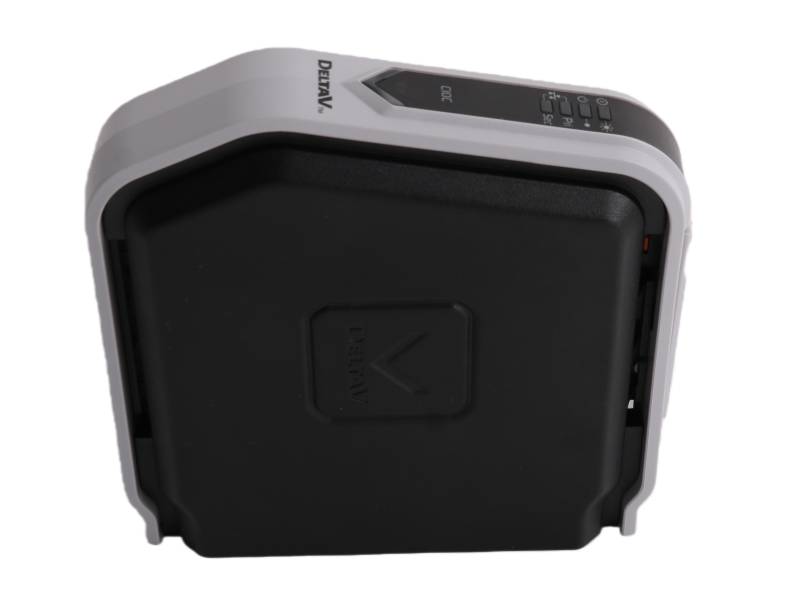

The KL2101X1-BA1 12P5622 SE6501T01 DeltaV Cioc EMERSON Charm I/o Card is a dry contact CHARM I/O card designed for simplicity and flexibility. It integrates seamlessly into the DeltaV Electronic Marshalling system, supporting easy channel assignment and hot swap capabilities. This solution reduces installation costs and enhances system scalability.

Features and Benefits

• Primary Function: This is a dry contact CHARM I/O card (CIOC) specifically designed for use in the DeltaV Electronic Marshalling system.

• Core Benefit: It provides unprecedented installation flexibility and ease of use, reducing overall system costs and complexity.

• System Architecture: The card supports up to 96 individually configurable channels per card and offers complete communication redundancy.

• Operational Efficiency: It features automatic channel sensing and configuration, as well as a self-keying system to prevent incorrect CHARM insertion.

• Deployment Flexibility: I/O can be installed anywhere—from central cabinets to remote field junction boxes—connected via standard Ethernet.

• Project Advantage: Enables wiring to proceed independently of control logic development, accommodating late design changes without physical rewiring.

FAQ

Q1: What type of I/O card is the EMERSON KL2101X1-BA1?

A1: It is a dry contact CHARM I/O card (CIOC) designed for use in the DeltaV Electronic Marshalling system.

Q2: What is the main benefit of using this CHARM I/O card?

A2: It provides exceptional system design and installation flexibility, reducing wiring costs and allowing I/O to be placed anywhere in the control network.

Q3: How many I/O channels does this card support?

A3: It supports up to 96 individually configurable I/O channels per card.

Q4: How does this card prevent incorrect installation of CHARM modules?

A4: It utilizes a self-keying system that automatically sets a channel for a specific CHARM type, preventing insertion into the wrong terminal block.

Q5: Can the wiring and the control system design be done separately when using this card?

A5: Yes, it allows the wiring installation to proceed independently of the control strategy development, as channel assignment is done electronically.
