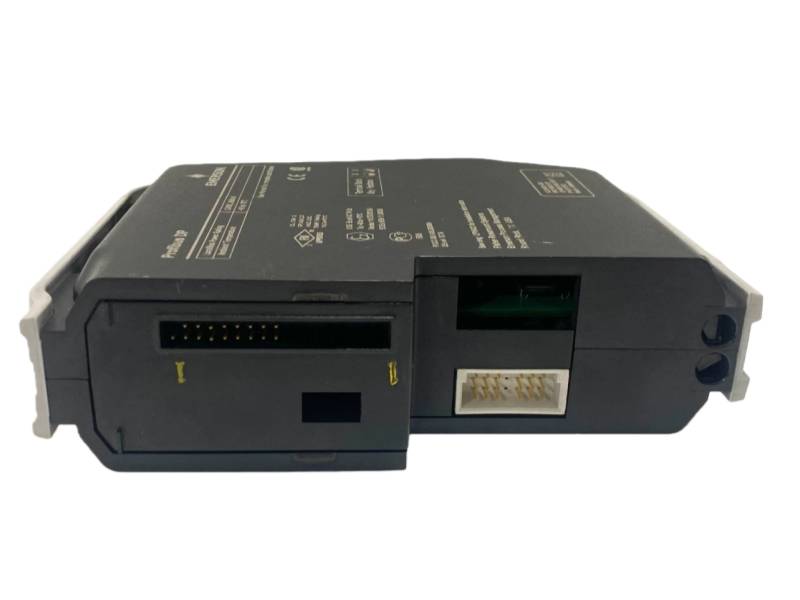

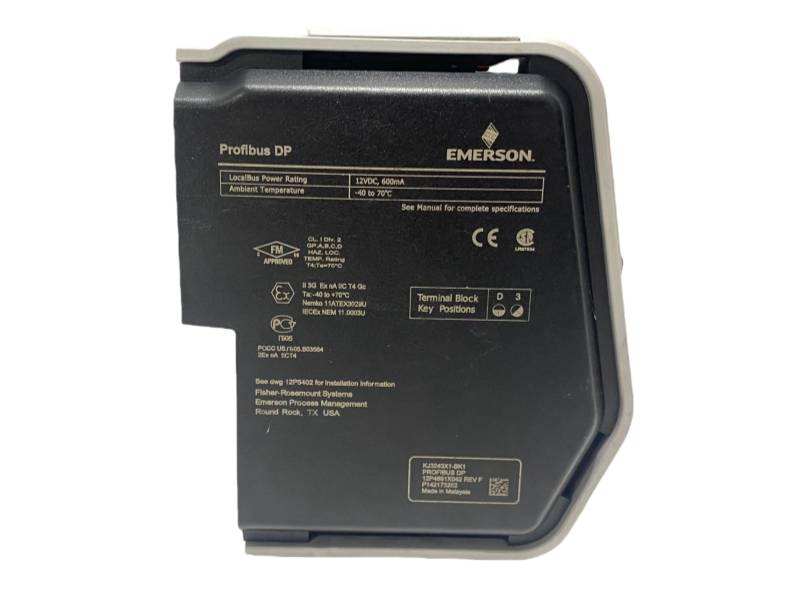

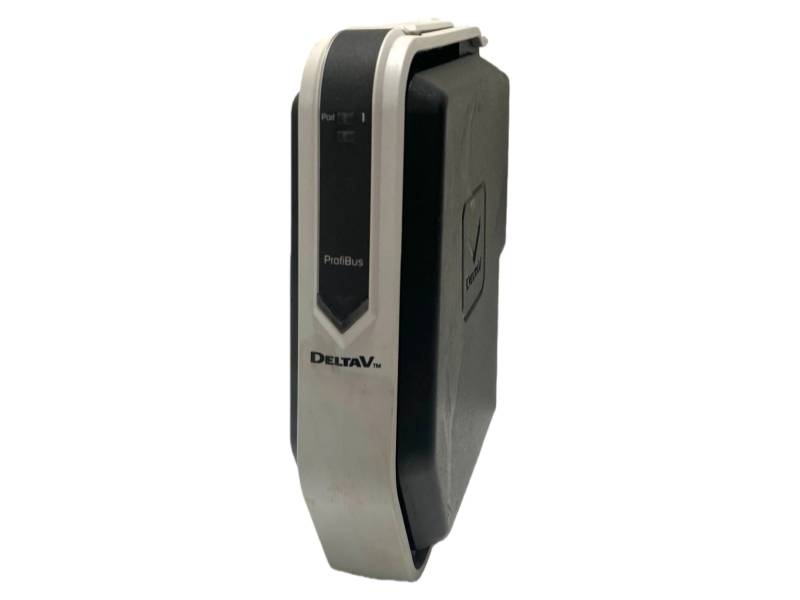

KJ3243X1-BK1 12P4691 SE4022 Overview

The KJ3243X1-BK1 12P4691 SE4022 EMERSON  PROFIBUS DP INTERFACE is a PROFIBUS DP interface card for the S-Series traditional I/O subsystem. It provides a robust, modular solution for harsh field installations. This card enables seamless integration with PROFIBUS DP networks, supporting online expansion and maintenance without disrupting field wiring.

Features and Benefits

• Primary Function: It is a PROFIBUS DP interface card for the DeltaV S-Series traditional I/O subsystem.

• Network Integration: Enables seamless communication between the DeltaV system and PROFIBUS DP field networks.

• Modular Design: Allows online expansion by supporting up to 64 I/O interfaces per controller, offering flexible system scaling.

• Tool-Free Installation: Features a snap-in retention system for fast, secure mounting onto T-DIN rails without tools.

• Ease of Maintenance: I/O cards can be easily removed and replaced without disconnecting any field wiring from the terminal blocks.

• Error Prevention: Uses a physical keying system on terminal blocks to prevent incorrect I/O card insertion.

FAQ

Q1: What is the EMERSON KJ3243X1-BK1?

A1: It is a PROFIBUS DP interface card designed for the DeltaV S-Series traditional I/O subsystem.

Q2: What is the main benefit of this modular I/O subsystem?

A2: It provides great installation flexibility, supports online expansion, and is designed for harsh environmental conditions.

Q3: How many I/O interfaces can be supported by this system?

A3: Each controller can support up to eight I/O carriers, providing a robust bus for up to 64 I/O interfaces.

Q4: How does the installation and maintenance process work?

A4: All carriers snap onto T-DIN rails, and interfaces snap into I/O slots without tools. I/O cards can be easily replaced without disturbing field wiring.

Q5: How does the system prevent incorrect installation?

A5: It uses a physical keying system on terminal blocks to ensure that only the correct I/O card can be plugged in, preventing errors.
