Who is this safety relay designed for, and in what scenarios is it suitable

The ROCKWELL SLC 500 440R-N23114 is engineered for industrial settings that demand robust safety monitoring. It is ideally suited for dual-channel safety devices like emergency stop buttons and safety gate switches, offering cross-fault detection to monitor both inputs and identify short circuits for enhanced protection. In terms of application scenarios, its coverage is extremely broad. Whether it's drilling and production equipment in oil wells and gas fields, heavy machinery in mines, metal smelting and rolling production lines, or reaction vessels in chemical plants and rotary kilns in cement plants, it can be found in any industrial location where safety risks exist. Furthermore, this safety relay plays an irreplaceable role in material handling systems (such as conveyor belts), pulp and paper machinery, wood processing equipment, marine power systems, water and wastewater treatment facilities, and even food and beverage production lines and automobile manufacturing plants. It can control a wide variety of applications, including cranes, extruders, winches, winding machines, conveyors, mixers, compressors, centrifuges, test benches, elevators, and various pumps and fans.

When does it choose to intervene, and what key characteristics enable its safety functions

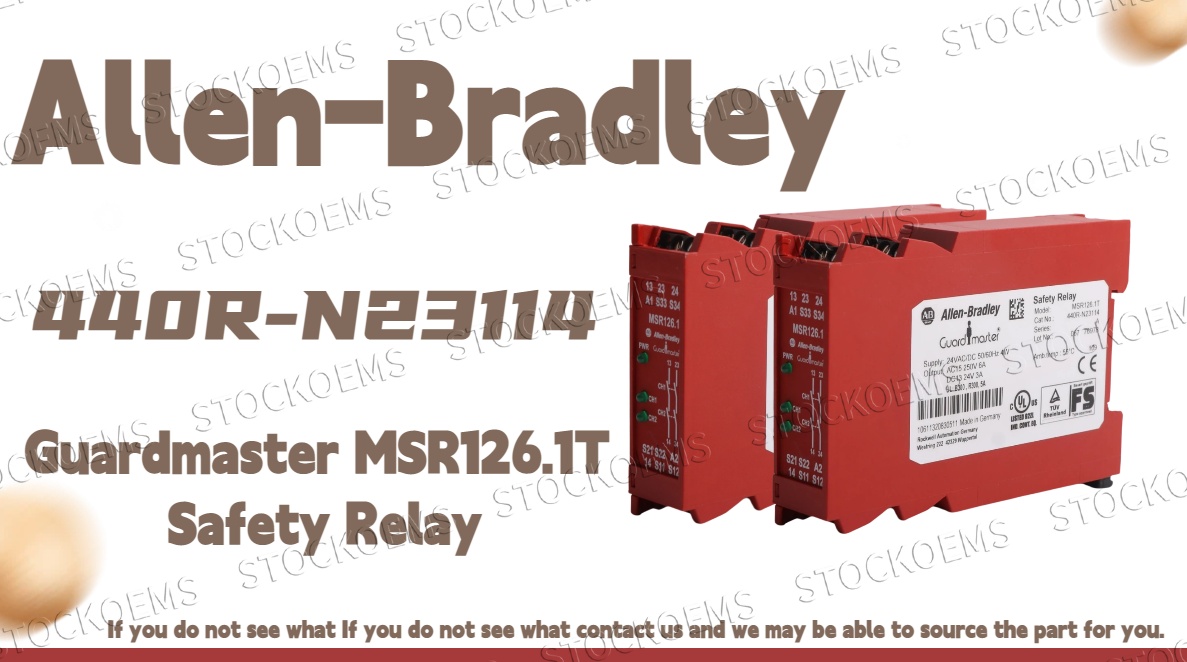

The core of a safety relay lies in its response speed and the reliability of its fault handling. The Guardmaster MSR126.1T Safety Relay AB 440R-N23114 reacts rapidly in the event of a hazard. According to its specifications, its response time is only 15 milliseconds, meaning that once the safety input signal is interrupted, the output contacts actuate almost immediately, cutting off the dangerous power source. Simultaneously, its recovery time is approximately 100 milliseconds, ensuring the system can restart smoothly after the fault is cleared.

Its key features are primarily reflected in the following aspects:

First, it possesses extremely high safety level certification. It meets the PLe safety performance level of EN ISO 13849-1 and the SIL 3 safety integrity level of IEC 61508, and complies with Category 4 requirements of EN 954-1, which is one of the highest levels currently available in the industrial safety field.

Second, its internal design is ingenious. It has two normally open (N.O.) safety contacts, which employ an independent and redundant internal structure design. The brilliance of this design lies in the fact that even if one contact fails, the other contact still ensures that the safety function remains active, greatly guaranteeing the reliable execution of safety commands.

Finally, it supports flexible reset methods. Users can choose between automatic or manual reset modes according to their actual application needs. Automatic/manual reset can be achieved simply by connecting a jumper between its S33-S34 terminals, without complex programming.

How exactly does it work, and what are the unique aspects of its working principle and technical architecture

The 440R-N23114 Allen Bradley Single-Function Safety Relays operates based on dual-channel input monitoring and internal logic judgment. When both connected dual-channel safety devices (such as emergency stop buttons) are closed, the two safety contacts (K1 and K2) inside the relay will engage, allowing the machine to run. Once either channel detects an open-circuit signal (e.g., an emergency stop button is pressed), the relay immediately cuts off the power to the internal redundant contacts, thereby disconnecting the load circuit and stopping the machine.

The advantages of its technical architecture are:

First, cross-fault monitoring function. This is the core technology of the dual-channel safety system. It continuously monitors the line status between the two input channels. If a short circuit or short-to-ground fault is detected between the channels, the relay will automatically enter a safe state even if the emergency stop button is not pressed, preventing safety function failure due to line faults. Second, high-density installation design. Despite its powerful functionality, its enclosure width is only 22.5 mm, saving significant control cabinet space. It supports 35 mm DIN rail mounting and features fixed screw terminals for convenient and reliable wiring. Third, electrical life and interference immunity. It boasts a proven electrical life under various load conditions; for example, it achieves over 100,000 cycles under a 250V AC/6A resistive load. Furthermore, its design meets the vibration (10...55Hz) and shock (10G) requirements of industrial environments, ensuring stable operation under harsh conditions.
