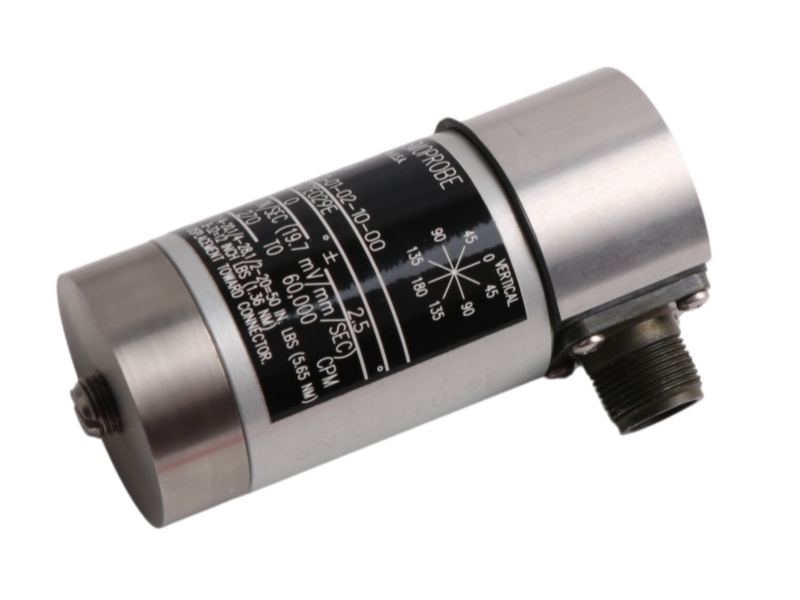

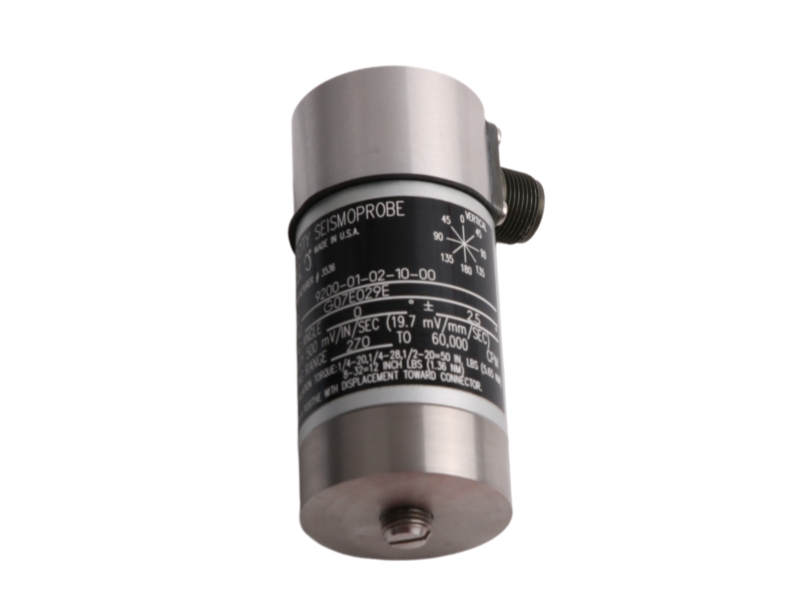

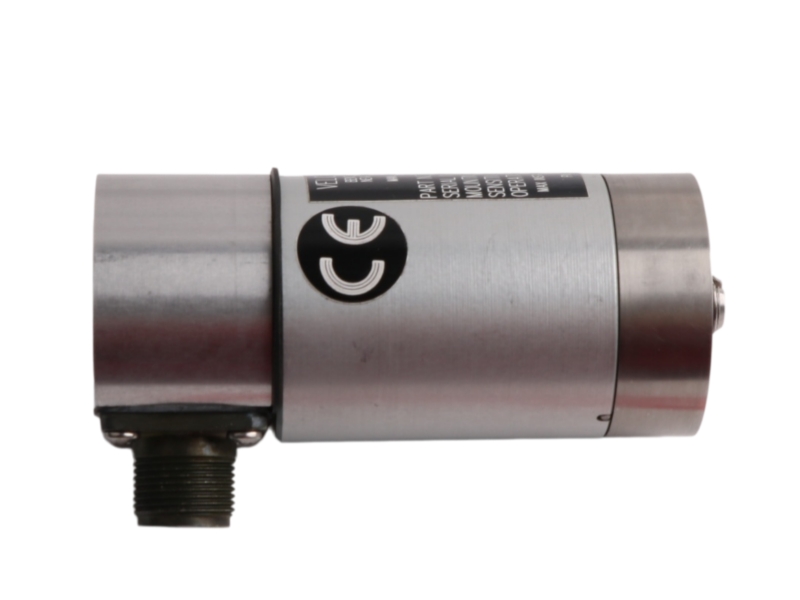

Bently Nevada 9200-01-02-02-00 is a two-wire moving-coil Seismoprobe velocity transducer for absolute bearing-housing, casing and structural vibration measurement. Its official order code specifies a 0-degree mounting orientation with ±2.5-degree tolerance, 4.5 Hz minimum operating frequency, side-mounted connector, circular base with a 1/4-28 UNF stud and no agency approval option. The sensor produces a voltage output proportional to vibration velocity and requires no external power. Before replacement, verify calibration orientation, mounting stud, connector direction, cable type, monitor input, polarity, termination load, approval requirements and readable label photographs rather than relying on the 9200 family name alone.
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Complete Part Number | 9200-01-02-02-00 |
| Product Type | Two-wire Seismoprobe velocity transducer |
| Measurement | Absolute bearing-housing, casing or structural vibration |
| Technology | Moving-coil, self-powered two-wire transducer |
| Mounting Angle Option | 0° ±2.5° |
| Minimum Operating Frequency | 4.5 Hz (270 cpm) |
| Connector/Cable Option | Side mount, no integral cable |
| Mounting Base | Circular base with 1/4-28 UNF stud |
| Agency Approval Option | No approvals |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Frequency Response | 4.5 Hz to 1 kHz, +0/-3 dB typical |
| Operating and Storage Temperature | -29°C to +121°C (-20°F to +250°F) |
| Dynamic Operating Range | 2.54 mm (0.100 in) peak-to-peak maximum displacement |
| Coil Resistance | 1.25 kΩ ±5% |
| Typical Weight | 300 g (10.5 oz) |
| Country of Origin | USA |
Frequency response begins at the minimum operating frequency selected by the complete order code.
| System Fit | Continuous or periodic vibration measurement with compatible monitoring or diagnostic instruments. |
| Typical Applications | Absolute bearing-housing, casing and structural vibration on rotating machinery. |
| Maintenance Use | Replacement where calibration angle, low-frequency response, connector and mounting base match the installed point. |
The current official 9200 and 74712 datasheet confirms this complete 9200 configuration but does not provide a lifecycle term for 9200-01-02-02-00. This page therefore does not classify the transducer as Active, Obsolete or Discontinued.
It specifies a 0-degree mounting orientation with ±2.5-degree tolerance and a 4.5 Hz minimum operating frequency.
It uses the side-mount connector option and does not include an integral cable.
The complete code specifies a circular base with a 1/4-28 UNF stud.
No. Its moving-coil design produces an output directly proportional to vibration velocity.
No explicit lifecycle term for this complete order code was confirmed in current official documentation.
Yes. Request clear views of the complete sensor, label, stud, side connector and packaging.
